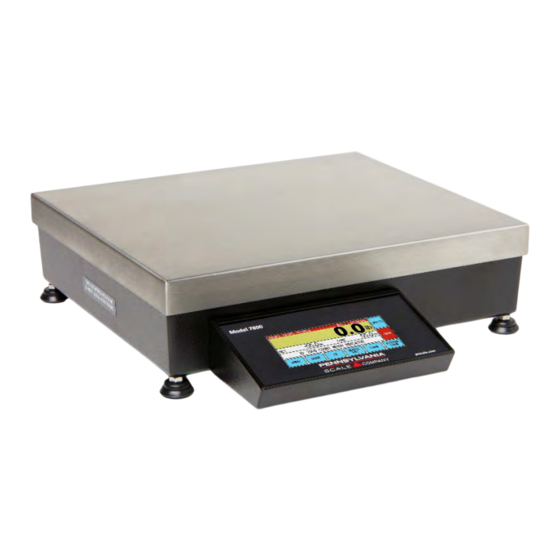

7800 Touchscreen Count Weigh Scale
and Indicator Technical Manual
665 North Reservoir Street
Lancaster PA 17602
P: 800.233.0473 717.295.6935
techsupport@pascale.com
Manual 7800TM2023REV3.24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pennsylvania Scale Company 7800

  • Page 1 7800 Touchscreen Count Weigh Scale and Indicator Technical Manual 665 North Reservoir Street Lancaster PA 17602 P: 800.233.0473 717.295.6935 techsupport@pascale.com Manual 7800TM2023REV3.24...
  • Page 2: Table Of Contents

    7800 Technical Manual Page 2 of 102 Table of Contents Unpacking and Setup Specifications Connections Updating The Firmware 6 – 8 Saving and Uploading Scale Parameters and Database to Micro SD Card 9 – 12 Operation Guide Weighing, Counting, Check Weighing and Setpoint Relay Modes 13 –...
  • Page 3: Unpacking And Setup

    7800 Technical Manual Page 3 of 102 Unpacking and Startup Unpack the Scale DO NOT LIFT SCALE BY THE TOP • SPIDER OR SUB PLATFORM! Remove the molded foam top from • the carton. On 2 lb. and 5 lb. capacity scales the platform is packaged on top of this foam.
  • Page 4: Specifications

    7800 Technical Manual Page 4 of 102 SPECIFICATIONS • Power AC line voltages 115/230 VAC, 50/60 Hz (Specify when ordering) • Power Consumption 0.25A at 115 VAC, 0.13A at 230 VAC • Circuit Protection RFI, EMI, ESD Protection ADC shielded •...
  • Page 5: Connections

    7800 Technical Manual Page 5 of 102 Connections: INTERNAL LOAD CELL AND REMOTE BASE CONNECTIONS RS‑232 PIN ASSIGNMENTS AND IMPLEMENTED FUNCTIONS Connection to the Serial Port is made via a DB‑9 female connector found in the access area under the scale. Internal Instrument connection is on the main Board, TB2 1 through 7...
  • Page 6 Page 6 of 102 Scale Firmware Update The 7800 firmware may be updated in the field for firmware versions 1.20.00 and above. You can determine the firmware version by pressing the MENU button from any operating mode, then INFO which will display the screen below: There are two sperate firmware files used by the system TST and HOST, circled in the above.
  • Page 7 7800 Technical Manual Page 7 of 102 7800 Indicator: Remove the Backplate and find the Micro SD Extention cable. Insert the SD Cable withupdated firmware into the port. Ensure the SD Card is inserted all the way and “clicks” into place...
  • Page 8 After the file has been processed, the LCD TFT flash memory is erased and this process takes less than 20s. The bargraph will not show movement for this time. When the 7800 is writing the firmware to the internal flash memory, the bargraph will show the progress.
  • Page 9 7800 Technical Manual Page 9 of 102 Scale Settings; Saving to and Loading From the Micro SD Card All settings can be saved to and loaded from a Micro SD card. This includes all settings but not the Mv/V used for calibration...
  • Page 10 7800 Technical Manual Page 10 of 102 To Save Scale Parameters select SAVE PARM TO FILE Save to File Menu appears. Select NEW FILE and enter a filename Parameters are saved to the SD Card To Load Scale Parameters Select READ PARM FROM FILE. In the OPEN FILE menu use the UP/DOWN Keys to Highlight the file to load then select OPEN Saved Parameters are loaded to the scale memory.
  • Page 11 Database; Saving to and Loading From the Micro SD Card The 7800 Database can be saved to or loaded from the Micro SD Card. To Access insert a micro SD card then go to MENU and press and hold for 4 seconds the ID DATABASE button. This will open the...
  • Page 12 7800 Technical Manual Page 12 of 102 You many import 1 entry at time by using the OVERWRITE ONCE and SKIP or import all database entries selecting OVERWRITE ALL. When complete press the EXIT button to return to the main menu.
  • Page 13: Operation Guide

    Page 13 of 102 Operation Guide The 7800 Touchscreen count/weigh scale and indicator uses a windows type operating system allowing the user to select the operational mode which only has the scale data and function buttons required for that operation. Use from any of the main operating displays use the MODE button to cycle through the available modes windows that are enabled.
  • Page 14 7800 Technical Manual Page 14 of 102 Function Buttons Scale Data Displayed Operation Performed Available Primary Display Field GROSS WEIGHT Or Access calibration and MENU GROSS/NET configuration menus Configurable in Metrological Settings, parameter 101 Main Weight Display Second Display Field...
  • Page 15 7800 Technical Manual Page 15 of 102 Counting Mode, ID Function Enabled Counting Mode, ID Function Disabled Counting Mode, ID Function Enabled & Capacity Displayed Scale Data Displayed Function Buttons Available Operation Performed Primary Display Field Access calibration and MENU...
  • Page 16 7800 Technical Manual Page 16 of 102 Checkweigh Mode, ID Function Enabled Checkweigh Mode, ID Function Disabled Checkweigh Mode, ID Function Enabled & Capacity Displayed Scale Data Displayed Function Buttons Available Operation Performed Primary Display Field Access calibration and GROSS WEIGHT Or GROSS/NET...
  • Page 17 7800 Technical Manual Page 17 of 102 Set Point/Relay Mode, ID Function Enabled Set Point/Relay Mode, ID Function Disabled Set Point/Relay Mode, ID Function Enabled & Capacity Displayed Scale Data Displayed Function Buttons Available Operation Performed Primary Display Field Access calibration and...
  • Page 18 7800 Technical Manual Page 18 of 102 To Count an item using SAMPLE SET and ID DATABASE off 1 Step Counting In Counting Modes Set PARM 56 Two-SW APW SAMPLE To NO If using a container to count parts into place this empty container on the scale Use the MODE button to cycle through the counting mode window Select the SAMPLE SET button to enter piece weight calculation Window.
  • Page 19 7800 Technical Manual Page 19 of 102 Wait for the system to tare platform then prompt to add sample Place the entire sample quantity ALL AT ONCE on the scale piece weight is calculated and Counting Mode Window opens. Place any additional items to be counted on the scale platform. Repeat the above steps for different items to be counted.
  • Page 20 7800 Technical Manual Page 20 of 102 2 Step Counting 2 Step Counting In Counting Modes Set PARM 56 Two-SW APW SAMPLE To YES If using a container to count parts into place this empty container on the scale Use the MODE button to cycle through the counting mode window Select the SAMPLE SET button to enter the piece weight calculation Window.
  • Page 21 7800 Technical Manual Page 21 of 102 Wait for the system to tare platform then prompt to add sample Place the entire sample quantity on the scale. When complete select the ACCEPT COUNT button. Piece weight is calculated, and Counting Mode Window opens.
  • Page 22: Using The Id Database

    Page 22 of 102 Using The Database The 7800 has a built-in database to store and recall 750 alphanumeric ID’s, Descriptions, up to 3 User Defined and labeled custom data fields, Piece Weight, Tare Weight and Checkweigh or setpoint Target weights or counts.
  • Page 23 7800 Technical Manual Page 23 of 102 When the APW (Piece Weight), Database is enabled (See ID Database Menu on Pages 26 - 28) Press the ID button and the scale will prompt for: Select Search APW ID to recall and ID from the database.
  • Page 24 7800 Technical Manual Page 24 of 102 Sample Set Perform the sample process to establish piece weight, or if in ID DATABASE parameter 16.1 APW AQUIRE is set to manual enter the Piece Weight value. When complete it will return to the Mode when the ID button was pressed.
  • Page 25 7800 Technical Manual Page 25 of 102 When the APW (Piece Weight), SETPOINT and TARE Database are enabled Press the ID button and the scale will prompt for: Select Search APW ID to recall and ID from the database. Select ACQUIRE APW W/O ID to perform a counting function without saving or recall from the database Select ENTER APW ID to enter a new ID into the database.
  • Page 26 7800 Technical Manual Page 26 of 102 The above example is using counting this can also be weight if weight is selected in SETPOINT CONFIGURATION, Parameter 8.01 Source When complete it will return to the Mode when the ID button was pressed.
  • Page 27 7800 Technical Manual Page 27 of 102 When the APW (Piece Weight), SETPOINT, TARE Database and all three Custom Defined Data Fields are enabled (See ID Database Menu on Pages 28 - 29) Press the ID button and the scale will prompt for: Select Search APW ID to recall and ID from the database.
  • Page 28 7800 Technical Manual Page 28 of 102 The 7800 will then prompt for entry of the Custom Data Fields that are enabled: When complete it will return to the Mode when the ID button was pressed. These values can be used for output to a printer, data collection or third-party software and are stored in the database.
  • Page 29: Weighing Settings

    7800 Technical Manual Page 29 of 102 Configuration of Weighing Settings From any of the main operating screens: Select the MENU button In the main menu select the METROLOGICAL SETTINGS button Enter Password if prompted. Default password is 0000 For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 30 7800 Technical Manual Page 30 of 102 To configure or check the weight configuration of the system select CONFIGURE BASE 1 (Or BASE 2 if option installed) This will open the weigh configuration menu. Visible on page 1: Use the DOWN arrow keys to scroll down for the settings visible on page 2:...
  • Page 31 7800 Technical Manual Page 31 of 102 Configuration of Weighing Settings Menu PARAMETER NAME VALUE/SELECTIONS UNIT (PARM) SCALE CAPACITY Sets the scale capacity. • Select EDIT and enter Scale Capacity in • Primary Units, 1 – 999,999 DISPLAY Digital filtering setting the values represent •...
  • Page 32 7800 Technical Manual Page 32 of 102 PARAMETER VALUE/SELECTIONS NAME UNIT (PARM) 31.3 TERTIARY UNITS Tertiary unit of measure TERTIARY • Available selections: lb., kg, g, ozt, lbt, grn, • dwt, oz, crt, ozf, ml, l, tons, and lb/oz Select the EDIT button to configure.
  • Page 33 7800 Technical Manual Page 33 of 102 PARAMETER NAME VALUE/SELECTIONS UNIT (PARM) MAIN Selects the weigh value to display in • WEIGHT primary window Available Selections: Gross Only, Net Only, DISPLAY • G/N Select Select the EDIT button to cycle through •...
  • Page 34: Calibration

    7800 Technical Manual Page 34 of 102 Calibration Procedure From any of the main operating screens: Select the MENU button In the main menu select the METROLIGICAL SETTINGS button Enter Password if prompted. Default password in 0000 To calibrate the system select CALIBRATE BASE 1 (Or BASE 2 if option installed)
  • Page 35 7800 Technical Manual Page 35 of 102 Zero Calibration, with no weight or items on the weighbridge select the ZERO button Place a known calibration weight on the scale to perform span calibration point 1. In this example a 25 lb. weight is used.
  • Page 36 7800 Technical Manual Page 36 of 102 Select the SET CAL POINT and key in the calibration weigh value (25 lb. in this example) Place a known calibration weight on the scale to perform span calibration point 2. In this example a 50 lb.
  • Page 37 7800 Technical Manual Page 37 of 102 At any point in the calibration process all calibration points can be viewed with mV/V and weights used by selecting CAL INFO When Calibration is complete select SAVE & EXIT to save When Zero and Span calibration points are complete the calibration expiration settings appear.
  • Page 38 7800 Technical Manual Page 38 of 102 Configuration of Counting Modes From any of the main operating screens: Select the MENU button In the main menu select the COUNTING MODES Enter Password if prompted. Default password in 0000 For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 39 7800 Technical Manual Page 39 of 102 This will open the counting modes configuration menu. Visible on page 1 Use the DOWN arrow keys to scroll down for the settings visible on page 2: To enter and/or change a setting use the UP/DOWN arrow keys to scroll up or down to setting and select the Blue EDIT button.
  • Page 40: Counting Modes

    7800 Technical Manual Page 40 of 102 Counting Modes Configuration Menu: PARAMETER NAME VALUE/SELECTIONS UNIT (PARM) COUNT ENABLED • Turn the Counting function ON or OFF. • Select the EDIT button to cycle through available selections. ENHANCE APW • Turns ON or OFF the Auto Piece Weight Update function •...
  • Page 41 7800 Technical Manual Page 41 of 102 Configuration of ID Database From any of the main operating screens: Select the MENU button In the main menu select ID DATABASE Enter Password if prompted. Default password in 0000 For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 42 7800 Technical Manual Page 42 of 102 This will open the weigh configuration menu. Default settings are shown below: Visible on page 1 & 2 When the APW, Check Weigh and/or Checkweigh Databases are enabled the settings are shown below: To enter and/or change a setting use the UP/DOWN arrow keys to scroll up or down to setting and select the Blue EDIT button.
  • Page 43: Id Database

    7800 Technical Manual Page 43 of 102 PARAMETER NAME VALUE/SELECTIONS (PARM) 16.4 TARE WEIGHT • Enable or Disable the TARE WEIGHT values storage in 16.5 DATABASE • Selections are OFF or ON • Select the EDIT button to cycle through available selections.
  • Page 44: Communication Protocols (Ethernet Ip)

    7800 Technical Manual Page 44 of 102 Configuration of Communication Protocols From any of the main operating screens: Select the MENU button In the main menu select the COMMUNICATION CONFIGURATION Enter Password if prompted. Default password in 0000 For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 45 7800 Technical Manual Page 45 of 102 Select COM1 or COM 2 This will open the communication configuration menu for the port selected. ADVANCED COMM/NETWORK configuration for Ethernet IP Select the PARAMETERS button and the following screen appears For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 46 Select the INPUT LIST 0->T button and the following screen appears The 7800 Ethernet IP input command list has 17 registers that a data input command token may be assigned. Any input may be assigned a token to any register. The data type can be formatted from the list below: For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 47 RUN SIGNAL position so the E/IP O→T communication functions. This is required for implicit communications. Read/Write float 32-bit Read/Write a float value (on the 7800) for testing. Read/Write a 32-bit integer value (on the 7800) for Read/Write int 32-bit testing.
  • Page 48 Select the OUTPUT LIST T-0-> button and the following screen appears The 7800 Ethernet IP output command list has 17 registers that a data input command token may be assigned. Any input may be assigned a token to any register. The data type can be formatted from the...
  • Page 49 This value should be re-transmitted by the originator first position so the E/IP O→T RUN SIGNAL communication functions. This is required for implicit communications. Read/Write a float value (on the 7800) for Read/Write float 32-bit testing. Read/Write a 32-bit integer value (on the Read/Write int 32-bit 7800) for testing.
  • Page 50 7800 Technical Manual Page 50 of 102 COM 1 Parameters Use the DOWN arrow keys to scroll down for the settings visible on page 2: To enter and/or change a setting use the UP/DOWN arrow keys to scroll up or down to setting and select the Blue EDIT button.
  • Page 51 7800 Technical Manual Page 51 of 102 PARAMETER NAME VALUE/SELECTIONS (PARM) 25.1 DEMAND/AUTO • Select the scale condition for how/when data is transmitted. PRN MODE Available: o UNSTABLE (Output when requested even if scale not stable) o NTEP (Output per NTEP Legal for Trade specification)
  • Page 52 7800 Technical Manual Page 52 of 102 Use the DOWN arrow keys to scroll down for the settings visible on page 2: PARAMETER NAME VALUE/SELECTIONS (PARM) PROTOCOL SELECT • Select the communication protocol • Available: PA SCALE, UPS, FEDEX 1200, FEDEX 9600, CONDEC, TOLEDO, NCI, BARCODE.
  • Page 53 7800 Technical Manual Page 53 of 102 PARAMETER NAME VALUE/SELECTIONS (PARM) 25.2 DEMAND/AUTO • Select the scale condition for how/when data is transmitted. PRN MODE Available: o UNSTABLE (Output when requested even if scale not stable) o NTEP (Output per NTEP Legal for Trade specification)
  • Page 54 7800 Technical Manual Page 54 of 102 7800 communication protocols details. UPS WorldShip Emulation Data 18 bytes, six data with decimal and leading zero blanking Command Description Response Format (cr) (sp)(sp)0.00(sp)lb.(sp)GR(sp)(sp)(cr)(lf)(etx) Carriage Request weight on scale Return Example, with 10.55 lbs. on scale: (sp)10.55(sp)lb.(sp)GR(sp)(sp)(cr)(lf)(etx)
  • Page 55: Data Output

    7800 Technical Manual Page 55 of 102 Condec Emulation Emulates Condec and Rice Lake data output and communication protocols for interface with RLWS remote scoreboard displays Data Output <STX> - Start of text <P> - Polarity <W7.> - 7-digit weight, floating decimal, leading spaces <U>...
  • Page 56 7800 Technical Manual Page 56 of 102 NCI Emulation: Command Description Response Format Sends weight and three-character (lf)XXXXXXX(Unit of Measure)(cr)(lf)(Status status information. Note: lb.-oz is Character)(cr)(etx). Example: 10.135 lbs. on transmitted as oz only. scale transmits: (lf)(sp)10.135lb(cr)(lf)0p0(cr)(etx) If count is displayed, it is transmitted as:...
  • Page 57 7800 Technical Manual Page 57 of 102 Configuration of Data Output From any of the main operating screens: Select the MENU button In the main menu select the DATA OUTPUT CONFIGURATION Enter Password if prompted. Default password in 0000 For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 58 7800 Technical Manual Page 58 of 102 The default DATA OUTPUT is MULTI DATA OUT set to OFF on both Com Ports and below shows the factory default data output: This will output: ID<ID Data><CR><LF> DESCRIPTION<SPACE><Description Data><CR><LF> GROSS<SPACE><Gross Weight Data><SPACE><UOM><<CR><LF>...
  • Page 59 7800 Technical Manual Page 59 of 102 When MULTI DATA OUT is set to ON entering the DATA OUTPUT CONFIG. Opens The Menu Below: STANDARD - Setup up a standard data output, IE: not a Multi Data Out, see the Data Output Set Up Functions section on following pages.
  • Page 60 7800 Technical Manual Page 60 of 102 Use the UP/DOWN arrow keys to scroll to a setting and select EDIT to change the parameter or enter the label. As example: • Set the DATA FORMAT CNT to 4 • Set DATA OUT 1 LABEL to “SHIPPING”...
  • Page 61 7800 Technical Manual Page 61 of 102 Data Output Codes and Functions Menu UP/DOWN ARROWS Select to scroll Up or Down EDIT add or edit the data output slot highlighted from the list of available data output codes/descriptions ENTER CODE add or edit the data output slot using the numeric code value...
  • Page 62 7800 Technical Manual Page 62 of 102 For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 63 7800 Technical Manual Page 63 of 102 The screens above show the list of available data output codes. Use the UP/DOWN arrow keys to scroll to the code needed and use the SELECT button to insert into the data string. You can also use the 60 <SPACE>, 65<CE><LF>...
  • Page 64 7800 Technical Manual Page 64 of 102 Data Output Codes and Functions Menu DESCRIPTION • TIME: hh:mm:ss ap • Current time as set in scale • DATE: mm/dd/yy • Current date as set in scale • UNIT • Current unit of measure on display when data is outputted •...
  • Page 65 7800 Technical Manual Page 65 of 102 DESCRIPTION • Godex Barcode Printer Prologue. This sends the following data to recall and print barcode labels: • ^KF1<CR><LF> • Zebra Barcode Epilog This sends the following data to print the label • E<CR><LF>~P1<CR><LF>...
  • Page 66 7800 Technical Manual Page 66 of 102 DESCRIPTION • PREFIX APW PIECE WEIGHT UNITS • Outputs: PIECES(PIECE WEIGHT VALUE)(CURRENT UNIT OF MEASURE) • PREFIX SAMPLE SIZE • Outputs: SAMPLE SIZE(NUMBER VALUE) • Prefix % Error or Accuracy • PREFIX BASE # •...
  • Page 67 7800 Technical Manual Page 67 of 102 DESCRIPTION • LF Delay 60s. Delay after line feed of 60 seconds • STATUS CHARACTER • Outputs status character to show scale condition • ABO CS • Outputs ABO Checksum for data validation •...
  • Page 68 7800 Technical Manual Page 68 of 102 DESCRIPTION • <ESC> • Outputs and Escape Character • {COMMA} • Outputs a Comma • <STX> • Outputs START OF TEXT command • <ETX> • Outputs END OF TEXT command • <TAB> • Outputs TAB command •...
  • Page 69 7800 Technical Manual Page 69 of 102 DESCRIPTION • [BASE 1] • Data output codes that follow are scale data from Base 1 • [PRIMARY UNITS] • Data output codes that follow are in primary unit of measure • [SECONDARY UNITS] •...
  • Page 70 7800 Technical Manual Page 70 of 102 DESCRIPTION • PREFIX TARGET SPT UNITS • Outputs the setpoint target weight when setpoints are enabled • PREFIX PREACT SPT UNITS • Outputs the setpoint PREACT target weight when setpoints are enabled • PREFIX TRICKLE SPT UNITS •...
  • Page 71: Time And Date

    7800 Technical Manual Page 71 of 102 Configuration of Time and Date From any of the main operating screens: Select the MENU button In the main menu select the TIME & DATE Enter Password if prompted. Default password in 0000...
  • Page 72 7800 Technical Manual Page 72 of 102 This will open the time and date menu. Use the UP and DOWN arrow keys to adjust the time and date settings Select the 12/24 SEL button to scroll between 12-hour AM/PM and 24-hour military time.
  • Page 73 7800 Technical Manual Page 73 of 102 Options Configuration From any of the main operating screens: Select the MENU button In the main menu select the OPTIONS CONFIGURATION Enter Password if prompted. Default password in 0000 For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 74 7800 Technical Manual Page 74 of 102 This will open the Options Configuration Menu. To enter and/or change a setting use the UP/DOWN arrow keys to scroll up or down to setting and select the Blue EDIT button. Selecting the Green SAVE & EXIT button will save and exit, Red CANCEL & EXIT will exit without saving...
  • Page 75 7800 Technical Manual Page 75 of 102 When 25/5 50/2, 10/5 50/2, 25/10 50/2, 10/10 50/2, 1/100 or 10/10 are selected additional menu selections are enabled as shown below: PARAMETER NAME VALUE/SELECTIONS UNIT (PARM) MULTI-RANGE PT1 • First % of scale capacity that scale resolution...
  • Page 76 7800 Technical Manual Page 76 of 102 Dual and Triple Ranging Setup – Based upon the displayed resolution setting in METROLOGICAL SETTINGS\CONFIGURE BASE 1(2) Resolution High Resolution up to % of Medium Resolution Increase Setting capacity Resolution Increase Factor Factor...
  • Page 77 7800 Technical Manual Page 77 of 102 User Configuration Menu From any of the main operating screens: Select the MENU button In the main menu select the USER Enter Password if prompted. Default password in 0000 For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 78 7800 Technical Manual Page 78 of 102 This will open the USER Menu. User Configuration Menu PARAMETER NAME VALUE/SELECTIONS UNIT (PARM) BACKLIGHT LEVEL • Control the amount of display back light • Select the EDIT button to cycle through available selections.
  • Page 79 7800 Technical Manual Page 79 of 102 SET POINT Configuration Menu From any of the main operating screens: Select the MENU button In the main menu select SETPOINT CONFIGURATION Enter Password if prompted. Default password in 0000 For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 80 7800 Technical Manual Page 80 of 102 This will open the SET POINT CONFIGURATION Menu. The setting Below is Factory Default: When SINGLE SET POINT and COUNT enabled: When SINGLE SET POINT and COUNT enabled: For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 81 7800 Technical Manual Page 81 of 102 Set Point Configuration Menu PARAMETER NAME VALUE/SELECTIONS (PARM) SET POINT ENABLE • Enable or disable the Setpoint Operation • Selections are OFF, CHECK WEIGH or SINGLE SET PT • Select the EDIT button to cycle through available selections.
  • Page 82 7800 Technical Manual Page 82 of 102 Relay Operation and Connections When Configured as follows: Wiring and Function to Relay Board For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 83 7800 Technical Manual Page 83 of 102 When Configured as follows: Wiring and Function to Relay Board For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 84: Password

    7800 Technical Manual Page 84 of 102 PASSWORD Configuration Menu From any of the main operating screens: Select the MENU button In the main menu select the PASSWORD Enter Password if prompted. Default password in 0000 For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 85 7800 Technical Manual Page 85 of 102 This will open the PASSWORD Menu. Key in the new password and ENTER. For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 86 7800 Technical Manual Page 86 of 102 Scale External Command Formats Pennsylvania Scale Bench Weighing and Counting Scales or Indicators can be controlled from an external device (such as a computer, terminal or barcode scanning) by various commands, each three letters long sending with a Carriage Return or Enter (cr) Examples: •...
  • Page 87 7800 Technical Manual Page 87 of 102 Remote Scale Commands Which Request Information Command Description Response Format Send Base in use with second base option, Base(sp)1(cr)(lf) Base(sp)1(cr)(lf) Count(sp)XXXXXXX Pieces(cr)(lf) Send Count XX/XX/XX(cr)(lf) Send Date Gross(sp)XXXXXXX(cr)(lf) Send Gross Weight Send Product ID...
  • Page 88 7800 Technical Manual Page 88 of 102 Wired Ethernet Option Configuring the Pennsylvania Scale Wired Ethernet Option Note: Please consult with IT or Network administrator to determine the network protocols required for connection on the local area network and/or interface to software programs.
  • Page 89 7800 Technical Manual Page 89 of 102 Any Pennsylvania Scale Ethernet Options that are reachable on the network will be shown on the Device Installer program. Note the factory default network protocol is DHCP, IP Address, Subnet and Default Gateway are assigned by the server.
  • Page 90 7800 Technical Manual Page 90 of 102 To change from DHCP to a Static IP, Subnet and Default gateway click on the connection to configure, then click on ASSIGN IP. Select ASSIGN A SPECIFIC IP ADDRESS and NEXT Wired Ethernet Board...
  • Page 91 7800 Technical Manual Page 91 of 102 Enter the static IP Address, Subnet Mask and Default Gateway, then click NEXT, then ASSIGN. The Pennsylvania Scale Ethernet Option will be configured with these IP Settings and reboot. If the IP address is known you can also login into the device and configure it through a web browser.
  • Page 92 7800 Technical Manual Page 92 of 102 Wireless Ethernet Option - Wi-Fi Configuring the Pennsylvania Scale Wireless Ethernet Option Note: Please consult with IT or Network administrator to determine the network protocols required for connection on the local area network and/or interface to software programs.
  • Page 93 7800 Technical Manual Page 93 of 102 This will start the web app program on the module itself and create a standalone wireless network. This network can then be joined by any computer or device (Tablets, Cell Phones Etc.) that have a wireless connection by the standard methods of joining any normal wireless network.
  • Page 94 7800 Technical Manual Page 94 of 102 • In windows open a command prompt and type ipconfig to record the gateway IP address. Currently the default is 192.168.1.1. • Then type into the web browser address the gateway IP followed by80, as an example: 192.168.1.1:80.
  • Page 95 7800 Technical Manual Page 95 of 102 • In the “NETWORK CONFIGURATION” tab you can configure Access Point SSID, Security Mode • DHCP or Static IP Address For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 96 7800 Technical Manual Page 96 of 102 • Selecting the INFORMATION tab will show the unit’s MAC address, Module Type and Battery Strength • When configuration and setup is complete click on the SAVE & REBOOT button For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 97 7800 Technical Manual Page 97 of 102 • Then Wi-Fi option will save the changes, reboot, and attempt to connect to the Network SSID programmed. Led Status codes For Tech Support Manuals and How to Videos go to pascale.com or email us at: techsupport@pascale.com...
  • Page 98 7800 Scale Standard AC powered main board. Includes expansion connections for all 61200 options except AC/DC Operation. 7800 Scale Standard AC/DC powered main board for scales with built in battery operation 61201 Includes expansion connections for all options Option PCB Assembly...
  • Page 99 Bench Scale Top Plate 7500, 7600 & 7800 57560A 7800 Casting Assembly 48105-11 8 x 8” Platform, 7800 2 & 5 lbs. Capacity Only 49892-1 8” Sub Platform 2 & 5 lbs. Capacity Only 57566A Display Casting, 7800 scale, Remote display 57575 Keypad Backing Plate Fits all 7500, 7600 &...
  • Page 100 7800 Technical Manual Page 100 of 102 7800 Scale Parts List Batteries Part Number Description 57513-1 Replacement Battery Pack New Design For all current design bench scales and indicators 57513-1 Replacement Battery Pack New Design For all current design bench scales and indicators...
  • Page 101: Wired Ethernet

    SSR DC – RELAY OPTION BOARD for 7400, 7600E, and other applications Requires (2) 57856 57880 aluminum standoffs – n/c. Display Board Part Number Description 57579 7800 Display Assembly. Includes Display PCB Assembly, LCD Display and Touchscreen Keypad Overlay Part Number Description 57589 7800 Display overlay Connectors...
  • Page 102 Description 22280 Complete Shipping Carton Kit for 7400, 7500/4, 7600/4 and 7800 indicators Please note: To upgrade an existing unit to Wired Ethernet, WiFi, USB, Bluetooth or Setpoint Relay Operation please contact the factory. These options are factory installed only...
