- Page 1 SS6600 MAX-LT Technical Manual Page 1 of 8 665 North Reservoir Street Lancaster PA 17602 P: 800.233.0473 717.295.6935 sales@pascale.com Manual Manual SS6600 MAX-LTTM2023REV1 For Tech Support Manuals and How To Videos go to: pascale.com/resource-library/ or email us at: sales@pascale.com...
-
Page 2: Unpacking And Startup
SS6600 MAX-LT Technical Manual Page 2 of 8 Unpacking and Startup Scale Base • The base to indicator interface cable is located underneath the base on the same side as the junction box with the Pennsylvania Scale Logo. • The cable is attached to two clips affixed underneath the base to protect it during shipment. -
Page 3: Specifications

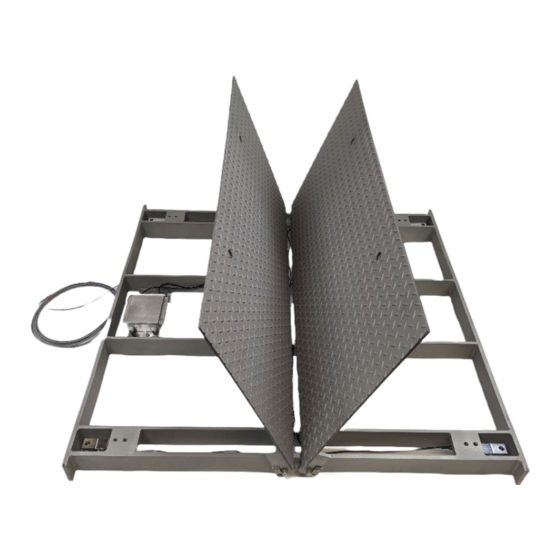

SS6600 MAX-LT Technical Manual Page 3 of 8 SPECIFICATIONS • CONSTRUCTION: 304 Stainless Steel Heavy Duty Bar Steel Frame and Deck Plate. • IP69K Washdown Protection • Accuracy: 5,000 divisions • OPTIONS: o RAMPS BUMPER GUARDS BASE ANCHORS FORKLIFT SKIDS... - Page 4 SS6600 MAX-LT Technical Manual Page 4 of 8 Using the Lift Up Deck Plate: Remove the Center Plate Lift up the Deck Plate, Gas Struts will Assist and Hold in the Open Position To Close, Push Down Deck Plate and Replace Center Plate...
- Page 5 Pennsylvania Scale Base to Indicator Connections: The SS6600 MAX-LT comes with a pig tail end so that the load cell cable may be inserted through the watertight cable clamp used on the Pennsylvania Scale wash down indicators.
-
Page 6: Important Note
SS6600 MAX-LT Technical Manual Page 6 of 8 Base Summing Card Connections: Excitation+ Sense+ ORANGE Signal+ GREEN Shield/Ground CLEAR Signal- WHITE Sense- BLUE Excitation BLACK To access the junction box, remove the screws securing the top cover. IMPORTANT NOTE: All Screws must be in and tightened in order to maintain washdown protection! For Tech Support Manuals and How To Videos go to: pascale.com/resource-library/ or email us at: sales@pascale.com... - Page 7 SS6600 MAX-LT Technical Manual Page 7 of 8 Load Cell Ratings The SS6600 MAX-LT is available in capacities of 1,000 to 5,000 LB. The typical load cell sensitivity is 2 mv/v except 1,000 LB capacity, which is 1 mv/v. Calibration Instructions Please refer to the calibration instructions for the digital indicator that will be used with the base.
- Page 8 SS6600 MAX-LT Technical Manual Page 8 of 8 Replacement Parts List Part No: Description Notes 6600 4-cell Summing/Junction Board in SS Universal fit all 4 load cell systems; 56699-1 J-Box excitation trim 49737-7 SS6600, SS6900, ½-20 UNF, SS, 2" base SS Floor Scales 1, 2, 5, and 10K diameter, 2-1/2"...
