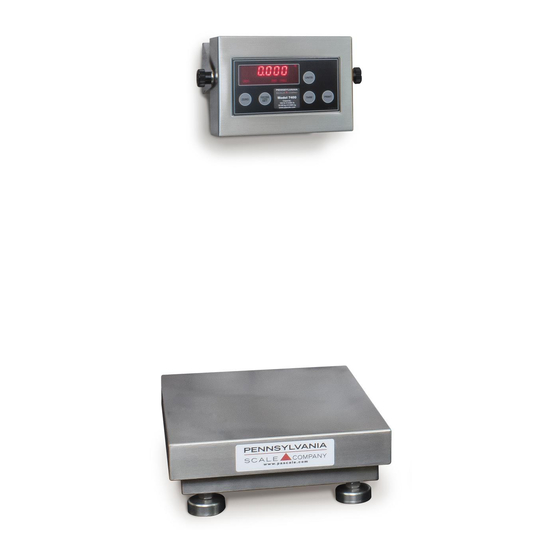

- Page 1 7400 Technical Manual Page 1 of 28 665 North Reservoir Street Lancaster PA 17602 P: 800.233.0473 717.295.6935 sales@pascale.com Manual 7400TM2020REV1 For Tech Support Manuals and How To Videos go to: pascale.com/resource-library/ or email us at: sales@pascale.com...
-
Page 2: Table Of Contents
7400 Technical Manual Page 2 of 28 Table of Contents Unpacking and Setup Specifications Connections Calibration/Configuration Access, Selecting/Changing Parameters Navigating the Menus Menu Layout SEL.CFG - Capacity, Resolution, Zero Range and Basic Indicator Configuration 8 - 9 SEL.CL1 - Load Cell/Weighbridge Calibration SEL.OPT1 - Analog Output Configuration SEL.OP3 - Time and Date Configuration Sel.OP5 - 10 Point Span Calibration, Filter Settings... -
Page 3: Unpacking And Setup
7400 Technical Manual Page 3 of 28 Unpacking and Startup Unpack the Scale • Remove the molded foam top from the carton. Gently lift and remove the indicator from the packaging foam. • Remove any options which may be packed with the scale. •... -
Page 4: Specifications
7400 Technical Manual Page 4 of 28 SPECIFICATIONS • LOAD CELL A/D CONVERTER • TYPE: 24-bit delta sigma (1:16,777,216) • EXCITATION: 5 VDC, 120 mA max. • SIGNAL INPUT: 16 mv • SENSITIVITY: 0.1 Uv/grad • UPDATE RATE: 30 update/second •... -
Page 5: Connections
7400 Technical Manual Page 5 of 28 Connections: For Tech Support Manuals and How To Videos go to: pascale.com/resource-library/ or email us at: sales@pascale.com... -
Page 6: Calibration/Configuration Access, Selecting/Changing Parameters Navigating The Menus
7400 Technical Manual Page 6 of 28 Calibration/Configuration Access, Selecting/Changing Parameters Navigating the Menus To access instrument configuration, calibration: Press and Hold the ZERO button for 5 seconds ZERO - 5 seconds X] are The Audit Trail counters [ displayed first followed by access code request GROSS ?]. -
Page 7: Menu Layout
7400 Technical Manual Page 7 of 28 Menu Layout SEL.CFG Capacity, Resolution, Zero Range and Basic Indicator Configuration SEL.CL1 Calibration Zero and Span SEL.OP1 Analog Output Configuration SEL.OP3 Time and Date Configuration SEL.OP4 Weigh-IN / Weigh-OUT Truck Mode Configuration Sel.op5 10 Point Span Calibration, Filter Settings SEL.OP6 Accumulation Configuration... -
Page 8: Sel.cfg - Capacity, Resolution, Zero Range And Basic Indicator Configuration
7400 Technical Manual Page 8 of 28 Configuration Calibration Menus SEL.CFG Note: Configurations in must be setup prior to weighbridge calibration SEL.CFG Capacity, Resolution, Zero Range and Basic Indicator Configuration. ZERO PRINT Press the to enter this menu and to advance steps within the menu, press the GROSS /NET exit. - Page 9 7400 Technical Manual Page 9 of 28 DIO Inputs OFF or ON Remote Serial Display OFF. Remote Serial Display is Off. Option. Allows a second 40.rd.En :Set indicator as slave, 7400 to be used as a 40.rd.re :Set indicator as master. master or slave display 40.Rd.GP: Set indicator as slave for Condec input Note: When remote slave/master is selected configuration steps 41 –...
-
Page 10: Sel.cl1 Load Cell/Weighbridge Calibration
7400 Technical Manual Page 10 of 28 SEL.CL1 Load Cell/Weighbridge Calibration. GROSS ZERO /NET SEL.CL1 Press the button until is displayed. Press the to enter this menu and GROSS PRINT /NET to advance steps within the menu, press the to exit. Press the button to change values. -
Page 11: Sel.opt1 - Analog Output Configuration
7400 Technical Manual Page 11 of 28 SEL.OP1 Analog Output Configuration. ZERO PRINT Press the to enter this menu and to advance steps within the menu, press the GROSS /NET exit. Press the button to change values. STEP Description Parameters dSP –... -
Page 12: Sel.op3 - Time And Date Configuration
7400 Technical Manual Page 12 of 28 SEL.OP3 Time and Date ZERO PRINT Press the to enter this menu and to advance steps within the menu, press the GROSS /NET exit. Press the button to change values. STEP Description Parameters -- Skip clock type setup 24H –... -
Page 13: Sel.op5 - 10 Point Span Calibration, Filter Settings
7400 Technical Manual Page 13 of 28 SEL.OP5 10 Point Span Calibration ZERO PRINT Press the to enter this menu and to advance steps within the menu, press the GROSS /NET exit. Press the button to change values. STEP Description Parameters Enable/Disable 10 Point OFF- Disabled... - Page 14 7400 Technical Manual Page 14 of 28 After enabling and configuring the 10-point calibration you will need to save and go to ZERO SEL.CL1. With no weight on the scale base or weighbridge press the button twice. TARE Scale displays CLr.PtS/nO. Press the button to change the to a then press the...
-
Page 15: Sel.op6 - Accumulation Configuration
7400 Technical Manual Page 15 of 28 SEL.OP6 Accumulator Configuration ZERO PRINT Press the to enter this menu and to advance steps within the menu, press the GROSS /NET exit. Press the button to change values. STEP Description Parameters OFF- Disabled Enable/Disable On –... -
Page 16: Data Input/Output
7400 Technical Manual Page 16 of 28 Data Input/Output Remote Commands <Z><cr> Zero Scale “Gross” mode, no motion, inside zero range. <N><cr> Switch to Net “Gross” mode with Tare stored. <G><cr> Switch to Gross “Net” mode. <T><cr> Auto Tare Switch to Net, no motion, not at “Gross” zero. <P><cr>... -
Page 17: Wired Ethernet And Wi-Fi Option
7400 Technical Manual Page 17 of 28 Wired Ethernet Option Configuring the Pennsylvania Scale Wired Ethernet Option Note: Please consult with IT or Network administrator to determine the network protocols required for connection on the local area network and/or interface to software programs. The Default Port number for the Pennsylvania Scale Wired Ethernet Option is 10001 Go to https://www.lantronix.com/products/deviceinstaller/... - Page 18 7400 Technical Manual Page 18 of 28 Any Pennsylvania Scale Ethernet Options that are reachable on the network will be shown on the Device Installer program. Note the factory default network protocol is DHCP, IP Address, Subnet and Default Gateway are assigned by the server.
- Page 19 7400 Technical Manual Page 19 of 28 Wired Ethernet Board For Tech Support Manuals and How To Videos go to: pascale.com/resource-library/ or email us at: sales@pascale.com...
- Page 20 7400 Technical Manual Page 20 of 28 Enter the static IP Address, Subnet Mask and Default Gateway, then click NEXT, then ASSIGN. The Pennsylvania Scale Ethernet Option will be configured with these IP Settings and reboot. If the IP address is known you can also login into the device and configure through a web browser. Key in the IP into the web browser address bar.
- Page 21 7400 Technical Manual Page 21 of 28 Wireless Ethernet Option - Wi-Fi Configuring the Pennsylvania Scale Wireless Ethernet Option Note: Please consult with IT or Network administrator to determine the network protocols required for connection on the local area network and/or interface to software programs. The Default Port number for the Pennsylvania Scale Wi-Fi Ethernet Option is 2000 Scale/Indicator communications that must be configured for Wi-Fi operation: In CFG 60...
- Page 22 7400 Technical Manual Page 22 of 28 This will start the web app program on the module itself and create a standalone wireless network. This network can then be joined by any computer or device (Tablets, Cell Phones Etc.) that have a wireless connection by the standard methods of joining any normal wireless network.
- Page 23 7400 Technical Manual Page 23 of 28 • In windows open a command prompt and type ipconfig to record the gateway IP address. Currently the default is 192.168.1.1. • Then type into the web browser address the gateway IP followed by80, as an example: 192.168.1.1:80.
- Page 24 7400 Technical Manual Page 24 of 28 • In the “NETWORK CONFIGURATION” tab you can configure Access Point SSID, Security Mode • DHCP or Static IP Address For Tech Support Manuals and How To Videos go to: pascale.com/resource-library/ or email us at: sales@pascale.com...
- Page 25 7400 Technical Manual Page 25 of 28 • Selecting the INFORMATION tab will show the unit’s MAC address, Module Type and Battery Strength • When configuration and setup is complete click on the SAVE & REBOOT button For Tech Support Manuals and How To Videos go to: pascale.com/resource-library/ or email us at: sales@pascale.com...
- Page 26 7400 Technical Manual Page 26 of 28 • Then Wi-Fi option will save the changes, reboot, and attempt to connect to the Network SSID programmed. Led Status codes For Tech Support Manuals and How To Videos go to: pascale.com/resource-library/ or email us at: sales@pascale.com...
-
Page 27: Status And Error Codes
7400 Technical Manual Page 27 of 28 7400 Status and Error Codes MESSAGE DESCRIPTION D/A card detected - Displayed under the check function. IIC.ERR IIC short - Power-up hardware failure indication. EEPROM is reset by EER command - Power-up message Displayed on power-up when the DC power push-button is AUTO EEPROM is reset - Power-up message... -
Page 28: Replacement Parts List
7400 Technical Manual Page 28 of 28 Replacement Parts List Part No: Description Notes 7400 and 7600E and EW Indicators, ALL SSR-DCR I/O screw terminals for (2) digital APPLICATIONS, 57819 outputs and expanded batch ALL AC APPLICATIONS and others using Ethernet features option 57864...
