AC Infinity THERMOFORGE Series User Manual

AC Infinity THERMOFORGE Series User Manual

Environmental vpd heater
Hide thumbs

Advertisement

Table of Contents

THERMOFORGE SERIES
ENVIRONMENTAL VPD HEATER
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THERMOFORGE Series and is the answer not in the manual?

Questions and answers

Lee
January 19, 2025

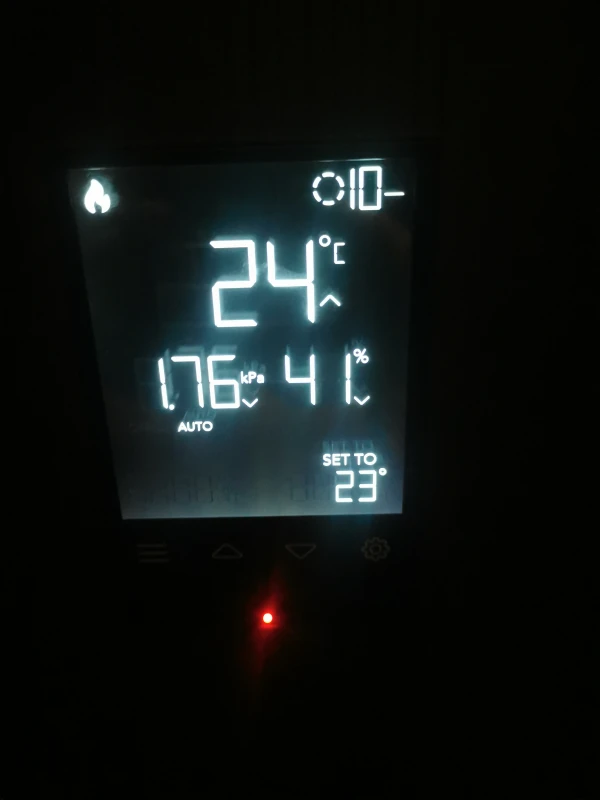

The temp keeps running higher than the temp I've got set at 23c and I don't know how to change it I need it to get to 23c then cut off

User image 678d774caa696
0
1 comments:
Mr. Anderson
May 14, 2025

To set the AC Infinity Series heater to cut off at 23°C, use the AUTO Mode:

1. Enter AUTO Mode settings.
2. Press the up or down button to set the low temperature trigger to 23°C.
3. The heater will activate when the temperature is 23°C or lower.
4. It will turn off when the temperature rises above 23°C.

This sets 23°C as the cutoff point for heating.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for AC Infinity THERMOFORGE Series

Summary of Contents for AC Infinity THERMOFORGE Series

  • Page 1 THERMOFORGE SERIES ENVIRONMENTAL VPD HEATER USER MANUAL...
  • Page 3 WELCOME Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com and click contact for our contact information. EMAIL LOCATION support@acinfinity.com...
  • Page 4 MANUAL CODE SFT2311X1 PRODUCT MODEL UPC-A THERMOFORGE T3 AC-SFT3 819137024489 THERMOFORGE T7 AC-SFT7 819137024502...

  • Page 5: Table Of Contents

    Page 13 Cleaning ..................Page 15 Platform ................Page 16 Connecting to UIS™ Controllers ........... Page 17 Programming ................. Page 18 Other Settings ................Page 33 ....................Page 35 Other AC Infinity Products ............. Page 36 Warranty ..................Page 37...

  • Page 6: Product Warning

    PRODUCT WARNING IMPORTANT SAFETY INSTRUCTIONS PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS HEATER AND KEEP IT FOR FUTURE REFERENCE. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read all instructions before installing and using this product.
  • Page 7 PRODUCT WARNING Do not handle any part of this product or plug with wet hands. Suitable for dry locations ONLY. This product is not intended for use in bathrooms, laundry areas, or similar indoor locations. Never place this product where it may fall into a bathtub or other wet environments. Do not use or store this product where it may get wet, including but not limited to, surrounding areas of baths, showers, or swimming pools.
  • Page 8 PRODUCT WARNING The output of this product may vary and its temperature may become intense enough to burn exposed skin. Use of this product is not recommended for persons with reduced sensitivity to heat or an inability to react to and avoid burns. Do not place this product on a soft, elevated, or unstable surface, or in any location where it may fall over or air intakes or exhaust can be blocked in any manner.
  • Page 9 PRODUCT WARNING DO NOT attempt to repair this product yourself! All service and/or repairs must be done by an authorized technician and/or electrician. Contact our customer service department at support@acinfinity.com 626-923-6399 for product and warranty assistance. DANGER - High temperatures may be generated under certain abnormal conditions. Do not partially or fully cover or obstruct the front of this heater.

  • Page 10: Key Features

    KEY FEATURES ACTIVE MONITORING PRECISE DETECTION PWM CONTROL Features automation controls Thermal alloy sensor tracks Offers 10 heat and fan levels to activate your heater based shifts in climate and captures while delivering an energy- on temperature and VPD up-to-the-second readings for efficient performance with triggers, timers, and cycles.

  • Page 11: Product Contents

    PRODUCT CONTENTS SPACE DUCT SENSOR UIS EXTENSION HOOK AND PROBE HEATER EXTENSION PROBE CORD (M-M) LOOP TIE MOUNT (x1) (x1) (x1) (x1) (x4) (x4)

  • Page 12: Installation

    INSTALLATION STANDARD INSTALLATION Place your heater outside of your grow tent. Route the duct tube through the lowest duct port available and into your grow tent. DUCT EXTENSION You may insert the end of your heater's duct tube into the duct extension to extend its reach.

  • Page 13: Powering And Setup

    POWERING AND SETUP STEP 1 Plug the sensor probe into the 3.5mm jack located at the back of your heater. Route the probe head to your plant's canopy for the most accurate readings. STEP 2 Plug your heater's power plug into an outlet to power it.
  • Page 14 POWERING AND SETUP CORD MANAGEMENT You may wrap the power cord around the spool hidden underneath the heater as needed.

  • Page 15: Cleaning

    CLEANING STEP 1 Unplug your heater. STEP 2 Twist the intake vent cap off of your heater. STEP 3 Wipe off any dust and debris from the grille and vent cap using a damp cloth. Set aside to dry as needed.

  • Page 16: Uis Tm Platform

    By creating this fully integrated system, you can power and program all your devices together or separately for optimized grow tent management. Your grow system can be regulated using your controller hub or remotely on the AC Infinity app (paired with compatible controllers), where you will have access to automation programming and climate data.

  • Page 17: Connecting To Uis™ Controllers

    CONNECTING TO UIS THERMOFORGE heaters can connect with any UIS controller (sold separately) as part of an integrated system using the included UIS extension cord. EXTENSION CABLE Use the included UIS M-M extension cord to connect your heater to your UIS controller. Plug the UIS connector with the gasket end into your heater.

  • Page 18: Programming

    PROGRAMMING 1. MODE BUTTON 8. CURRENT LEVEL Cycles through the controller’s Displays the current setting. modes: OFF, ON, AUTO, VPD, Includes a trend indicator that TIMER TO OFF, and CYCLE signals if the setting is currently (ON and OFF). rising, falling, or holding steady. 9.
  • Page 19 PROGRAMMING HEAT FUNCTION CONTROLLER MODES Holding the MODE and SETTING buttons for 3 seconds while in any mode or setting will switch your heater between the HEAT and FAN functions. This switching is disabled if the controller is locked. Pressing the mode button will cycle through the controller’s available programming modes: OFF, ON, AUTO, VPD, TIMER TO OFF, CYCLE (On and Off).
  • Page 20 PROGRAMMING HEAT FUNCTION ON MODE Your heater will actively run at the level set here, regardless of the probe’s reading. The ON Mode setting also serves as the maximum level the other modes will run at. MAXIMUM LEVEL Your heater will run at the level set in ON Mode, as the maximum level, when triggered ON, as well as in the AUTO Mode, VPD Mode, TIMER TO OFF Mode, and CYCLE Mode.
  • Page 21 PROGRAMMING HEAT FUNCTION AUTO MODE (LOW TEMPERATURE TRIGGER) Pressing the up or down button sets the low temperature trigger. Your heater will activate if the probe’s reading meets or falls below this threshold. Once triggered, your heater will gradually ramp up to the level set in ON Mode.
  • Page 22 PROGRAMMING HEAT FUNCTION VPD MODE (LOW VPD TRIGGER) Pressing the up or down button sets the low VPD trigger. Your heater will activate if the probe’s reading meets or falls below this threshold. Once triggered, your heater will gradually ramp up to the level set in ON Mode.
  • Page 23 PROGRAMMING HEAT FUNCTION TIMER TO OFF MODE Pressing the up or down button sets a countdown time. During the countdown, your heater will be set to ON. Once the timer ends, your heater will trigger to turn off. If there is a level set in OFF Mode, your heater will run at that level after the end of the countdown.
  • Page 24 PROGRAMMING HEAT FUNCTION CYCLE MODE (ON AND OFF) 30min. Sets an on duration and an off duration for your heater to cycle through continuously. Press the 1hr. up or down button to first set a duration for it to activate. Then press the mode button again and set a duration for your heater to deactivate.
  • Page 25 PROGRAMMING FAN FUNCTION CONTROLLER MODES Holding the MODE and SETTING buttons for 3 seconds while in any mode or setting will switch your heater between the HEAT and FAN functions. This switching is disabled if the controller is locked. Pressing the mode button will cycle through the controller’s available programming modes: OFF, ON, TIMER TO OFF, CYCLE (On and Off).
  • Page 26 PROGRAMMING FAN FUNCTION ON MODE Your heater will actively run at the level set here, regardless of the probe’s reading. The ON Mode setting also serves as the maximum level the other modes will run at. MAXIMUM LEVEL Your heater will run at the level set in ON Mode, as the maximum level, when triggered ON, as well as in the TIMER TO OFF Mode and CYCLE Mode.
  • Page 27 PROGRAMMING FAN FUNCTION TIMER TO OFF MODE Pressing the up or down button sets a countdown time. During the countdown, your heater will be set to ON. Once the timer ends, your heater will trigger to turn off. If there is a level set in OFF Mode, your heater will run at that level after the end of the countdown.
  • Page 28 PROGRAMMING FAN FUNCTION CYCLE MODE (ON AND OFF) 30min. Sets an on duration and an off duration for your heater to cycle through continuously. Press the 1hr. up or down button to first set a duration for it to activate. Then press the mode button again and set a duration for your heater to deactivate.
  • Page 29 PROGRAMMING CONTROLLER SETTINGS Pressing the setting button will cycle through the controller’s available settings: °F / °C, CALIB. T° / H%, and LEAF OFFSET. TOGGLING THE DISPLAY Lock the controller by holding the setting button. Press the setting button to turn the display off. Pressing the setting button again will turn the display back on.
  • Page 30 PROGRAMMING CALIBRATION TEMPERATURE SETTING Adjusts the temperature reading the sensor probe is measuring. Press the up or down button to increase or decrease the data figure in 1° increments. The calibration cycle ranges from -20°F to 20°F (or -10°C to 10°C) and will be applied to the sensor probe’s measurements.
  • Page 31 PROGRAMMING ALERT ICONS The alert icons are displayed at the top of the screen and will flash when the controller signals an alert, notifying you of any triggered functions or alarms. ALARM Flashes and beeps with an alert if the temperature/VPD meet the trigger point set in the app.
  • Page 32 PROGRAMMING DISPLAY LOCK ALERT Displays when you lock the screen. The icon will flash and beep if you attempt to adjust your heater while it is still locked. FAIL-SAFE Flashes whenever your heater falls or is tilted past a 15° angle. It will pause programming and its screen will flash until it is back to an upright position.

  • Page 33: Other Settings

    OTHER SETTINGS SWITCH FUNCTION Holding the mode and setting buttons for 3 seconds will switch HOLD + your heater between the HEAT and FAN functions. This switching is disabled if the controller is locked. FACTORY RESET Holding the mode, up, and down buttons together for 5 seconds HOLD + will reset your heater and restore factory settings.
  • Page 34 OTHER SETTINGS JUMP TO OFF MODE Holding the mode button for 3 seconds while in any mode or setting HOLD + will automatically jump to OFF Mode. This function is disabled if the controller is locked. RESET TO OFF/DEFAULT Holding the up and down buttons together for 2 seconds will reset the HOLD + value of your current mode or setting to default.

  • Page 35: Faq

    Why does my screen turn off when I connect my heater to a UIS controller? A UIS controller will override your heater's onboard programming. Your device's screen will shut off and you can program your device directly through the smart controller. When I connect to a smart controller, which sensor probe is active? The sensor probe plugged into your controller will override the heater's sensor.

  • Page 36: Other Ac Infinity Products

    AC INFINITY PRODUCTS CONTROLLER 69 PRO The CONTROLLER 69 PRO is the centerpiece of the UIS platform, able to connect with our smart devices including fans and LED grow lights to create the optimal growing environment. Connects with up to four devices to provide independent programming while capable of dynamically adjusting fan speed and brightness intensity levels in response to temperature, humidity, and VPD levels.

  • Page 37: Warranty

    WARRANTY This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues.
  • Page 38 No part of the materials including graphics or logos available in this booklet may be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form, in whole or in part, without specific permission from AC Infinity Inc.
  • Page 40 www.acinfinity.com...
