V-TAC 80133970 Instruction Manual

Car port
Hide thumbs Also See for 80133970:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
WEEE Number: 80133970

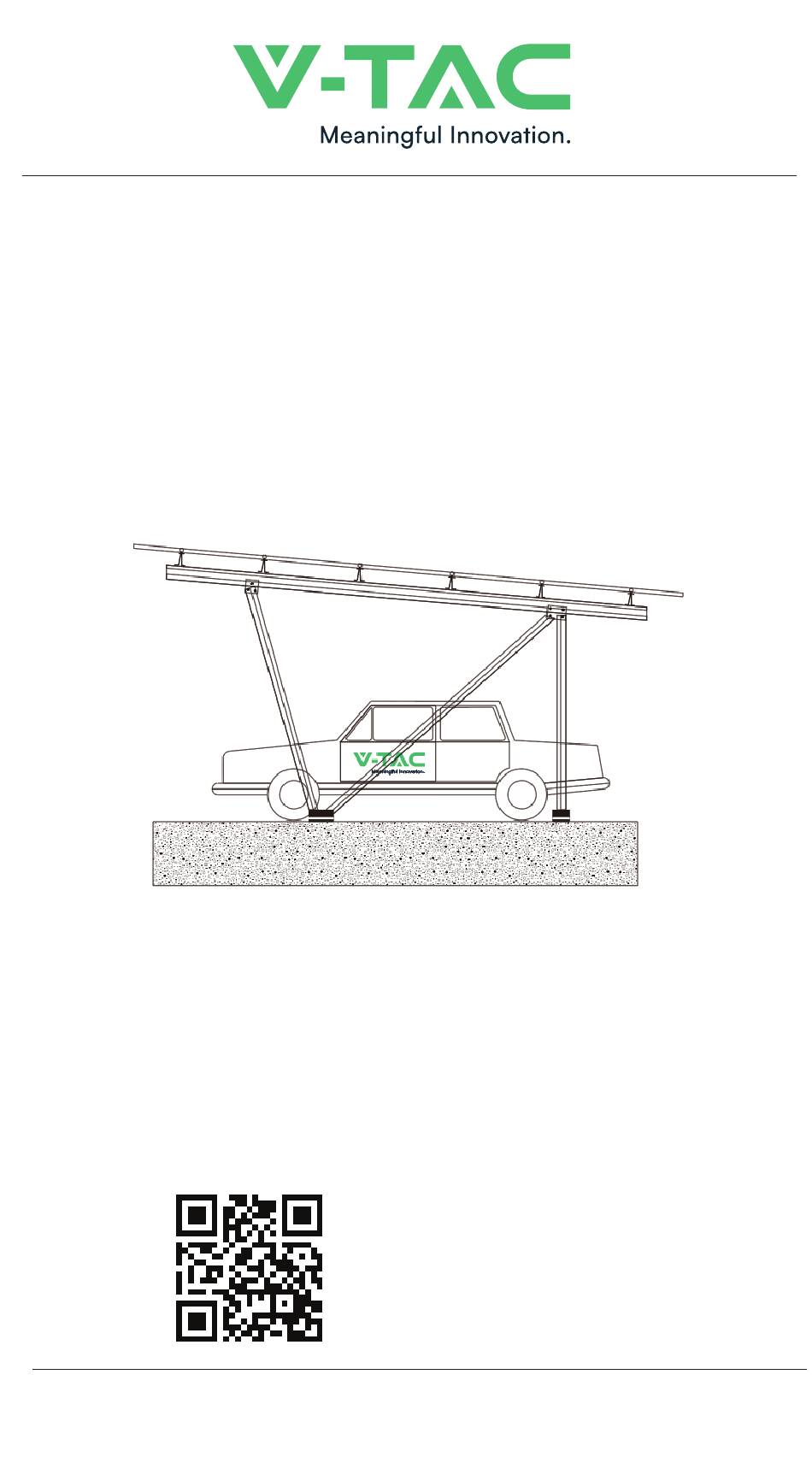

INSTRUCTION MANUAL
CAR PORT
MULTI-LANGUAGE MANUAL QR CODE
Please scan the QR code to access the manual in
multiple languages.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B

Advertisement

loading
Need help?

Need help?

Do you have a question about the 80133970 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for V-TAC 80133970

Summary of Contents for V-TAC 80133970

  • Page 1 Please scan the QR code to access the manual in multiple languages. IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B...

  • Page 2: Product List

    1 . Diagrammatic Drawing 2 . Product List Picture Description Barcode 118211 Crossbar Rail 5900mm 3800170208384 118212 Clamping Kit 3800170208391 118213 Mid Clamp 35mm 3800170208407 118214 End Clamp 35mm 3800170208414 118215 Carport Stringer 6000mm 3800170208421 118216 H Jackets 150mm 3800170208438 118217 H Jackets 220mm 3800170208445...
  • Page 3 3 . Carport Structure 4 . Accessories Base Base Carport Tube Carport Tube ( 300mm ) ( 200mm ) ( 2500mm ) ( 3760mm ) Carport Tube H Jacket H Jacket Crossbar Rail ( 2950mm ) ( 150mm ) ( 220mm ) ( 5900mm ) Carport Stringer Clamping kit...

  • Page 4: Installation Steps

    5 . Installation Steps Step 1 Disassemble the screws of the base to fix it on the ground. Using the screws of base to fix the end carport tubes, meanwhile, Step 2 fix the H-Jackets on the carport stringer,then connect the H-Jackets with the other end of carport tubes.
  • Page 5 Step 4 Using the clamping kit to install the Crossbar rail and Stringer.
  • Page 6 Using mid clamps and end clamps to fix solar panels on Step 5 the crossbar rail.
