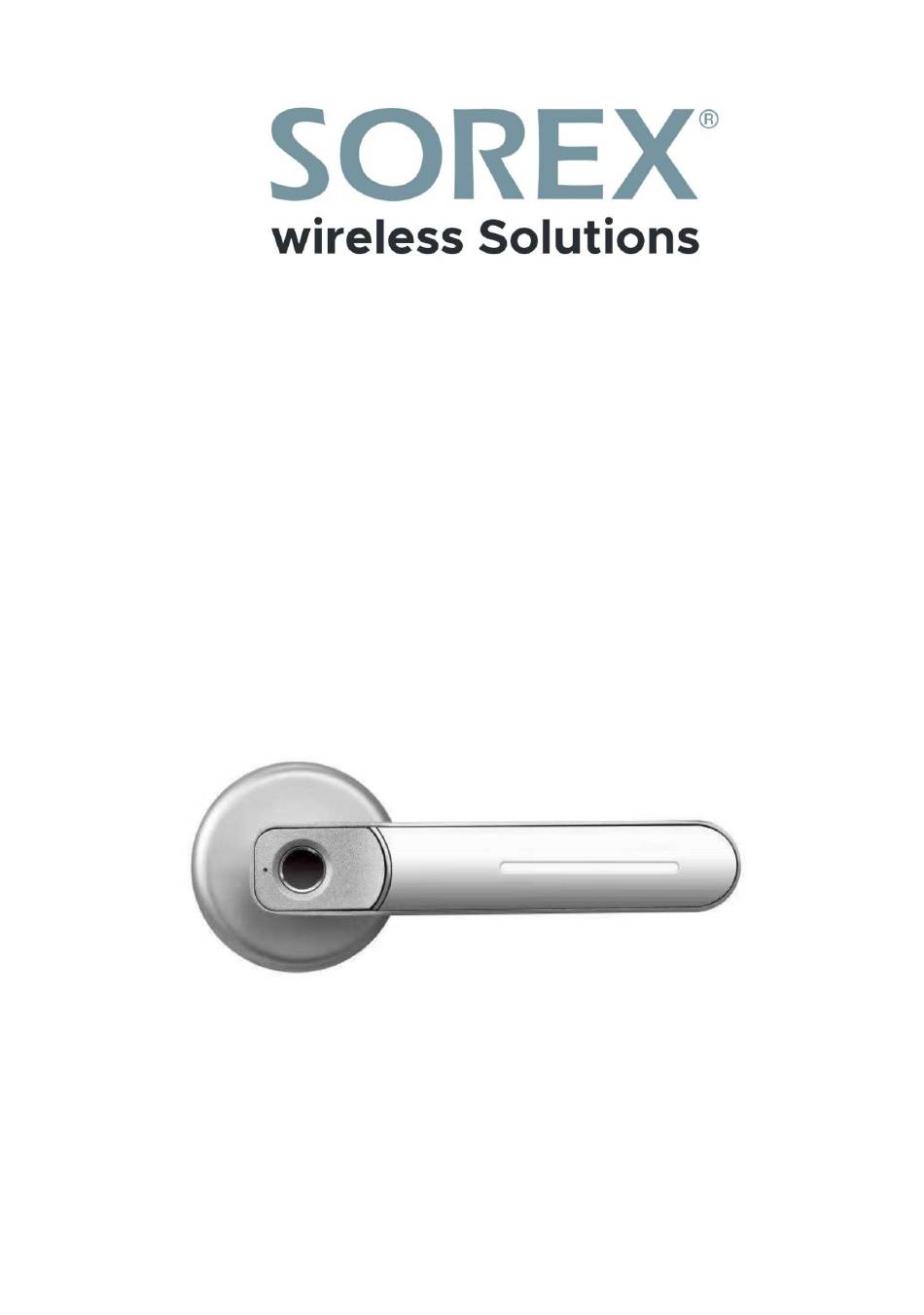

- Page 1 Machine Translated by Google SOREX FLEX EASY fingerprint door handle operation manual...
- Page 2 Machine Translated by Google Imprint Version 1.1 © Copyright: February 2023 SOREX wireless Solutions GmbH Technology and Research Center WN Viktor-Kaplan-Strasse 2B A-2700 Wiener Neustadt Austria T +43 2622 320130 F +43 2622 3201315 @ office@sorex.eu w³ www.sorex.eu www.sorex.eu/eu-conformity-declaration...
-
Page 3: Table Of Contents
Machine Translated by Google Table of contents German 1. Scope of delivery ............................1 2. Technical data ............................. 2 3. Installing the door handle .......................... 3 4. Smartphone app ........................... 10 4.1. -
Page 4: German
Machine Translated by Google German 1. Scope of delivery 1. Screwdriver 2. 8mm square 3. 4x screw adapter long 4. 4x screw adapter short 5. Door handle - interior and exterior part 6. 4x fastening screws 7. Replacement screw for battery compartment/inside cover 8. Replacement worm screw for attaching the outer door handle to the mounting plate 9. -
Page 5: Technical Data
Machine Translated by Google German 2. Technical data item number BH104100 (black) & BH104200 (silver) 0096224847170 & 0096224847163 -20° to 50°C Temperature range 4xAAA Power supply 2.4GHz frequency Battery life ~ 1 year with normal use (10 openings per day) Permanent (even when changing batteries) Storage of access media Number of media... -
Page 6: Installing The Door Handle
Machine Translated by Google German 3. Installing the door handle • First, remove your old door handle. - Page 7 Machine Translated by Google German • Take the outer part of the door handle (with cable) and the 8mm square (2.). Guide the cable through the square and insert the square into the square hole provided until it stops. • Mount either two of the long (3.) or two of the short screw adapters (4.). the outside of the door handle.
- Page 8 Machine Translated by Google German • Insert the square and the screw adapters from the outside through the designated ones Standard holes in the door (38mm spacing).
- Page 9 Machine Translated by Google German • Mount the mounting plate on the inside of the door using two fastening screws (6.). Make sure that the notch in the mounting plate will be on the same side as the worm screw in the door handle. •...
- Page 10 Machine Translated by Google German • Attach the door handle to the previously screwed mounting plate using the worm screw (picture above). Now connect the plug to the socket in the battery compartment at. Make sure that the red marked side of the plug and the red marked side of the socket are on the same side.
- Page 11 Machine Translated by Google German • Insert 4x AAA batteries. • Now close the cover and fasten it with the one provided Screw (7th).
- Page 12 Machine Translated by Google German...
-
Page 13: Smartphone App
4. Smartphone app Register with your email address 4.1. installation or phone number. This is • Search for the “SOREX SmartLock” important so that you can app in the Google Play Store or regain access to the SOREX FLEX Apple Store. -
Page 14: 10 4.3. Initial Setup
Machine Translated by Google German 4.3. initial setup • A page opens where you • Please note that the door handle opens with any please select “All locks”. finger when delivered. • First press the reset button using a needle for about 5 seconds or until the LED on the outside lights up solid red. -
Page 15: Functions
Machine Translated by Google German 4.4. Features 4.4.1. Opening via Bluetooth • You can use the large lock button to open your lock within the Bluetooth Unlock range. • You will now see your lock on the Main page. 4.4.2. Invite Users •... -
Page 16: Remove User
Machine Translated by Google German o One-time: Access applies to • Then press the one- time opening o Cyclical: Recurring corresponding user to select it. access, e.g. every week Mon-Fri • A window opens with User Information. To the user To delete, press the red one "Delete"... -
Page 17: Delete Fingerprint
Machine Translated by Google German 4.4.6. Read out logs • Press to read out the logs Home page "Records". 4.4.7. Remove device from app • • After clicking on “Next”, please follow You can delete a device by first removing the the instructions in the app to train lock from the list in the the finger. - Page 18 Machine Translated by Google German • Attention: Please note that the The device must be within reach and that the device automatically is reset. Attention: If you no longer have access to your device (e.g. device defective), you can delete it from the app in the following way: Open the app and on the main page, first press on the top .
-
Page 19: 14 4.5. Gateway
Machine Translated by Google German 4.5.2. Add a gateway • On 4.5. Gateway (sold separately) the main page, first press at the top left. In the opening 4.5.1. Preparing the lock • You must first activate the remote Please press “Gateway” in the menu. In the window that opens, press opening for your lock. -
Page 20: Delete Gateway
Machine Translated by Google German additional gateways must be purchased. 4.5.3. Delete gateway • First press on the top left of the main page. In the opening • Now configure your gateway by selecting the Please press “Gateway” in the menu. In the correct WLAN, entering the corresponding window that opens, select that WLAN password and assigning the gateway a... -
Page 21: Opening Via Gateway
You can now access the homepage from anywhere Open your lock on the go. You are no longer within the Bluetooth range limited. 4.6. Connection with Smart Home services More information about connecting to Smart home services can be found at: https://www.sorex.eu/sorex-smart-home... -
Page 22: Normal Door Handle
Machine Translated by Google German 5. Normal door handle mode To use the product as a normal door handle (permanently open, without authentication), do the following: • Press the button (see image below) on the inside for 1 second or until the LED on the outside flashes white. -
Page 23: Reset To Factory Settings
Machine Translated by Google German 7. Reset to factory settings You can reset the door handle in two different ways: 1. Delete the door handle from the app (select door handle -> Settings -> "Delete") 2. First press the reset button using a needle for about 5 seconds or until the LED on the outside lights up continuously red. - Page 24 Machine Translated by Google...
- Page 25 Machine Translated by Google...
- Page 26 Machine Translated by Google...
- Page 27 Machine Translated by Google Imprint Version 1.1 © Copyright: February 2023 SOREX wireless Solutions GmbH Technology and Research Center WN Viktor-Kaplan-Strasse 2B A-2700 Wiener Neustadt Austria T +43 2622 320130 F +43 2622 3201315 @ office@sorex.eu w³ www.sorex.eu www.sorex.eu/eu-conformity-declaration...
- Page 28 Machine Translated by Google © 2023 SOREX wireless Solutions...
