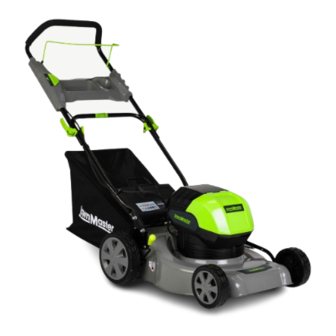

- Page 1 40V Lithium 16" Mower Instruction Manual LB4010001 Important! It is essential that you read the instructions in this manual before operating this machine. All notes and images are subject to technical modification. Distributed by Steelfort Engineering Ltd...
-
Page 2: Read First Before Use
READ FIRST BEFORE USE! LawnMaster Lithium Battery Instructions Battery must be fully charged before initial use. Never let the battery discharge below two bars on the battery indicator light-discharging below two bars may cause damage to the battery. Do not continue use if machine stops-fully recharge battery first if below two bar indicator. - Page 3 INDEX INTRODUCTION SAFETY RULES AND PRECAUTIONS CHILD SAFETY BATTERY AND CHARGER SAFETY RULES SLOPE GAUGE WARNING SYMBOLS PRODUCT DESCRIPTION DETAILED DESCRIPTION OF THE PRODUCT TECHNICAL DATA ASSEMBLY UNPACKING UNFOLDING AND ADJUSTING HANDLE ASSEMBLY (1) INSTALLING THE MULCHING PLUG (FOR MULCHING OPERATION) (2) INSTALLING THE GRASS CATCHER (FOR REAR BAGGING OPERATION) (3) 15 TO INSTALL BATTERY (4) USING THE PRODUCT...
- Page 4 INTRODUCTION LawnMaster Thank you for choosing this product. We are sure you shall appreciate the quality and performance of this machine, which will facilitate your task for a long period of time. Remember that you can contact our Technical Support for any queries regarding assembly o maintenance, as well as for the resolution to any problems that may arise, and for the purchase of spare parts and/or accessories.
-
Page 5: Symbols Marked On The Product
WARNING SYMBOLS KNOW YOUR LAWN MOWER Read this manual carefully, observing the recommended safety instructions before, during and after using your lawn mower. Following these simple instructions will also maintain your lawn mower in good working order. Familiarize yourself with the controls on your mower before attempting to operate it, but above all, be sure you know how to stop your mower in an emergency. -
Page 6: Safety Alert Symbol
CE Marking The product meets demands and regulations set by the European Community. CAUTION! Unusable power tools do not belong in domestic waste. They must be taken to a communal collecting point for environmentally friendly disposal in accordance with local regulations . Disposing of the packaging: The packaging is made of cardboard please recycle. - Page 7 WARNING: The operation of any tool can result in foreign objects being thrown into your eyes, which can result in eyes severely damaged. Before beginning power tool operation, always wears safety goggles or safety glasses with side shields and a full face shield when needed. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shield.
- Page 8 - inspect for damage; - replace or repair any damage parts. - check for and tighten any loose parts. 25) Stop the mower: - whenever you leave the lawnmower; 26) keep all nuts, blots and screws tight to be sure the equipment is in safe working condition; 27) check the grass catcher frequently for wear or deterioration;...
-
Page 9: Child Safety
When it is not in use or before cleaning and servicing, disconnect the battery charger from the power supply. Take special care of the battery. Avoid dropping it onto any hard surface or any other form of mechanical stress. Keep the battery away from extreme heat and cold. Do not open or attempt to repair the battery or the battery charger. -
Page 10: Detailed Description Of The Product
PRODUCT DESCRIPTION DETAILED DESCRIPTION OF THE PRODUCT PART DESCRIPTION QUANTITY Lawn mower Mulching plug Charger Grass catcher bag 4.0Ah Battery... - Page 11 PART DESCRIPTION QUANTITY Upper handle Lower handle Cam locks Height adjustment lever Battery door Start button Bail switch Lower handle locks Rear discharge cover Battery release button Cup holder...
-
Page 12: Technical Data
TECHNICAL DATA CORDLESS LAWNMOWER LB4010001 Model 40 V DC Lithium-ion Battery type Charge time 2 hours ( .0Ah battery) No-load speed 3000-3500 rpm Cutting width 400 mm Cather capacity 50 L Adjustable 25-75mm Height adjustments Functions 2-in-1: Mulch or rear bag... - Page 13 • Do not insert battery until assembly is complete and you are ready to mow. Failure to comply could result in accidental starting and possible serious personal injury. • To prevent accidental starting that could cause serious personal injury, always remove the battery from the product when assembling parts.
- Page 14 b. To lower the handle assembly: • Open the upper cam locks (H). NOTE: If the handle lock is difficult to open, loosen the knobs on the upper handle locks by turning them counterclockwise. • Lower the upper handle. • Unfix the lower screw (M).
-
Page 15: To Install Battery
INSTALLING THE GRASS CATCHER (FOR REAR BAGGING OPERATION) (4) NOTE: When using the grass catcher (D), do not install the mulching plug. • Remove battery. • Lift the rear discharge door (N). • Lift the grass catcher (D) by its handle and place under the rear discharge door (N) so that the hooks on the grass catcher are seated onto the slots on the mower housing. -
Page 16: Using The Product
USING THE PRODUCT STARTING/STOPPING THE MOWER (1) • Raise the battery cover. • Install battery. • Lower the battery cover. • Press and hold the start button (K). Pull the bail switch (L) toward the handle and release the button to start the mower. •... -
Page 17: Mowing Tips
MOWING TIPS NOTE: A sharp blade will greatly enhance the performance of the mower, especially when cutting high grass. Be sure to check the blade and to sharpen it at least once per year. • Verify that the lawn is free of stones, sticks, wires, and other objects that could damage the blades or the motor. -
Page 18: Emptying The Grass Catcher Bag
EMPTYING THE GRASS CATCHER BAG (3) Stop the mower and allow blades to completely stop. • Lift the rear discharge cover. • Lift the grass catcher by its handle to remove from mower. • Empty grass clippings. • Lift the rear discharge cover and reinstall the grass catcher as described earlier in this manual. -
Page 19: Care And Maintenance
CARE AND MAINTENANCE REPLACING THE CUTTING BLADE WARNING Always protect your hands by wearing heavy gloves and/or wrapping the cutting edges with rags or other materials when performing any maintenance on the blades. ALWAYS remove the battery when servicing or transporting the mower. REMOVE BATTERY While wearing leather padded gloves, wedge a block of wood between the blade and the mower deck in order to prevent the blade from turning when the bolt (1) is being removed. -
Page 20: Cleaning The Mower
CLEANING THE MOWER WARNING In order to reduce the risk of electric shock, do not expose the mower to water. The underside of the mower deck should be cleaned after each use, because grass clippings, leaves, dirt, and other debris will accumulate, which will cause rust and corrosion. -
Page 21: Transporting Lithium Batteries
PROBLEM POSSIBLE CAUSE SOLUTION The battery is not charged. Charge the battery. The switch is defective. Replace the switch Grass jammed between the deck and Remove battery; check under deck blade. for jams. The mower does not start. The battery is not fully inserted in the Check the connection between the mower. -
Page 22: Lithium-Ion
RECYCLING AND DISPOSING When you decide to get rid of the machine, make sure to follow the local regulation. The batteries used in this mower’s battery pack contain the following toxic and corrosive material: LITHIUM-ION. WARNING Toxic materials must be disposed of in a specified manner in order to prevent contamination of the environment.
