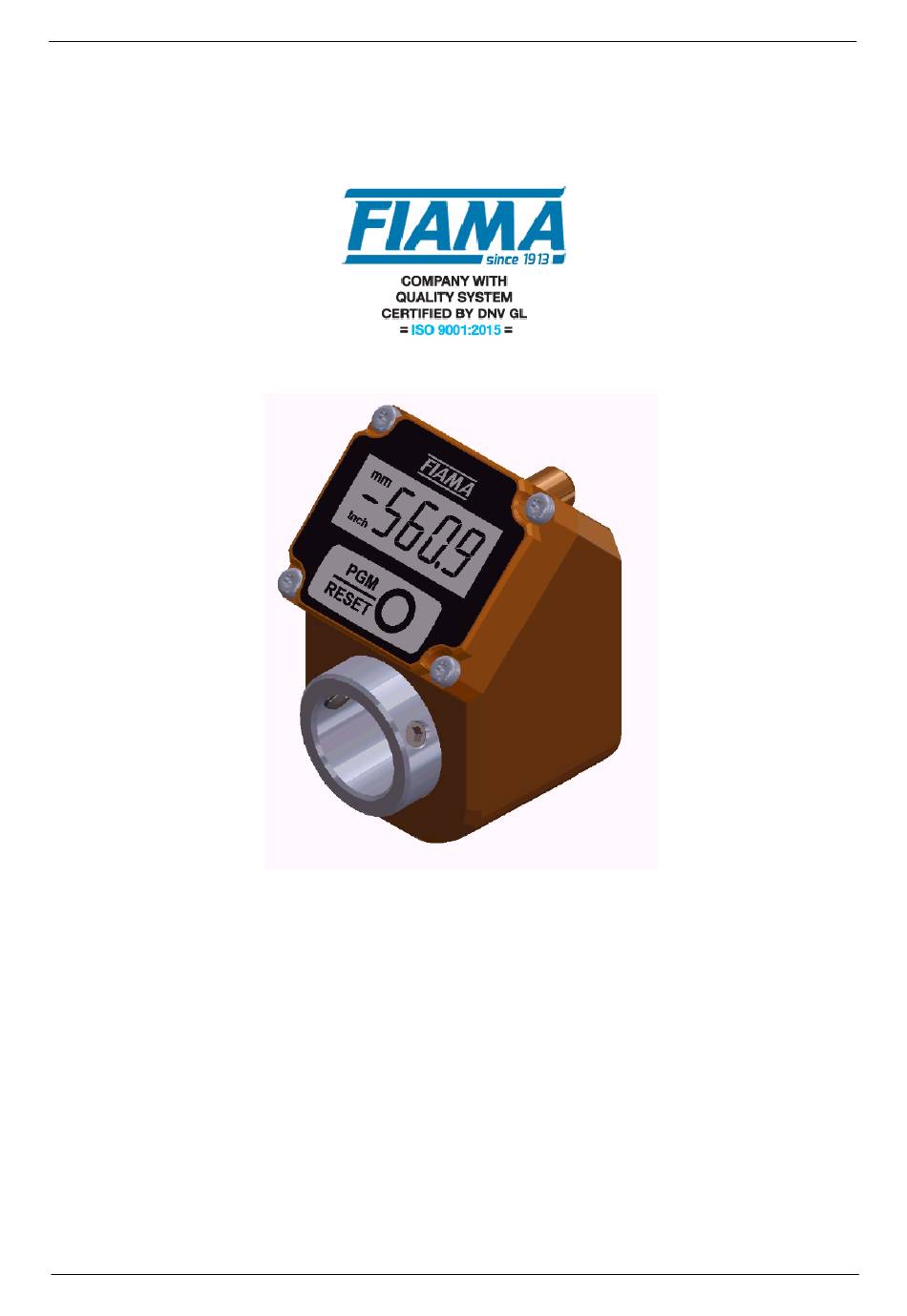

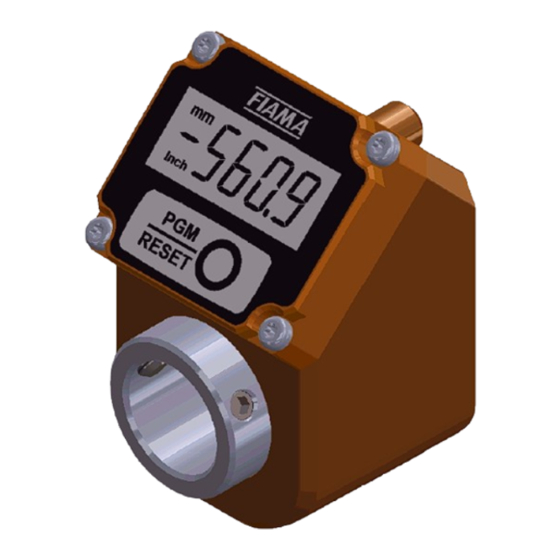

- Page 1 Electronic position indicator USER MANUAL BATTERY-POWERED ELECTRONIC POSITION INDICATOR Date: 30/10/23 File: EP3_ing.doc Page: 1/8...
- Page 2 This manual has been designed by the Manufacturer to provide the necessary information regarding the EP3 instrument to those who are authorized to carry out safely its installation, maintenance, dismantling and disposal. All the necessary information for buyers and planners can be found in the sales catalogue.
- Page 3 Mechanical installation Fit the EP3 through its hollow shaft onto the machine shaft, taking care that the lock pin fits correctly into the Ø6mm hole.
- Page 4 Electronic position indicator Programming Attention. The EP3 has a single key for all programming operations. Within the programming menus it will be possible to enter/modify various configuration parameters. The procedure for entering/modifying a value is as follows: • To change the value of the active (flashing) digit, press the key once (NOT prolonged or long press).
- Page 5 Electronic position indicator 3) Activation mode of the keys This parameter programs the functions associated with pressing the key once, if it is pressed outside the programming menu. The value to be set is a one-digit number for which a specific function is associated with each value, according to the following table.
- Page 6 When the battery runs down, an icon appears on the display. Before proceeding with the replacement, save the current dimension. Enter the menu and set ‘1’ in menu. EP3 will proceed with saving the displayed value. Now the battery can be removed.
- Page 7 Electronic position indicator Overall dimensions Date: 30/10/23 File: EP3_ing.doc Page: 7/8...
- Page 8 Fax. (+39) 0521.672.537 e-mail: info@fiama.it web: www.fiama.it FIAMA srl is not responsible for any damage to persons or things caused by tampering and by incorrect use and in any case which is not conforming to the features of the instrument. Date: 30/10/23 File: EP3_ing.doc...
