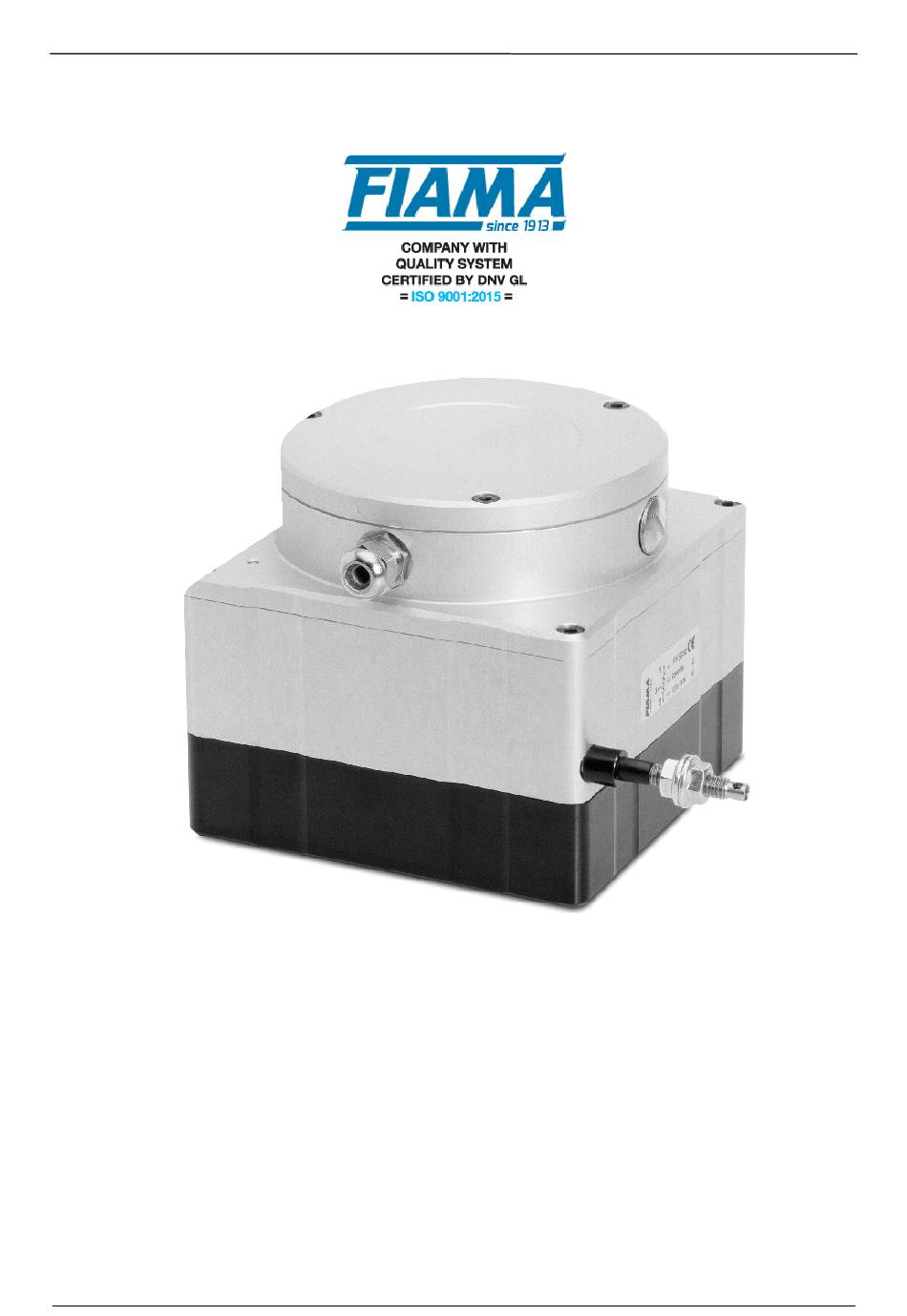

- Page 1 PFA3000T-12000T Potentiometric wire linear transducers USER’S MANUAL AND MAINTENANCE LINEAR POTENTIOMETER WIRE-TRANSDUCER WITH ANALGOUE OUTPUT PFA3000T, PFA4000T, PFA5000T, PFA6000T, PFA8000T, PFA10000T, PFA12000T Data: 13/01/16 File: PFA_T_ing.doc Pagina: 1 di 6...
-
Page 2: Environmental Conditions

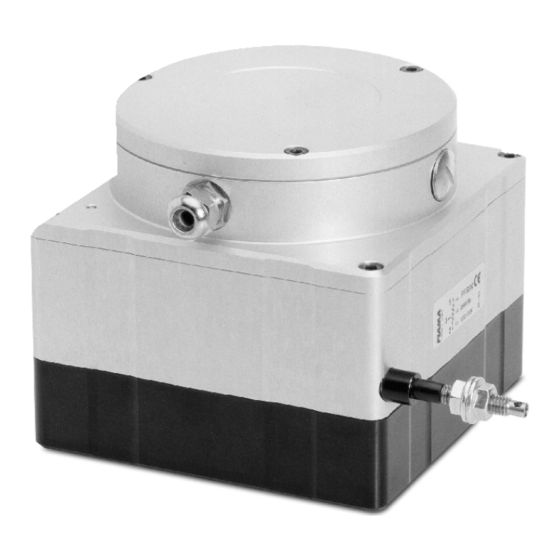

Do not use hydrocarbon solvents (petrol, diluents, etc.): the using of these products could affect the proper functioning of the instrument. Reparations should be done only and exclusively at the FIAMA technical assistance centre. Calibrations and tests It is advisable to calibrate the instrument periodically, once every working year. - Page 3 4-20mA. They are made of a precision rotating potentiometer operated by a winding or unwinding, stainless steel wire. Stroke of 3200 mm for PFA3000T ,4200 mm for PFA4000T ,5200 mm for PFA5000T, 6200 mm for PFA6000T, 7200 mm for PFA7000T, 8200 mm for PFA8000.
-
Page 4: Mechanical Mounting
PFA3000T-12000T Potentiometric wire linear transducers Mechanical mounting The wire potentiometer transducer has to be mounted on a flat surface. The 4 fixing bores, two for every side, allow a practical and fast assembling of the transducer on the carrying structure (see figure). - Page 5 PFA3000T-12000T Potentiometric wire linear transducers Connections entries and exits Physically separate the entry wires from those of the power supply, the exits, and the power connections; use twined and shielded wires with the display connected to the earth only at one point.
- Page 6 Tel. (+39) 0521.672.341 - Fax. (+39) 0521.672.537 – e-mail: info@fiama.it - www.fiama.it FIAMA srl is not responsible for any damage to persons or things caused by tampering and wrong use and in any case that are not consistent with the features of the instrument.
