- Page 1 EP9L Hollow shaft display USER’S MANUAL AND MAINTENANCE ELECTRONIC HOLLOW SHAFT DISPLAY BATTERY SUPPLIED TYPE “EP9L-“ Data: 06/11/18 EP9L_ing.doc pag 1/7...
- Page 2 Do not use hydrocarbon solvents (petrol, diluents, etc.): the using of these products could affect the proper functioning of the instrument. Reparations should be done only and exclusively at the FIAMA technical assistance centre. Calibrations and tests It is advisable to calibrate the instrument periodically, once every working year.

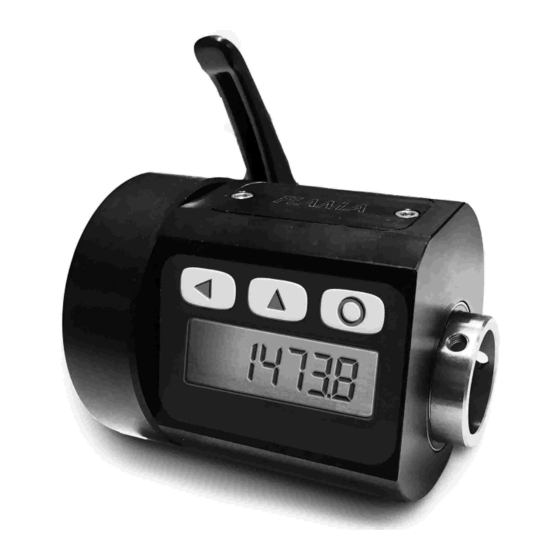

- Page 3 Description The electronic position indicator EP9L, with inner battery supply, includes in the same case a position transducer and a display unit setting up a device for measuring linear or angular shifting, compact, easy assembling, applicable in several type of industry (packaging, woodworking, aluminium, sheet metal, etc.)
- Page 4 EP9L Hollow shaft display blink the decimal pinpoint and with key it can be moved to the wanted position. Confirm with RESET The range allowed is from 0,0001 to 99999 with setting of decimal point position that is, after programming of the last digit on the left, pressing key will blink the decimal pinpoint and with it can be moved to the wanted position.
- Page 5 EP9L Hollow shaft display Finally will appear which is the nominal value for tool 2 (for example the radius of cutter 2): set the correct value and confirm with ENTER RESET In practice , and are the nominal values associated to the three different tools which are used.
- Page 6 EP9L Hollow shaft display Display icons Indicator of flat battery: begins to blink when the level of loading goes under a certain value and when it keeps switched on its necessary to change the batteries within 1 month. Indicator of absolute quota...
- Page 7 Tel. (+39) 0521.672.341 - Fax. (+39) 0521.672.537 – e-mail: info@fiama.it - www.fiama.it FIAMA srl is not responsible for any damage to persons or things caused by tampering and wrong use and in any case that are not consistent with the features of the instrument.
