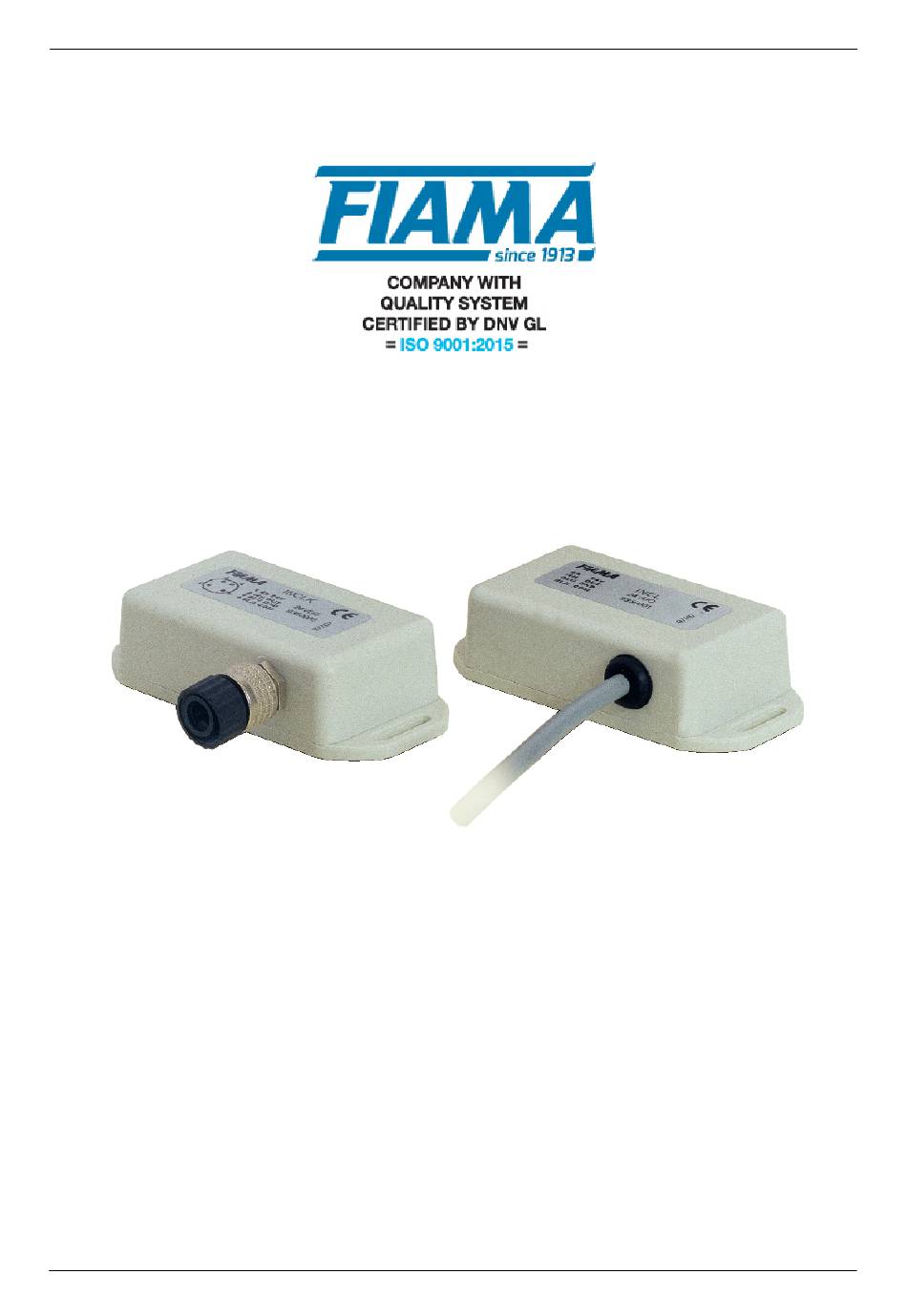

- Page 1 IM60_ Inclinometer USER MANUAL MONOAXES INCLINOMETER IM60_ WITH ANALOGUE OUTPUT 0÷10V, 4÷20mA Pag. 1/4 Data:13/01/16 IM60_ing.doc...
- Page 2 Do not use hydrocarbon solvents (petrol, diluants, etc.): the using of these products could affect the proper functioning of the instrument. Reparations should be done only and exclusively at the FIAMA technical assistance centre. Calibrations and tests It is advisable to calibrate the instrument periodically, once every working year.

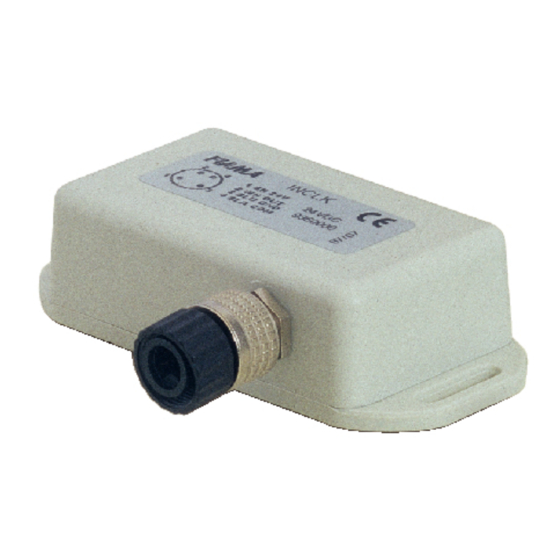

- Page 3 IM60_ Inclinometer Description The transducer IM60 is an inclinometer employed for the survey of angle, with reference to earth’s axis, with measure range is +/-60° and analogue output 4+20mA or 0-10V, linear according to the angle measured. The inclinometer employes a solid state sensor, vibration and shock-proof without parts in motion, therefore is more reliable without loosing accuracy.
- Page 4 Tel. (+39) 0521.672.341 - Fax. (+39) 0521.672.537 – e-mail: info@fiama.it - www.fiama.it FIAMA srl is not responsible for any damage to persons or things caused by tampering and wrong use and in any case that are not consistent with the features of the instrument.
