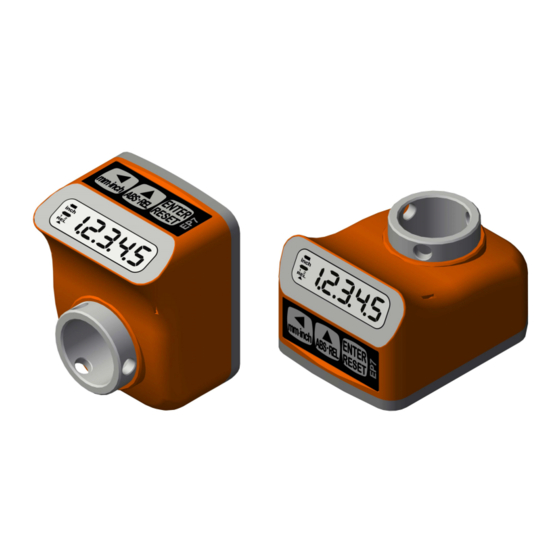

- Page 1 Electronic position indicator USER MANUAL BATTERY-POWERED ELECTRONIC POSITION INDICATOR Date: 13/01/16 File: EP7_ing_rev1.7.doc Page: 1/8...
-
Page 2: Environmental Conditions
This manual has been designed by the Manufacturer to provide the necessary information regarding the EP7 instrument to those who are authorized to carry out safely its installation, maintenance, dismantling and disposal. All the necessary information for buyers and planners can be found in the sales catalogue. -
Page 3: Mechanical Installation
Mechanical installation Fit the EP7 through its hollow shaft onto the machine shaft, taking care that the lock pin fits correctly into the Ø6mm hole. - Page 4 Electronic position indicator Programming To access programming of the parameters, keep pressed until appears on the display. Now press 2 times and 3 zeroes will appear. The first digit on the right will be ENTER RESET blinking: with (digit increase) and (digit selection) insert the pass code which is 273 and confirm with .
-
Page 5: Counting Direction
Electronic position indicator Reset: reset function of the displayed value; after pressing , the displayed value is ENTER RESET set to zero. Preset: preset function of the displayed value; after pressing , the displayed value ENTER RESET becomes equal to the value in the parameter, which can be set immediately after (when the digit on the right is set to 2). -
Page 6: Battery Replacement
Electronic position indicator Now press will appear, press again 2 times and set the correct ENTER RESET ENTER RESET value to display, then confirm with . The display will now show the desired value. ENTER RESET If the required value is zero, instead of the preset function it is possible to use the reset function by setting 1 in the first digit on the right in the parameter so that pressing will bring... - Page 7 Electronic position indicator Dimensions BATTERY INCLINED HOLDER DISPLAY 25° STAINLESS STEEL HOLLOW SHAFT PROGRAMMING BUTTONS DISPLAY DIGIT HEIGHT 7,5mm View B View A Date: 13/01/16 File: EP7_ing_rev1.7.doc Page: 7/8...
- Page 8 Fax. (+39) 0521.672.537 e-mail: info@fiama.it web: www.fiama.it FIAMA srl is not responsible for any damage to persons or things caused by tampering and by incorrect use and in any case which is not conforming to the features of the instrument. Date: 13/01/16 File: EP7_ing_rev1.7.doc...
