Chest Cushion - Lloyd 402 ELEVATION Operation Manual

The chest cushion is designed to accommodate patients with large or small abdomen and has the versatility of being a
stationary or floating cushion.
Height Adjustment of Chest Cushion
1. Lift the rear corners of the cushion.
2. Release the cushion when the desired angle is reached and the cushion will automatically lock
into place.
Tilting Chest Cushion Down
1. Support the cushion at the rear corners.
2. Lift on the Adjustable Chest Handle (No. 1) to release the cushion.
3. Slide the cushion to desired angle.
4. Release the Adjustable Chest Handle (No. 1) first and then the cushion to lock into desired
height.
To Engage Spring Breakaway Chest Cushion
1. Pull on Spring Breakaway Knob (No. 2) (facing the right side of the table) to unlock.
2. The resulting floating effect will allow the cushion to gently drop under pressure and spring
back when released.
To Lock the Spring Breakaway Cushion
1. Gently pull up on chest cushion to full horizontal position, then Push on Spring Breakaway
Knob (No. 2) (facing the right side of the table) to lock.

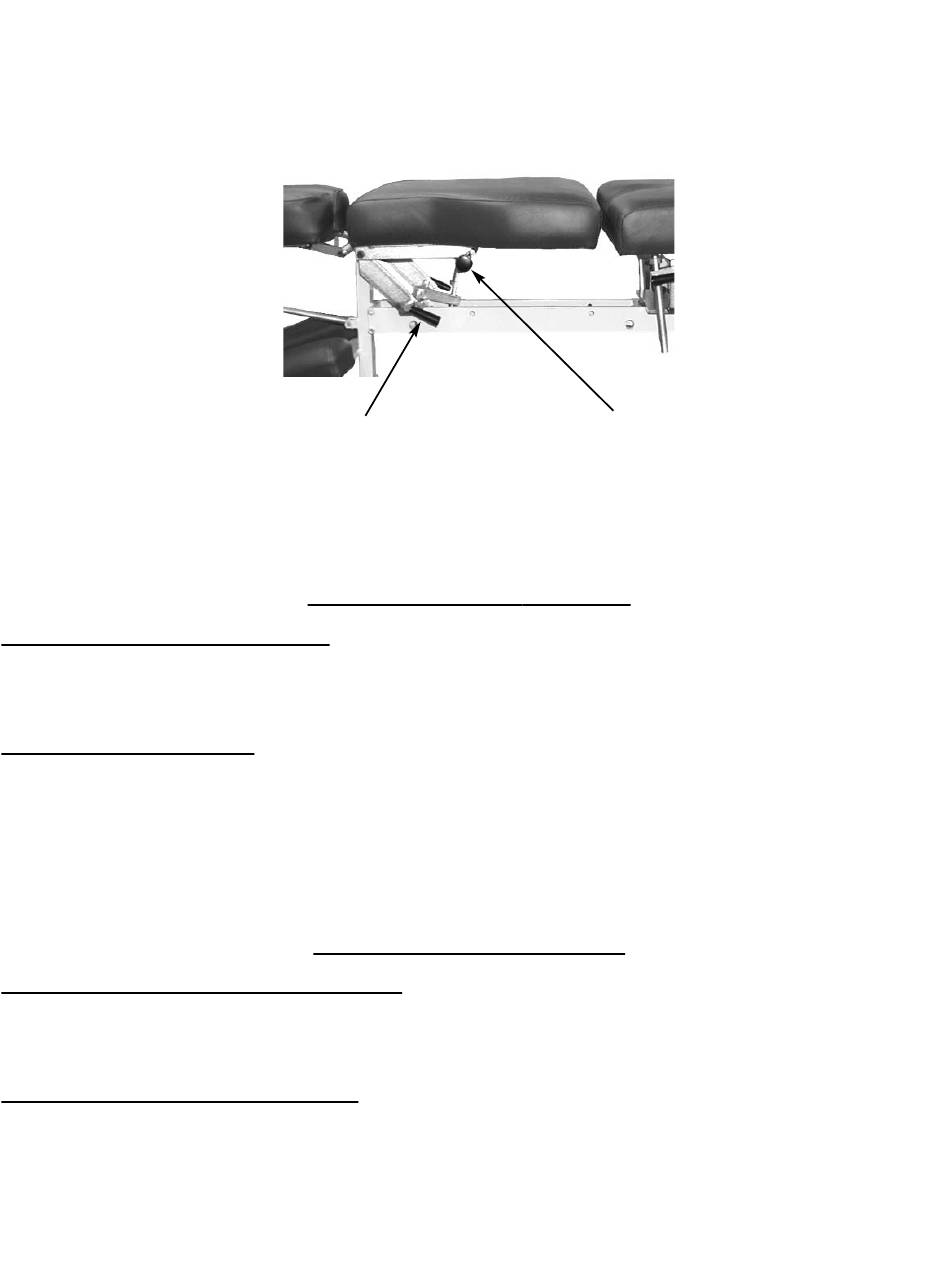

Chest Cushion

#1 Adjustable Chest
Handle
Standard - Adjustable Tilting Chest
Optional Spring Breakaway Chest
#2 Spring Breakaway
Knob
Page 9
