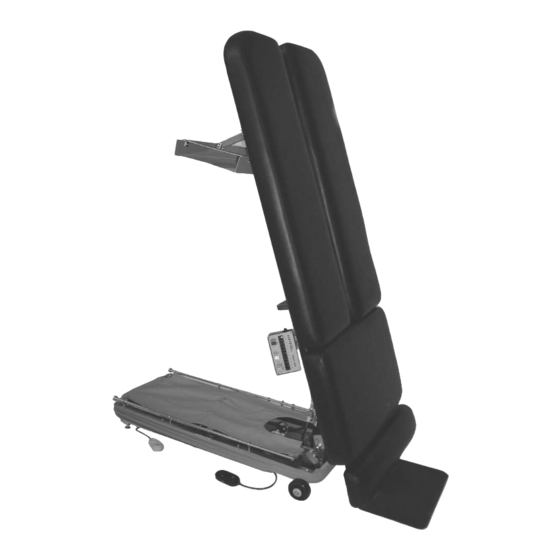

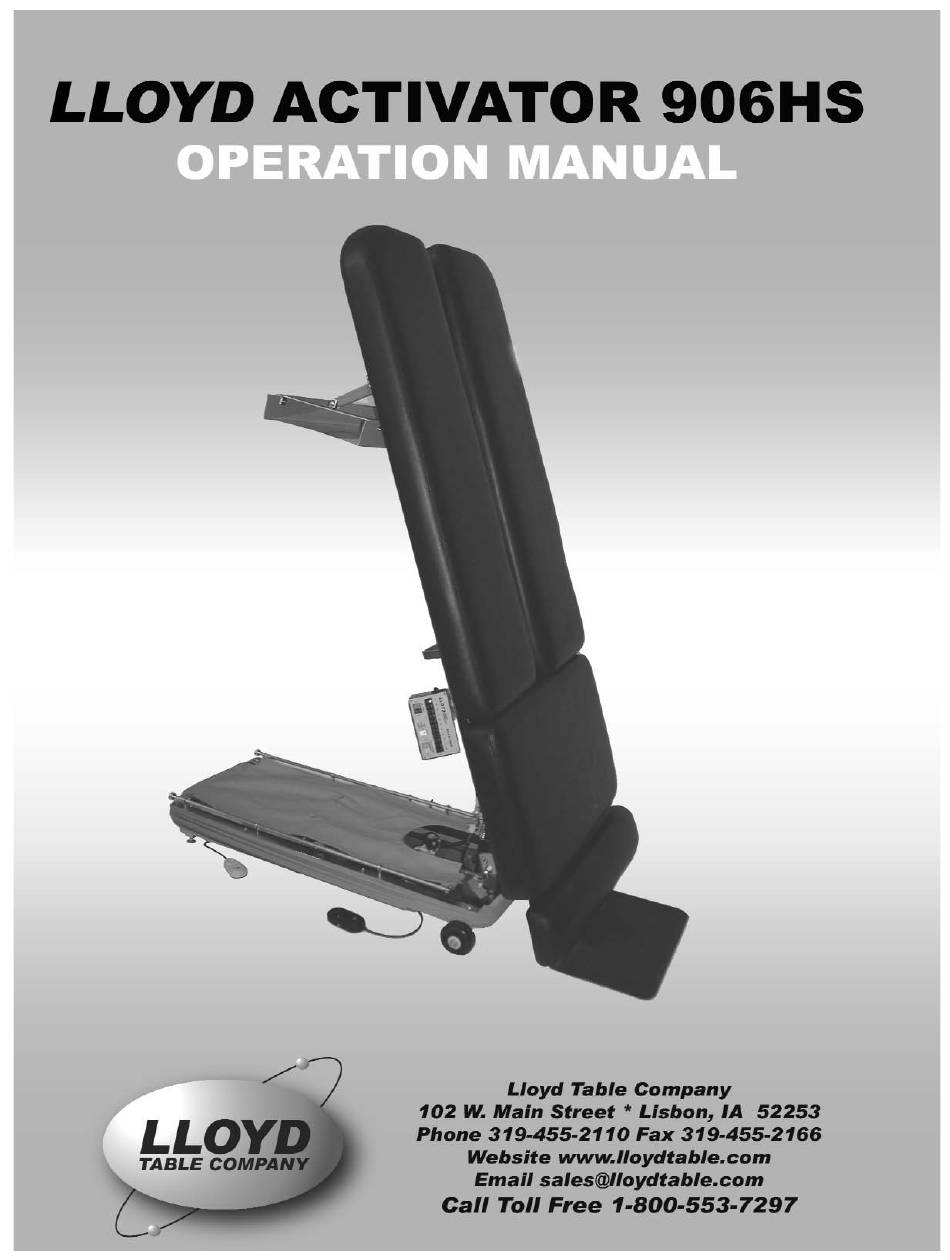

Lloyd ACTIVATOR 906HS Operation Manual
  1. Manuals
  2. Brands
  3. Lloyd Manuals
  4. Medical Equipment
  5. ACTIVATOR 906HS
  6. Operation manual

Lloyd ACTIVATOR 906HS Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACTIVATOR 906HS and is the answer not in the manual?

Questions and answers

Related Manuals for Lloyd ACTIVATOR 906HS

Summary of Contents for Lloyd ACTIVATOR 906HS

  • Page 2: Table Of Contents

    CONTENTS OPERATIONS PAGE Safety and Maintenance............... 1 - 2 Ankle Rest..................Master Power Switch ..............Tilt Safe Guard / Foot Pedal Control .......... Height Select Panel..............Error Code Tables ............... 19-21 PARTS / ASSEMBLY PAGE Tilt Frame..................Base Frame..................Adjustable Ankle Cushion..............Foot Stand ..................
  • Page 3 WELCOME!! Lloyd Table Company, a proud supporter of today’s chiropractors, has established the finest line of chiropractic tables in the world. Table products unique in versatility and function, designed to meet your needs. SAFETY Concerned for a safe working and treatment environment, Lloyd Table Company asks that you follow the safety tips below.
  • Page 4 MAINTENANCE The following steps should be performed on a regular basis to maintain your Lloyd table in a smooth operating condition and to assure its long life and top quality appearance. An initial inspection and periodic future inspections should be made to insure that nuts and bolts have not loosened in shipping or during daily operations.

  • Page 5: Ankle Rest

    Ankle Rest # 1 Lock Lever Ankle Rest Adjustment Vertical Ankle Rest To Raise the Ankle Rest Simply lift on the sides of the Ankle Rest Cushion. Once the desired height is obtained the cushion will automatically lock into position when released.

  • Page 6: Tilt Safe Guard / Foot Pedal Control

    Tilt Safeguard Left Face Cushion Tilt Safety Switch Foot Pedal Control Directional Pedal The directional pedals have the dual function of raising and lowering table in elevation and hylo. The directional pedals can be operated in auto / semi auto / manual (page 14). Hylo Corded Side (Orange) - Lowers the table from vertical to horizontal height.

  • Page 7: Height Select Panel

    Height Select Panel #1 Height Select #6 Speed Control Elevation / Tilt #3 Unload Switch Horz. Down / Tilt Up Switch #5 Elevation Height Up / Down #4 Load Switch Horz. up / Tilt Down Switch #2 Mode Switch Auto / Semi Auto / Manual Height Select (No.
  • Page 8 Height Select Panel #6 Speed Control Elevation / Tilt Unload button (yellow) Load Button (orange) Down Button (green) #7 Mute/Calibration Button Up Button (blue) Mute Button The mute button is a on and off switch, used to control the audable beeper of the control switches. Pushing the button and releasing will turn the beeper sound on or off .
  • Page 9 Height Default Setting The table’s elevation height is set at a default of twenty-two inches from the factory. The setting default automatically brings the table to the same set height when turned on each time. The Height Default can be recalibrated to meet the needs of a doctor’s personal heigth preference.
  • Page 10 GALAXY 906HS Parts & Assembly Section...
  • Page 11 ACTIVATOR CUSHION SETS DP Pelvic / Std. Ankle DP Pelvic / Wedge Ankle 698597 28” ACT. HYLO 698595 28” ACT. HYLO 698609 26” ACT. HYLO 698594 26” ACT. HYLO Page 8...

  • Page 12: Tilt Frame

    ACTIVATOR 906 TILT FRAME FRAME ASSEMBLY (601410) ITEM PART N0. DESCRIPTION QTY. 55400 TILT FRAME ASSEMBLY 21310 CAP NUT, ½-20UNC 20230 ELEVATOR BOLT, 5/16-18 UNC X 1 ¼ 22820 ROLLER BEARING 20532 HEX. HD. BOLT, ½-20UNC X 2 53221 SADDLE FRAME ASSEMBLY 22920 BUSHING FLANGE, ¾...
  • Page 13 906 BASE FRAME ASSEMBLY ITEM PART N0. DESCRIPTION QTY. 53225 BASE FRAME ASS’Y 53296 AXLE STUD, 3/8 RD X 1 3/8 22904 FLANGE BUSHING, ¾ ID 20021 SOCKET HD BOLT, ¼-20UNC X 1 21955 PLASTIC WASHER, .765 IDX 1¼ OD 53223 ROCKER ARM ASSEMBLY 53222...
  • Page 14 ANKLE REST ADJUSTABLE HEIGHT ITEM PART N0. DESCRIPTION QTY. 40410 ANKLE REST CUSHION 56507 BASE PLATE 30774 COMPRESSION SPRING 56519 LOCK HANDLE 56525 GUIDE BLOCK 56518 GUIDE ROD 22468 SCREW, WOOD, RD HEAD, #10 X 7/8 24236 GUARD, TEE HANDLE 22610 PIN, CLEVIS, 5/16 X 7/8 56539...

  • Page 15: Foot Stand

    FOOT STAND ASSEMBLY ITEM PART N0. DESCRIPTION QTY. 611130 FOOT PLATE ASS’Y 22013 BUTTON HD, MACHINE SCREW, ¼-20 UNC X ½ 20613 SOCKET HC. SHLD. BOLT, 5/8 –11 UNC X ¾ 53313 FOOT STAND PIVOT FRAME ASS’Y 22520 ROLLER BEARING ½ ID 53259 BUSHING, 3/8 ID X ½...
  • Page 16 BELLOWS MOTOR COVER ASSEMBLY ( 616010) ITEM PART N0. DESCRIPTION QTY. 699220 BELLOWS COVER 53317 BRACKET BELLOWS 699080 COVER, CIRCUIT BOARD 699015 COVER, MOTOR 35940 CLIP, NYLON 53342 RAIL, BELLOWS 22605 MALE SNAP 21420 HEX NUT, #8-32 UNC 21105 CAP NUT, #8-32 UNC 53386 CONNECTING PIN, ¼...

  • Page 17: Hydraulics

    HYDRAULICS (613211) ITEM PART N0. DESCRIPTION QTY. 624736 TILT CYLINDER ASS’Y 56971 STOP COLLAR 7/16 ID 30782 COMPRESSION SPRING ½ ID X 6 53393 EYE-ROD, 7/16RD. X 13 11/16 53380 EYE-ROD, 7/16. X 15 1/16 53254 COMPRESSION SPRING, ½ ID X 5 45223 HYDRAULIC HOSE, 3/16 X 13 623559...
  • Page 18 ELECTRICAL ASSEMBLY (614391) Page 15...

  • Page 19: Electrical

    ELECTRICAL ASSEMBLY ((614391) ITEM PART N0. DESCRIPTION QTY. 45039 CIRCUIT BOARD ASS’Y, IO CONTROL 45158 CABLE ASS’Y, LOWER SOLNOID BLOCK 45156 CABLE ASS’Y, 24V 44226 CABLE ASS’Y, UPPER SOLNOID BLOCK 43980 HEIGHT SENSOR ASS’Y 44235 CABLE ASS’Y, TILT SENSOR 44234 CABLE ASS’Y, HS BOX 45075 WIRE HARNESS ASS’Y, IO CONTROL...
  • Page 20 PELVIC T-DROP ASSEMBLY (619290) Page 17...
  • Page 21 PELVIC T-DROP ASSEMBLY (619290) ITEM PART N0. DESCRIPTION QTY. 56158 TEE WEDGE ASS’Y 20022 HEX HD. BOLT, ¼-20 X 1 55303 SPACER, ¼ X ½ X 1.00 55302 END CAP PLATE, ¼ X ¾ X 1.00 22370 FLAT HD. MACHINE SCREW, 3/8-24UNF X ¾ 55307 HINGE BLOCK 20054...
  • Page 22 Trouble Error Codes Error codes are a representation of blinking lights that are emitted on the first eight height selections (18”-32”) on the Height Selection Panel. A series of blinking lights will occur if the table fails to complete a calibration cycle. If the table stops running it will follow with a continuous blinking light code.
  • Page 23 ** 0 - represents blinking light Fault Codes generated during max raise speed test. Code Explanation Number Fault Lower time out - Horizontal not reached 0100 1001 Lower time out - Elevation Min not reached 0100 1010 PWM value too high 0100 1011 Fault Codes generated during min raise speed test.
  • Page 24 ** 0 - represents blinking light Fault Codes generated during bleed tilt up test. Code Explanation Number Fault Tilt Time out - Horizontal not reached 1001 0001 PWM value too low 1001 0010 Fault Codes generated during min tilt up speed test. Code Explanation Number Fault Tilt down time out - Horizontal not reached...
