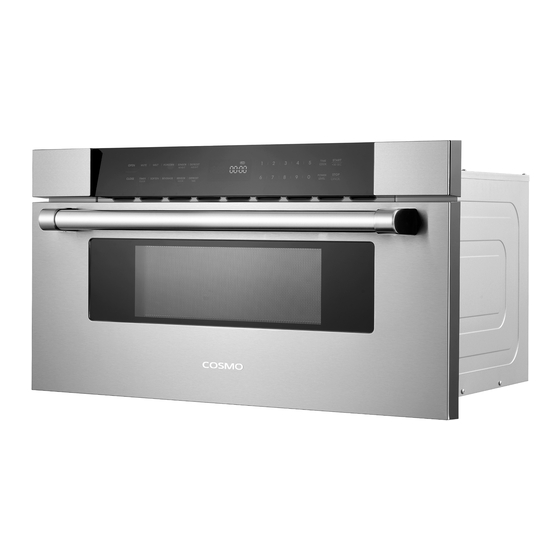

MICROWAVE DRAWER
COS-MWD3012GSS
30 in. BUILT-IN MICROWAVE DRAWER
INSTALLATION INSTRUCTIONS
IMPORTANT:
READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
INSTALLER:
PLEASE LEAVE THESE INSTRUCTIONS WITH THIS
UNIT FOR THE OWNER.
OWNER:
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
Rev. 23.07
Advertisement
Table of Contents
Related Manuals for Cosmo COS-MWD3012GSS
Summary of Contents for Cosmo COS-MWD3012GSS
- Page 1 MICROWAVE DRAWER COS-MWD3012GSS 30 in. BUILT-IN MICROWAVE DRAWER INSTALLATION INSTRUCTIONS IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. FOR RESIDENTIAL USE ONLY. INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THIS UNIT FOR THE OWNER. OWNER: PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. Rev. 23.07...
- Page 2 COSMO Appliances are designed according to the strictest safety and performance standard for the North American market. We follow the most advanced manufacturing philosophy.
-
Page 3: Table Of Contents
TABLE OF CONTENTS MICROWAVE DRAWER SAFETY ..................4 Important Safety Instructions ..................5 INSTALLATION REQUIREMENTS ................... 6 Location Requirements ....................6 Clearance..........................7 Product Dimensions ......................8 INSTALLATION INSTRUCTIONS ..................9 Unpack Microwave Drawer .................... 9 Install Anti-tip Block ......................10 Grounding Instructions .................... -
Page 4: Microwave Drawer Safety
MICROWAVE DRAWER SAFETY READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS If the information in this manual is not followed exactly, a fire or WARNING electrical shock may result that could cause property damage, personal injury or death. • Installation and service must be • Stepping, leaning or sitting on the performed by a qualified installer. -
Page 6: Installation Requirements
INSTALLATION REQUIREMENTS LOCATION REQUIREMENTS IMPORTANT: Check the opening where the microwave drawer will be installed. The location must provide: • Contact surface must be solid and level. • Pay special attention to the floor on which the microwave drawer will sit. The floor of the opening should be constructed of plywood strong enough to support the weight of the drawer (about 100 pounds). -
Page 7: Clearance
CLEARANCE GIVEN DIMENSIONS ARE MINIMUM CLEARANCES. Suggested electrical Anti-tip outlet location block 5" Allow ³⁄ " (5 mm) overlap 14 ¹³⁄ " (376 mm) to bottom of 14 ¹³⁄ " anti-tip block (376 mm) opening height 23 ¹⁄ " (597 mm) 36"... -
Page 8: Product Dimensions
PRODUCT DIMENSIONS 1 ⁄ " 21 ⁄ " (40 mm) (550 mm) 16" 2 ³⁄ " (406 (60 mm) 15 ⁄ " (371 mm) 21 ⁄ " (550 mm) 29 ¹ / " (760 mm) 1 ⁄ " (37 mm) -
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS UNPACK MICROWAVE DRAWER WARNING EXCESSIVE WEIGHT HAZARD • Use two or more people to move and install microwave drawer. • Failure to do so can result in back or other injury. IMPORTANT: To avoid damage to the microwave drawer, do not grip or use the door or door handle while the microwave drawer is being handled. -
Page 10: Install Anti-Tip Block
INSTALL ANTI-TIP BLOCK To reduce the risk of tipping of the drawer, the anti-tip block must be provided and properly installed by the installer. The anti-tip block prevents serious injury that might result from spilled hot liquids. Anti-tip block The anti-tip block must be installed near the rear of the microwave drawer top surface, which is 14 13/16 inches above the floor on which the microwave drawer will sit. -
Page 11: Grounding Instructions
GROUNDING INSTRUCTIONS WARNING ELECTRIC SHOCK HAZARD • Plug into a grounded 3-prong outlet. • Do not remove the ground prong. • Do not use an adapter or an extension cord. • Failure to do so can result in death, fire, or electrical shock. IMPORTANT: •... -
Page 12: Install Microwave Drawer
The electrical requirements are a 120 Volt, 60 Hz, AC only, 15 amp or more protected electrical supply. It is recommended that a separate circuit serving only this appliance be provided. NOTE: If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person. - Page 13 IMPORTANT Do Not Return This Product To The Store If you have a problem with this product, please contact COSMO Customer Support at +1 (888) 784-3108 DATED PROOF OF PURCHASE, MODEL #, AND SERIAL # REQUIRED FOR WARRANTY SERVICE. IMPORTANT Ne pas Réexpédier ce Produit au Magasin...
- Page 14 MEMO...
- Page 15 MEMO...
- Page 16 APPLIANCES Cosmo is constantly making efforts to improve the quality and performance of our products, so we may make changes to our appliances without updating this manual. Electronic version of this manual is available at: www.cosmoappliances.com...
