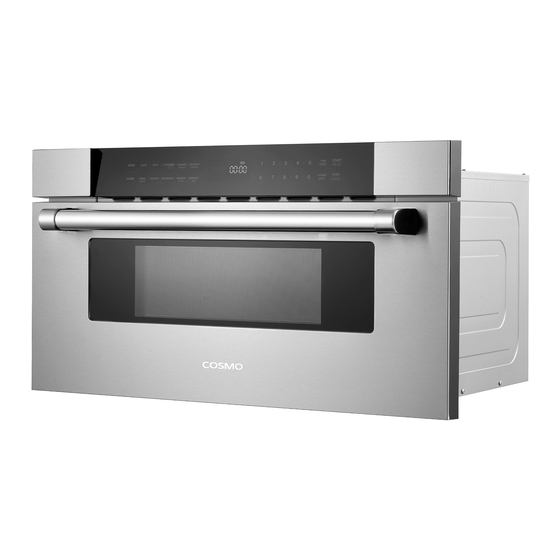

Cosmo COS-MWD3012GSS User Manual

30 in. built-in microwave drawer
Hide thumbs Also See for COS-MWD3012GSS:
Table of Contents

Advertisement

Quick Links

Download this manual
MICROWAVE DRAWER
COS-MWD3012GSS
30 in. BUILT-IN MICROWAVE DRAWER
USER MANUAL
IMPORTANT:
READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
INSTALLER:
PLEASE LEAVE THESE INSTRUCTIONS WITH THIS
UNIT FOR THE OWNER.
OWNER:
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
Rev. 23.07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COS-MWD3012GSS and is the answer not in the manual?

Questions and answers

Related Manuals for Cosmo COS-MWD3012GSS

Summary of Contents for Cosmo COS-MWD3012GSS

  • Page 1 MICROWAVE DRAWER COS-MWD3012GSS 30 in. BUILT-IN MICROWAVE DRAWER USER MANUAL IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. FOR RESIDENTIAL USE ONLY. INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THIS UNIT FOR THE OWNER. OWNER: PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. Rev. 23.07...
  • Page 2 COSMO Appliances are designed according to the strictest safety and performance standard for the North American market. We follow the most advanced manufacturing philosophy.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS MICROWAVE DRAWER SAFETY ..................4 Important Safety Instructions ..................5 PRODUCT OVERVIEW ....................9 Microwave Drawer Layout ....................9 Control Panel ........................10 FEATURES ........................11 Clock ........................... 11 Timer ........................... 11 USING THE MICROWAVE DRAWER ................12 Control Lock ........................

  • Page 4: Microwave Drawer Safety

    MICROWAVE DRAWER SAFETY READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol.

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS If the information in this manual is not followed exactly, a fire or WARNING electrical shock may result that could cause property damage, personal injury or death. • Read all instructions before using • As with any appliance, close the microwave oven.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS • To reduce the risk of fire in the oven • Liquids, such as water, coffee, or cavity: tea are able to be overheated beyond the boiling point without Do not overcook food. appearing to be boiling. Visible Carefully attend the bubbling or boiling when the microwave oven when paper,...
  • Page 7 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY • • Use care when cleaning the vent- Do not operate the oven if it is hood filter. Corrosive cleaning damaged. It is particularly agents, such as lye-based oven important that the oven door close cleaners, may damage the filter.
  • Page 8 GROUNDING INSTRUCTIONS For all cord connected appliances: The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug.

  • Page 9: Product Overview

    PRODUCT OVERVIEW MICROWAVE DRAWER LAYOUT A. Control Panel E. Drawer Window B. Rating Plate F. Drawer Guide C. Microwave Oven Cavity G. Vent D. Drawer Handle H. Mounting Flange ACCESSORIES Defrosting Rack • Only to be used in defrosting function. •...

  • Page 10: Control Panel

    CONTROL PANEL 1. OPEN 10. SENSOR COOK 2. CLOSE 11. DEFROST WEIGHT 3. MUTE 12. DEFROST TIME 4. TIMER/CLOCK 13. DISPLAY 5. MELT 14. NUMBER PADS 6. SOFTEN 15. TIME COOK 7. POPCORN 16. POWER LEVEL 8. BEVERAGE 17. START/+30 SEC 9.

  • Page 11: Features

    FEATURES CLOCK The clock is a 12-hour clock (01:00 – 12:59). In the process of clock setting, if the STOP/CANCEL keypad is pressed or if there is no operation within 1 minute, the microwave drawer will go back to former setting automatically. Setting the Clock 1.

  • Page 12: Using The Microwave Drawer

    USING THE MICROWAVE DRAWER CONTROL LOCK The control panel can be locked to avoid unintended use of the microwave drawer. NOTE: • The control lock can only be activated while the microwave drawer or the timer is idle or inactive. To Lock Control Panel: •...

  • Page 13: Cookware And Dinnerware

    COOKWARE AND DINNERWARE Microwave-Safe • Browning dish (Follow manufacturer recommendations) • Ceramic glass, glass • Earthenware (Follow manufacturer recommendations) • Melamine (Follow manufacturer recommendations) • Paper towels, paper plates, napkins (Use non-recycled paper) • Plastic wraps, bags, covers, dinnerware, containers (Follow manufacturer recommendations) •...

  • Page 14: Manual Cook (Time Cook)

    MANUAL COOK (TIME COOK) The microwave drawer can accept cooking time up to 99 minutes and 99 seconds (99:99). Always enter the seconds even if they are both zeros. 1. Press TIME COOK after placing food and closing the drawer. 2.

  • Page 15: Melt

    MELT Touch MELT Melt Options Preset Portion Size Display 1 stick 1 buTT 1 time Butter/Margarine Select: 2 sticks 2 buTT 3 sticks 3 buTT 4 oz 4 oz Choc 2 times Chocolate Select: 8 oz 8 oz Choc 8 oz 8 oz CHEE 3 times Cheese...

  • Page 16: Popcorn

    To Use Soften Program: 1. Place food and close the drawer. 2. Press SOFTEN repeatedly to toggle and select different Soften options. 3. Press the number within the preset range to select the best matching portion size. (e.g. Enter 2 for 2 sticks of butter or 16 oz of ice cream.) 4.

  • Page 17: Sensor Reheat/Cook

    SENSOR REHEAT/COOK The built-in sensor detects the vapor (moisture and humidity) emitted from the food as it heats, and adjusts the cooking times and power levels for various foods and quantities. You can reheat many foods weighted from 4 oz. to 36 oz. and don’t need to calculate cooking time or power level.

  • Page 18: Sensor Cook

    To Use Sensor Reheat Program: 1. Place food and close the drawer. 2. Press SENSOR REHEAT repeatedly to toggle and select different Sensor Reheat options. (Or press the number within the options range after pressing SENSOR REHEAT once.) 3. Press START. SENSOR COOK Touch SENSOR COOK Sensor Cook Options...
  • Page 19 To Use Weight Defrost Program: (Between 0.1 and 6.0 pounds) 1. Press DEFROST WEIGHT after placing food and closing the drawer. 2. Press the numbers to enter the food weight in tenths of a pound. For examples: - To enter 0.5 pounds, press the numbers 0 and 5. - To enter 3.0 pounds, press the numbers 3 and 0.

  • Page 20: Time Defrost

    TIME DEFROST Uses reduced power (30% power level) to defrost food without cooking it, and allows thawing frozen food quicker than in the fridge. To Use Time Defrost Program: (Up to 99 minutes and 99 seconds) 1. Press DEFROST TIME after placing food and closing the drawer. 2.

  • Page 21: Microwave Drawer Care

    MICROWAVE DRAWER CARE GENERAL CLEANING To avoid damage to the microwave drawer caused by arcing due to soil buildup, keep cavity, drawer, microwave inlet cover, and area where the drawer touches the frame clean. Always follow label instructions on cleaning products. Clean with mild soap, water, and a soft cloth or sponge or as indicated below.
  • Page 22 Microwave Drawer Guides • Remove the food crumbs from the microwave drawer guides. Wipe with a soft dry cloth in order to keep the microwave drawer opening and closing smoothly. Waveguide Cover • Keep the waveguide cover located on the inside top of the microwave drawer area clean to assure good microwave performance.

  • Page 23: Troubleshooting

    TROUBLESHOOTING First try the solutions suggested here that may help you avoid a service call. If you need further assistance or more recommendations, refer to the limited warranty page or the contact information at the end of this manual. If you experience Recommended Solutions Microwave drawer Check the following:...
  • Page 24 If you experience Recommended Solutions Unevenly cooked • Turn over or stir food midway through the cooking. food • Completely defrost food before cooking. • Use appropriate cooking time and power level. • Use microwave-safe cookware only. Overcooked food • Use appropriate cooking time and power level.

  • Page 25: Limited Warranty

    LIMITED WARRANTY WARRANTY AND SERVICE TO RECEIVE WARRANTY SERVICE, YOUR PRODUCT MUST BE REGISTERED. TO REGISTER AND REVIEW FULL WARRANTY DETAILS, VISIT: WWW.COSMOAPPLIANCES.COM/WARRANTY SCAN TO REGISTER CUSTOMER SUPPORT TO CHAT WITH US LIVE FOR ASSISTANCE, VISIT: WWW.COSMOAPPLIANCES.COM/CHAT SCAN TO CHAT...
  • Page 26 IMPORTANT Do Not Return This Product To The Store If you have a problem with this product, please contact COSMO Customer Support at +1 (888) 784-3108 DATED PROOF OF PURCHASE, MODEL #, AND SERIAL # REQUIRED FOR WARRANTY SERVICE. IMPORTANT Ne pas Réexpédier ce Produit au Magasin...
  • Page 27 MEMO...
  • Page 28 APPLIANCES Cosmo is constantly making efforts to improve the quality and performance of our products, so we may make changes to our appliances without updating this manual. Electronic version of this manual is available at: www.cosmoappliances.com...
