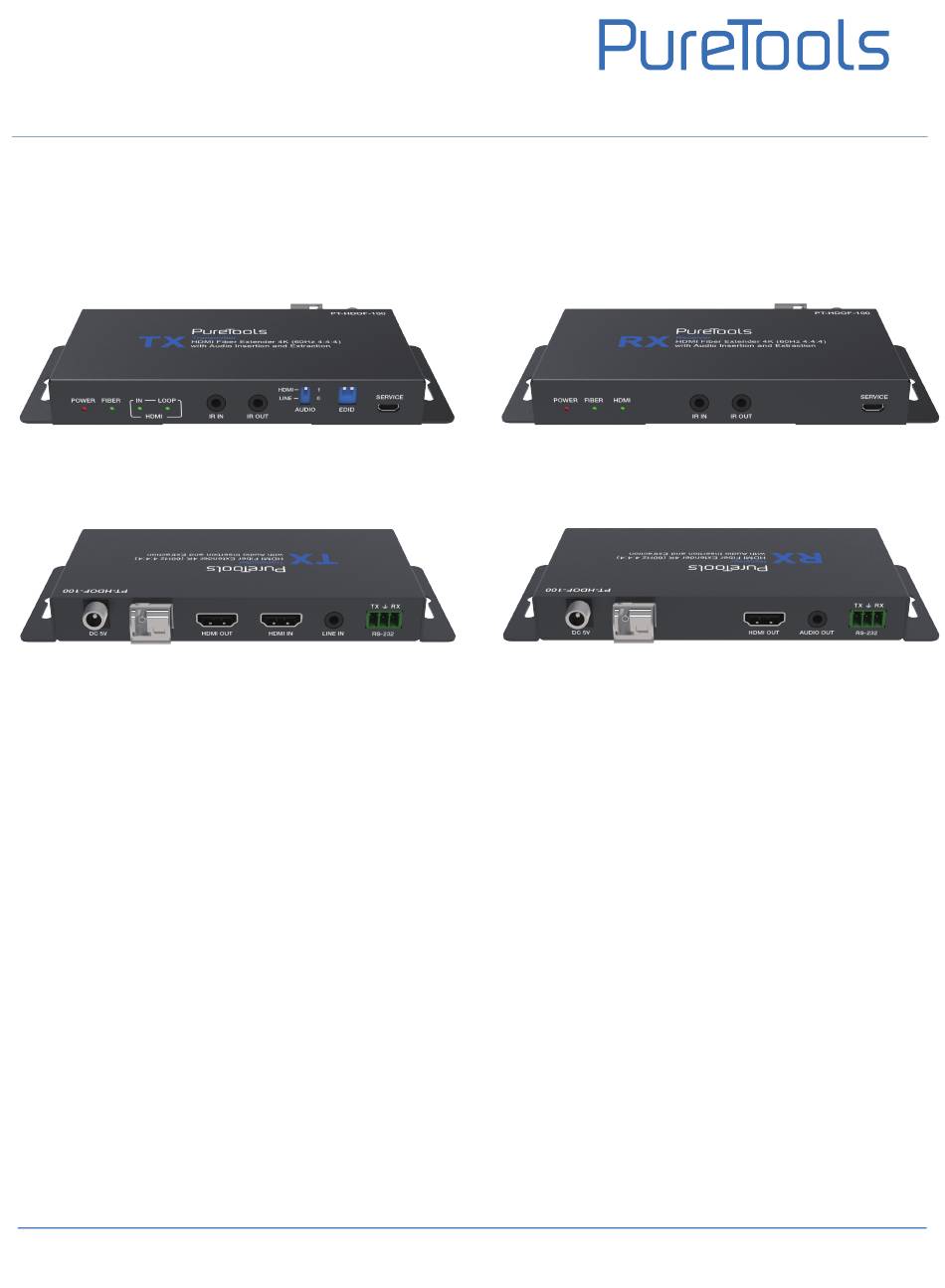

- Page 1 User Manual PT-HDOF-100 User Manual HDMI Fiber Extender 4K (60Hz 4:4:4) with Audio Insertion and Extraction PT- HDOF-100 Model Designed in Germany VersionV1.0 © 2022 PureLink GmbH All rights reserved.
- Page 2 User Manual PT-HDOF-100 Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-HDOF-100 REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDOF-100 complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT- HDOF-100 complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-HDOF-100 SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Table Of Contents
User Manual PT-HDOF-100 Content 1. Product Introduction......................1.1 Introduction........................1.2 Features..........................1.3 Package List........................2. Panel Description........................2.1 Transmitter panel......................2.2 Receiver panel......................... 3. Specification........................... 4. Optical Fiber Module......................5. IR Pin Definition........................6. System Diagram........................7. After-Sales Service....................... Asking for Assistance....................... -
Page 6: Product Introduction
1. Product Introduction 1.1 Introduction This PT-HDOF-100 HDMI Extender can extend HDMI signal up to 10 km (over single-mode fiber cable) . It supports video resolution up to 4K@60Hz 4:4:4. Transmitter supports loop output, audio embedding and EDID management function. -
Page 7: Panel Description
User Manual PT-HDOF-100 Note: Please contact your distributor immediately if any damage or defect in the components is found. 2. Panel Description 2.1 Transmitter Layout HDMI SERVICE LINE POWER FIBER LOOP AUDIO EDID HDMI IR IN IR OUT DC 5V... -
Page 8: Receiver Panel
User Manual PT-HDOF-100 Name Description Dial the switch to set EDID. 11: Copy RX HDMI OUT EDID DIP 10: Copy TX HDMI LOOP OUT switch 01: 4K60_2CH 00: 1080P_2CH SERVICE port Firmware update port. DC 5V/1A power supply port 9 DC 5V Connect the Transmitter optical fiber module, and transmit... - Page 9 User Manual PT-HDOF-100 Name Function Description The power indicator is always on when the Receiver is Power LED powered on. The optical fiber connection indicator is always on when the FIBER LED Transmitter and Receiver establish a normal optical fiber signal connection.
-
Page 10: Specification
User Manual PT-HDOF-100 3. Specification Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18Gbps Video Resolution 480i ~1080p50/60Hz, 4K@24/30Hz, 4k@60Hz Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 Color Depth 8-bit, 10-bit, 12-bit LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS,... -
Page 11: Optical Fiber Module
User Manual PT-HDOF-100 Mechanical Housing Metal Enclosure Color Black Transmitter / Receiver: Dimensions 134mm [W] x 68mm [D] x 18mm [H] Weight Transmitter: 280g, Receiver: 278g Input: AC 100 - 240V 50/60Hz Power Supply Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption Transmitter: 3.85 W (Max), Receiver: 2.7 W (Max) -
Page 12: Ir Pin Definition
User Manual PT-HDOF-100 5. IR Pin Definition Recommended IR Receiver and Blaster pin’s definition as below: IR RECEIVER IR BLASTER IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding Note: The frequency of the blaster and receiver component and the pin out of the... -
Page 13: System Diagram
User Manual PT-HDOF-100 6. System Diagram IR Receiver IR Blaster HDMI SERVICE LINE POWER FIBER LOOP AUDIO EDID HDMI IR IN IR OUT Transmitter DC 5V HDMI OUT HDMI IN LINE IN RS-232 FIBER Power Supply DVD or Blu-ray Player... - Page 14 User Manual PT-HDOF-100 Usage Precaution • Make sure all components and accessories included before installation. • System should be installed in a clean environment with proper temperature and humidity. • All of the power switches, plugs, sockets, and power cords should be insulated and safe.
-
Page 15: After-Sales Service
User Manual PT-HDOF-100 7. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. Product Limited Warranty: This workmanship for three years (The Proof of... -
Page 16: Asking For Assistance
User Manual PT-HDOF-100 Asking for Assistance Technical Support: Phone: +49 5971 800299 Fax: +49 5971 800299 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10 D - 48432 Rheine www.purelink.de...
