- Page 1 User Manual PT-HDBT-210 User Manual 18G HDMI Extender with Audio Breakout Model PT-HDBT-210 Designed in Germany © 2019 PureLink GmbH All rights reserved. V1.2...
-
Page 2: Fcc Statement
User Manual PT-HDBT-210 Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-HDBT-210 REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDBT-210 complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-210 complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
User Manual PT-HDBT-210 SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ... -
Page 5: Product Introduction

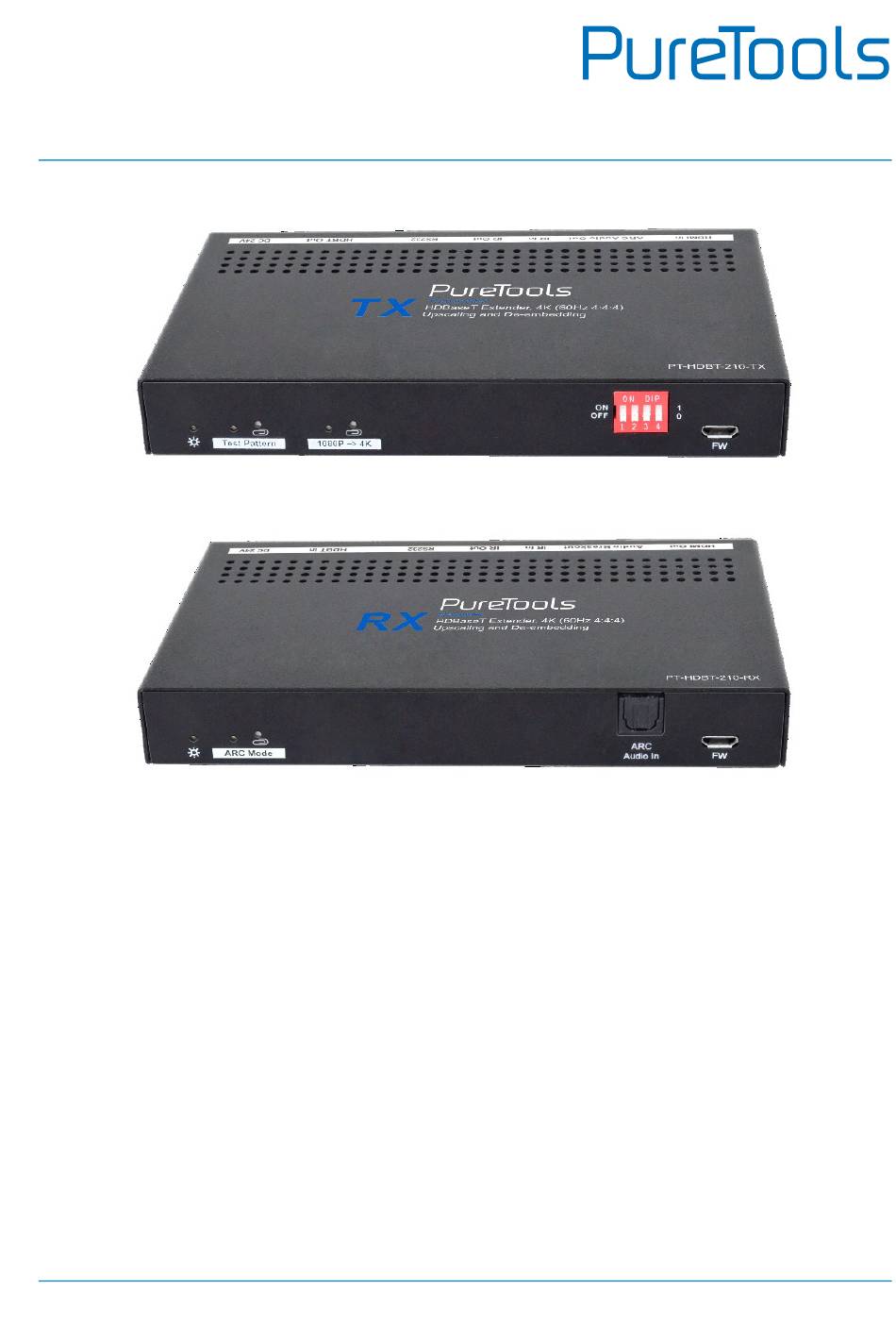

PT-HDBT-210 Product Introduction Thanks for choosing the PT-HDBT-210 HDMI 2.0 via HDBaseT Extender, which consists of a transmitter and a receiver module. It can extend 4K video to a distance up to 40 meters and 1080p video to distances up to 70 meters over a single CATx cable. -
Page 6: Packing List
User Manual PT-HDBT-210 Packing List 1x PT-HDBT-210-TX Transmitter 1x PT-HDBT-210-RX Receiver 2x TX Mounting Ears with 4 Screws 2x RX Mounting Ears with 4 Screws 4x TX Plastic Cushions 4x RX Plastic Cushions 1x 3-pin Terminal Block 1x Power Adapter (24V DC 1.25A) - Page 7 User Manual PT-HDBT-210 FW: Micro-USB port for firmware updates and user-defined EDID upload. HDMI In: Type-A female HDMI input port to connect an HDMI source. ARC Audio Out: Toslink connector to connect speaker or amplifier for ARC audio output. IR In: 3.5mm jack to connect the IR receiver for IR pass-through.
-
Page 8: Dip Switch Operation
User Manual PT-HDBT-210 HDMI Out: Type-A female HDMI output port to connect HDMI display (e.g. TV). Audio Breakout: If ARC mode is turned off, the Toslink connector is connected to the speaker or amplifier for HDMI source audio de-embedding. Note, that if ARC mode is enabled, this port does not output audio. - Page 9 User Manual PT-HDBT-210 The switch represents “0” when in the lower (OFF) position, and it represents “1” when putting the switch in the upper (ON) position. Switch 1~3 are used for EDID settings. The DIP switch status and its corresponding setting are shown at the back of the product.
- Page 10 User Manual PT-HDBT-210 Note: 2CH: Supports LPCM 2CH. Multi-CH: Supports LPCM 8CH, Dolby TrueHD, DTS-HD , Dolby Digital5.1, DTS 5.1, Dolby Digital Plus. User-defined EDID Setting Except directly invoking the built-in EDID, the specific EDID can be customized by following the process below..
-
Page 11: Arc Mode
User Manual PT-HDBT-210 HDCP Mode Switch the DIP 4 into “ON” position to select HDCP Active mode or into “OFF” position for HDCP Passive mode. Switch Status Mode HDCP Passive Automatically follows the HDCP version of source OFF (0) (Default) device. -
Page 12: System Connection
User Manual PT-HDBT-210 transmitted from the TV back to the receiver via the audio cable, and will be output by the ARC Audio Out port of the transmitter. Note that if the ARC mode is ON, the Audio Breakout port of the receiver has no audio output. - Page 13 User Manual PT-HDBT-210 2) The ARC mode of receiver is ON, but the display device (e.g. HDTV) doesn’t support ARC. The TV audio is transmitted from the TV back to the receiver via the audio cable, and then it will be output by the ARC Audio Out port of transmitter.
- Page 14 User Manual PT-HDBT-210 3) The ARC mode of receiver is OFF. The TV audio can’t be back to the ARC Audio Out port of transmitter. The Audio Breakout port of receiver is connected to speaker or amplifier for HDMI source audio de-embedding.
-
Page 15: Technical Specification
User Manual PT-HDBT-210 Technical Specification Transmitter Receiver Video Input (1) HDMI (1) HDBT Input Connector (1) Type-A female HDMI (1) RJ45 Up to 4Kx2K@60Hz 4:4:4 8bit Input Resolution Up to 4Kx2K@60Hz 4:2:0 HDR10 Output (1) HDBT Out (1) HDMI Output Connector... - Page 16 User Manual PT-HDBT-210 Control (1) Test Pattern button, (1)1080p → 4K button, (1) ARC Mode button, (1) FW, Control Part (1) EDID 4-pin DIP switch, (1) IR In, (1) IR Out, (1) RS232 (1) FW, (1) IR In, (1) IR Out,...
-
Page 17: After Sales Service
User Manual PT-HDBT-210 After-Sales Service If problems appear when using the product, please deal with the problems referring to this user manual. During the warranty period, any transport costs are borne by the customer. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 18 User Manual PT-HDBT-210...
- Page 19 User Manual PT-HDBT-210...
- Page 20 User Manual PT-HDBT-210 Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 - 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
