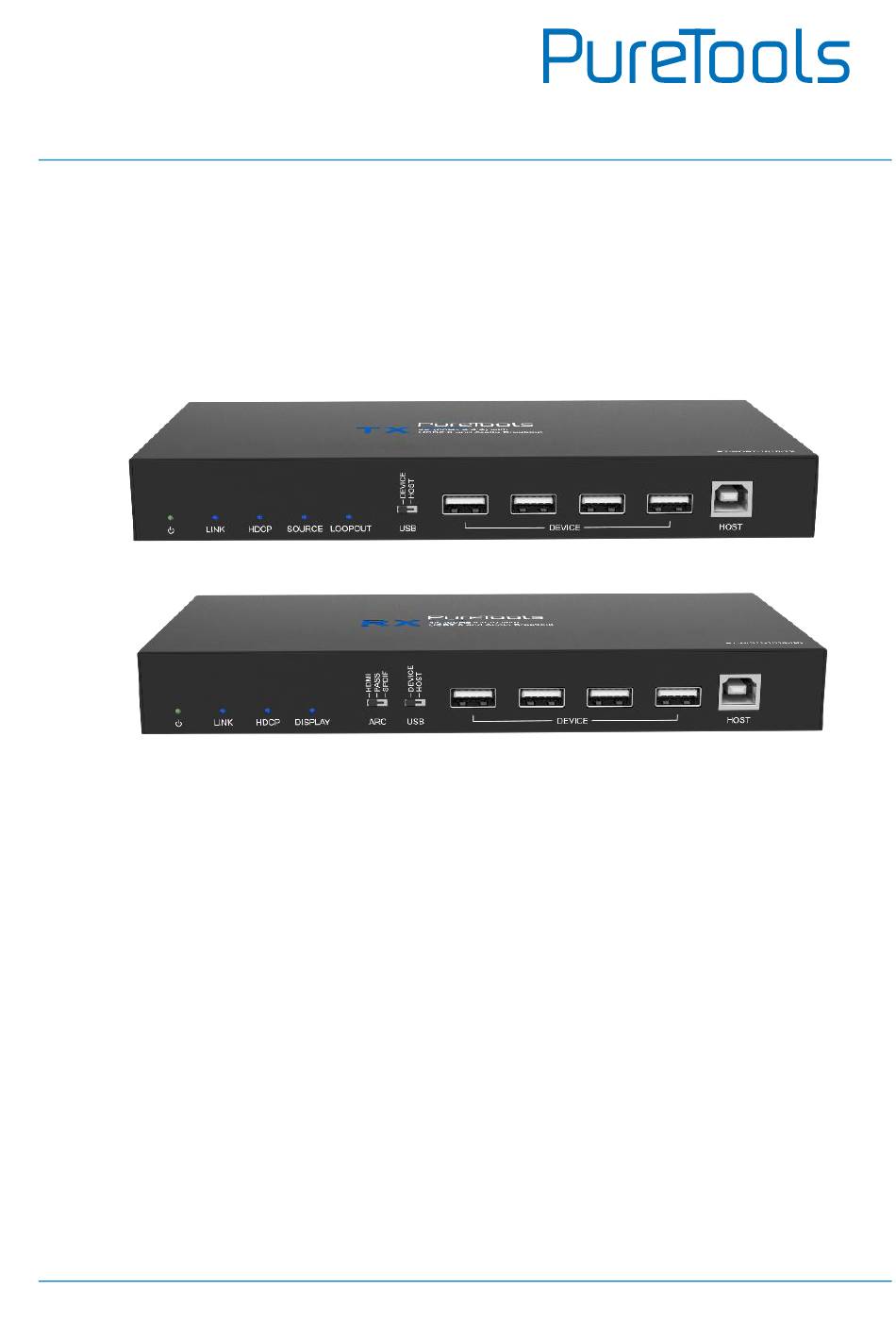

- Page 1 User Manual PT-HDBT-1010 User Manual HDBaseT 3.0 Extender set with USB and Audio breakout Model PT-HDBT-1010 Designed in Germany © 2022 PureLink GmbH All rights reserved. VersionV1.2...
-
Page 2: Fcc Statement
User Manual PT-HDBT-1010 Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-HDBT-1010 REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDBT-1010 complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-1010 complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
User Manual PT-HDBT-1010 SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ⚫... -
Page 5: Product Introduction
PT-HDBT-1010 Product Introduction Thanks for choosing Purelink PT-HDBT-1010, which consists of a transmitter and a receiver. It can extend 4K or 1080p video to distance up to 328 feet (100 meters) over a single CAT6A cable without compression. It supports audio de-embedding and ARC. -
Page 6: Panel Description
User Manual PT-HDBT-1010 Panel Description Transmitter Front Panel Name Description Illuminates green when power is applied, or blinks ① POWER LED when in firmware upgrade mode. Illuminates when there is a valid HDBaseT link ② LINK LED between the transmitter and the receiver. -
Page 7: Audio Out
User Manual PT-HDBT-1010 Transmitter Rear Panel Name Description Used for Ethernet extension together with the ① ETHERNET ETHERNET port of receiver. RJ45 port to connect the HDBT input port of receiver by CAT6A Ethernet cable. The LINK LED illuminates ②... -
Page 8: Power Led
User Manual PT-HDBT-1010 Receiver Front Panel LINK HDCP DISPLAY HOST Name Description Illuminates green when power is applied, or blinks ① POWER LED when in firmware upgrade mode. Illuminates when there is a valid HDBaseT link ② LINK LED between the transmitter and the receiver. -
Page 9: Firmware Upgrade Button
User Manual PT-HDBT-1010 be controlled by the USB devices which are connected to type-A USB 2.0 ports of transmitter. Receiver Rear Panel Name Description Used for Ethernet extension together with the ① ETHERNET ETHERNET port of transmitter. RJ45 port to connect the HDBT output port of transmitter by CAT6A Ethernet cable. -
Page 10: Specification
User Manual PT-HDBT-1010 Specification Transmitter Receiver Video Input (1) SOURCE (1) HDBT IN Input Connector (1) Type-A female HDMI (1) RJ45 Input Resolution Up to 4K@60Hz 4:4:4 Up to 4K@60Hz 4:4:4 Output (1) HDBT OUT, (1) LOOP OUT (1) DISPLAY... - Page 11 User Manual PT-HDBT-1010 (1) ETHERNET (1) ETHERNET (4) Type-A USB 2.0, (4) Type-A USB 2.0, (1) Type-B USB 2.0, (1) Type-B USB 2.0, (1) 2-pin DIP Switch, (2) 3-pin DIP Switch, Control Connector (2) 3.5mm Jacks, (2) 3.5mm Jacks, (1) 3-pin Terminal Block,...
-
Page 12: System Diagram
User Manual PT-HDBT-1010 System Diagram When ARC switch is selected to HDMI, and the TV supports ARC, the TV audio can be transmitted back to the transmitter via HDMI output port of receiver, and then it will be output by the ARC OUT & HDMI Source port of transmitter. CEC pass-through is not supported in this mode. -
Page 13: After Sales Service
User Manual PT-HDBT-1010 After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 14 User Manual PT-HDBT-1010...
-
Page 15: Asking For Assistance
User Manual PT-HDBT-1010 Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
