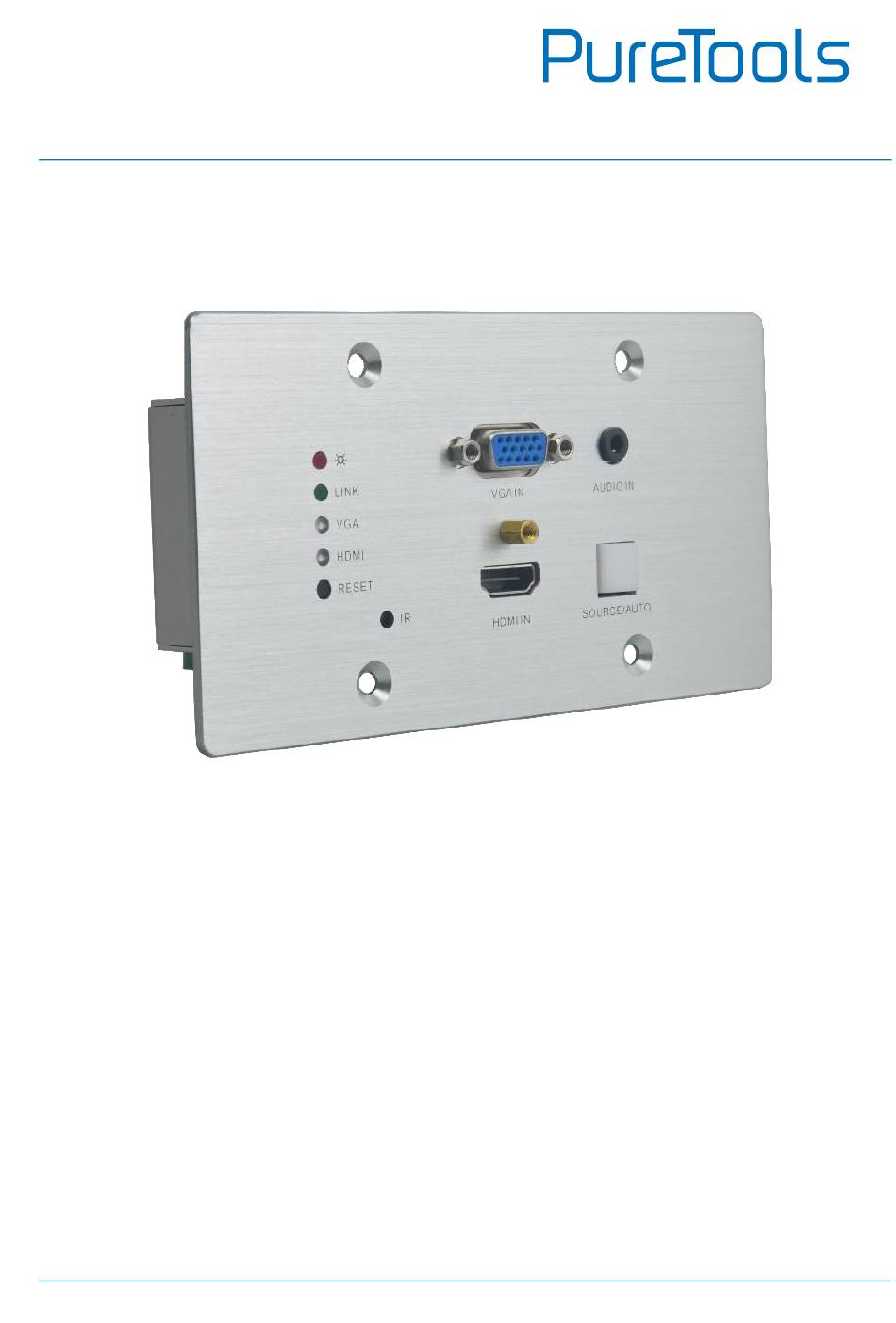

- Page 1 User Manual PT-HDBT-701-TXWP User Manual HDBaseT 1.0 Extender, 4K (60Hz 4:2:0) HDR Model PT-HDBT-701-TXWP Designed in Germany © 2018 PureLink GmbH All rights reserved. V1.1...
- Page 2 User Manual PT-HDBT-701-TXWP Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-HDBT-701-TXWP REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDBT-701-TXWP complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-701-TXWP complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-HDBT-701-TXWP SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment ...
-
Page 5: Table Of Contents
User Manual PT-HDBT-701-TXWP Contents 1. Introduction ..........................1 1.1 Introduction to PT-HDBT-701-TXWP ................1 1.2 Feature ..........................1 1.3 Package List ........................2 2. Panel Description ........................3 2.1 Front Panel ......................... 3 2.2 Rear Panel .......................... 4 2.3 Side Panel ........................... 5 3. -
Page 6: Introduction
Certified HDBaseT technology. The resolution of HDMI input is up to 4K/UHD@ 60Hz 4:2:0 and VGA input up to 1920x1200. The PT-HDBT-701-TXWP is ideal for huddle rooms, classrooms and small conference rooms. The wall‑mountable design provides the convenience of placing input connections precisely where they are needed. -
Page 7: Package List
PoH (power over HDBaseT) allows powering from the receiver at the display end. Provides power supply for devices like Control Panel. 1.3 Package List 1 x PT-HDBT-701-TXWP 4K Wallplate HDBaseT Transmitter 1 x 2-pin Pluggable Terminal Block 1 x 4-pin Pluggable Terminal Block ... -
Page 8: Panel Description
User Manual PT-HDBT-701-TXWP 2. Panel Description 2.1 Front Panel LINK VGA IN AUDIO IN HDMI RESET HDMI IN SOURCE/AUTO Name Description POWER: Glows red when power is applied. LINK: Glows green when an HDBaseT link is established. VGA: Glows green when the VGA input is active, amber... -
Page 9: Rear Panel
User Manual PT-HDBT-701-TXWP Name Description VGA IN VGA input connector, connect with VGA source. ③ 3.5mm stereo audio connector supplies audio for the VGA AUDIO IN ④ input. Built-in IR sensor to receive IR signal from IR remote. ⑤ HDMI IN HDMI input connector, connect with HDMI source. -
Page 10: Side Panel
② 12V input, connects with power adapter. ③ 12V output, connects with Control Panel to energize it. Serial port for control PT-HDBT-701-TXWP or the third-party ④ RS232 device via RS232 commands. Please refer to the 5. RS232 Control for more details. -
Page 11: System Connection
User Manual PT-HDBT-701-TXWP 3. System Connection Usage Precautions Verify all components and accessories included before installation. System should be installed in a clean environment, preferably at ambient temperature or within given working temperature range (see page18 for limits). - Page 12 PT-HDBT-701-TXWP Installation ① If installing in a back-box, it is recommended that the PT-HDBT-701-TXWP be installed in a suitable square box. The square box has sufficient space to terminate the cables with jacks behind the unit when fully installed. ②...
-
Page 13: Button Control
PT-HDBT-701-TXWP is in AUTO mode. This mode automatically selects the last video source connected to the PT-HDBT-701-TXWP and outputs it to the display. Press and hold again for approximately 3 seconds, the light will go out, and the device will be in Manual mode which will allow the user to momentarily press the button to toggle between the two sources. -
Page 14: Rs232 Control
5.1 RS232 Connection There are two RS232 control modes switching via sending 50779% or 50780%. ① Control this PT-HDBT-701-TXWP and far-end third-party device (such as Projector) device by the local PC, and the connection diagram shown as below: VGA: RS232... - Page 15 User Manual PT-HDBT-701-TXWP ② Control the PT-HDBT-701-TXWP by the remote PC which is connected with Receiver. VGA: RS232 HDMI: Tx Rx Audio: RS232: HDBaseT: PT-HDBT-701-TXWP 4K 40m 1080P 70m RS232 AUDIO RS232 AUDIO RS232 AUDIO RS232 AUDIO RS232 AUDIO RS232...
-
Page 16: Rs232 Control Software
Uninstallation Delete all the control software files in corresponding file path. Basic Settings: First, connect PT-HDBT-701-TXWP with all input devices and output devices needed, then to connect it with a computer which is installed with RS232 control software. Double-click the software icon to run this software. - Page 17 User Manual PT-HDBT-701-TXWP The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates if the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in Command Sending Area.
-
Page 18: Rs232 Command
User Manual PT-HDBT-701-TXWP 5.3 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none 5.3.1 Control Mode Switching Command Function Feedback Example Switch to RS232 mode 1（Default）, RS232 Mode 1: RS232... -
Page 19: Hdcp Compliance
User Manual PT-HDBT-701-TXWP Command Function Feedback Example Change the resolution to 1280X720 50627% Resolution: 1280x720 720P Change the resolution to 1280X800 50628% Resolution: 1280x800 WXGA Change the resolution to 1920X1080 50629% Resolution: 1920x1080 1080P Change the resolution to1920X1200 50620% Resolution: 1920x1200... - Page 20 User Manual PT-HDBT-701-TXWP Command Function Feedback Example 50638% Check the saturation Saturation: xx (xx=00～99) 504xx% Set the saturation to xx. Saturation: xx (xx=00～99) 50639% Check sharpness Sharpness: xx (xx=00～99) 505xx% Set the sharpness to xx. Sharpness: xx (xx=00～99) 50606% Auto-adjust the input parameter...
-
Page 21: Edid Configuration
User Manual PT-HDBT-701-TXWP Command Function Feedback Example Output Position Adjust X 50670% Move the image to left Output Position Adjust X 50671% Move the image to right Output Position Adjust Y 50672% Move the image up Output Position Adjust Y... -
Page 22: Device Configuration
User Manual PT-HDBT-701-TXWP Note: EDID commands are for HDMI sources only. 5.3.7 Device Configuration Command Function Feedback Example 50698% Software upgrading 50699% Check the software version Version Vx.x.x 50617% Restore factory default... -
Page 23: Specification
User Manual PT-HDBT-701-TXWP 6. Specification Input & Output Input (1) HDMI; (1) VGA; (1) AUDIO; (1) 12V POWER ; (1) 19-pin Type A female HDMI; (1) HD-15 VGA; (1) Input Connector 3.5mm mini jack; (1) 2-pin Pluggable Terminal Block Output (1) HDBaseT;... -
Page 24: Panel Drawing
User Manual PT-HDBT-701-TXWP 7. Panel Drawing 151.00 mm 4- 4.5 8x90° 108.60 mm 70.00 mm 41.10 mm 3- 3.5 2-M3... -
Page 25: Troubleshooting & Maintenance
User Manual PT-HDBT-701-TXWP 8. Troubleshooting & Maintenance Problems Potential Causes Solutions Color losing or no video signal output in HDMI display The connecting cables No HDMI signal output in Check whether the cables may not be connected the device while local... -
Page 26: After-Sales Service
User Manual PT-HDBT-701-TXWP 9. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 27 User Manual PT-HDBT-701-TXWP...
- Page 28 User Manual PT-HDBT-701-TXWP Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
