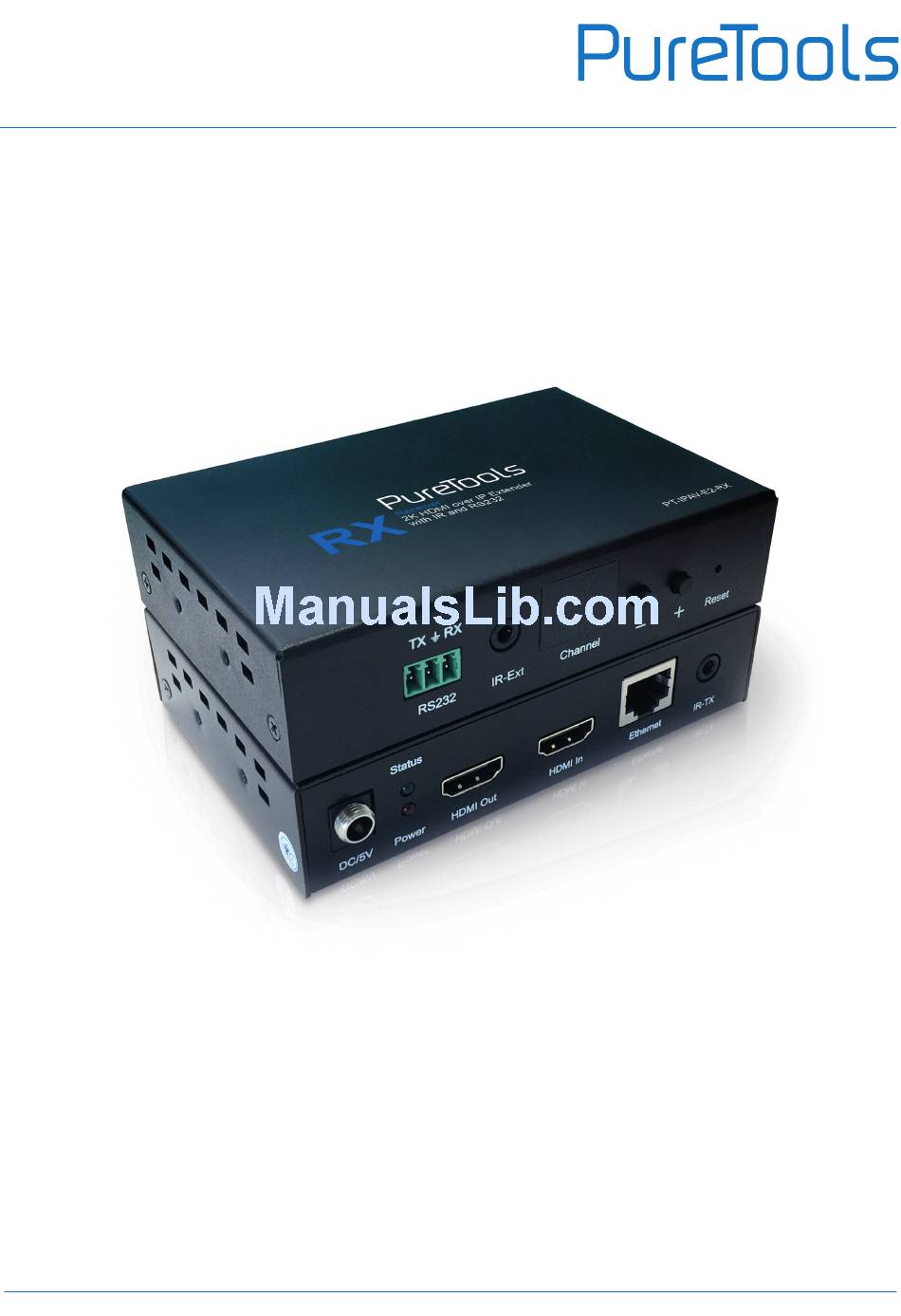

- Page 1 User Manual PT-IPAV-E2 User Manual 2K HDMI over IP Extender with IR and RS232 Model: PT-IPAV-E2-TX | PT-IPAV-E2-RX Designed in Germany Version 1.0 © 2017 PureLink GmbH All rights reserved.
- Page 2 User Manual PT-IPAV-E2 Introduction This HDMI over IP Extender use the advanced H.264 as the compression type, which makes it occupy lower bandwidth and transmit over the LAN more smoothly. It supports 120m over single cat5e/6 cable at point to point, as well as point to many and many to many over Ethernet switch.
-
Page 3: Specifications
User Manual PT-IPAV-E2 3. 1 Specifications Performance Protocol H.264 encoder over TCP/IP Support Video format 480i/480p/576i/576p/720p/1080i/1080p@60HZ Support Audio format LPCM, Audio sampling rate 48KHZ Streaming Bit Rate 15Mbps HDCP Compliant IR Frequency 38 -56 KHZ RS232 Baud rate Default 2400bps, total 8 kinds optional IP setting &Group ID setting Default IP TX: 192.168.1.11 ;... - Page 4 User Manual PT-IPAV-E2 3.1 Supported input resolution Frequency Resolution 576i 576P 50Hz 720P 1080P 1080i 480i 480P 60Hz/59.94Hz 720P 1080P 30Hz/29.97Hz 1080P 24Hz 1080P 25Hz 1080P 3.2 VESA resolution Frequency Resolution 576i 576P 50Hz 720P 1080P 1080i 480i 480P 60Hz/59.94Hz 720P 1080P 30Hz/29.97Hz...
-
Page 5: Panel Description
User Manual PT-IPAV-E2 4. Panel description DC 5V 1A input Green indicator of data status Red indicator of power input HDMI output for local display HDMI input CAT5e/6 output IR-TX RS232 port IR-Ext LED to show the Group ID Press the button for the previous Group ID Press the button for the next Group ID Reset button NOTE:... -
Page 6: Panel Drawing
User Manual PT-IPAV-E2 How to connect the IR Cable 4.1 Panel Drawing Transmitter... -
Page 7: Installation And Configuration
User Manual PT-IPAV-E2 Receiver 5. Installation and Configuration 5.1 Setup HDMI TX and RX When connecting point to point, no need to configure TX and RX, When connecting point to many, many to point and many to many, please make sure every TX and RX has unique IP and MAC address, every TX has unique group ID. -
Page 8: Setting The Ip Address
User Manual PT-IPAV-E2 5.1.1 Setting the IP address A). DHCP (Dynamic host configuration protocol) If you are using a Switch that supports DHCP, please enable DHCP so that the Switch will assign an unique IP for TX and RX, and you don’t need to change the IP for the units manually. B). - Page 9 User Manual PT-IPAV-E2 Step 4: After selecting “Use DHCP” or reset the IP Address, click “Submit” (transmitter) or “update DHCP” (Receiver). Step 5: Click “Reboot”. Step 6: Restart the extender after resting the IP Address. 5.1.2 Choose the Group ID and Baud Rate by Remote controller (When the LED shows “00”, it’s ready to work) Press the button, switch to choose the Group ID or Baud rate.
- Page 10 User Manual PT-IPAV-E2 The group ID of transmitters is: TX1 (01) TX2 (02) TX3 (03) If you need display Source on TV1, then just set Group ID of RX1 same as TX1: 01(see below picture). TX 1 RX 1 5.1.3 Set the group ID for TX and RX via web browser Step 1: Make sure the Transmitter and PC are in the same domain.
-
Page 11: Preparing The Switch
User Manual PT-IPAV-E2 5.2 Preparing the switch When doing point to many and many to many, it requires a switch to distribute the sources. We suggest you use the Switch that supports IGMP and DHCP. IGMP feature help to manage the group ID which is related to switch the sources;... - Page 12 User Manual PT-IPAV-E2 5.3.2 Compatible with Video Player such as VLC etc. 5.3.3 Point to many Setting the IP address for Transmitter & Receiver and preparing the switch following the steps as instructed above (5.1.1&5.2) Connect the source device and the Transmitter unit with HDMI Cable. Connect the HDMI looping output of the Transmitter to the local HDMI Display.
- Page 13 User Manual PT-IPAV-E2 5.3.4 Many to many Setting the IP address for Transmitter & Receiver and preparing the switch following the steps as instructed above (5.1.1&5.2) Connect the source device and the Transmitter unit with HDMI Cable. Connect the HDMI looping output of the Transmitter to the local HDMI Display. Connect the transmitters and the switch/router with cat5e or cat6 cable Connect the Receivers and the switch/ router with Cat5e/6 cable Connect the HDMI displays and the HDMI Receiver units with HDMI Cable.
- Page 14 User Manual PT-IPAV-E2 Note: The total qty of TX, RX, Switch is less than 256pcs.
-
Page 15: Baud Rate Setting
User Manual PT-IPAV-E2 6. RS232 and Baud rate The unit provides a path to pass through the RS232 signal, RS232 passes from TX to RX or from RX to TX, connect to your RS232 devices, such as PC, IP Camera, Creston control panel, Smart Matrix, printer and Scanner and so on. It works when TX, RX and your RS232 devices baud rate is the same. - Page 16 User Manual PT-IPAV-E2 8. One key recovery to default setting 9. PC Tool Instructions Step 1: Make sure the Transmitter and PC are in the same domain. (Refer to 5.1.1) Step 2: Open the PC Tool. Step 3: Click “Start Scan”. Step 4: Choose the TX or RX Name.
-
Page 17: Firmware Upgrade
User Manual PT-IPAV-E2 9.1 Firmware Upgrade Upgrade for TX Step 1: Click “Firmware Upgrade”. Step 2: Click “Upgrade Encoder FW” first. - Page 18 User Manual PT-IPAV-E2 Step 3: After the step 2 is finished, click “Firmware Upgrade” again, then click “Upgrade TX FW”. Upgrade for RX Step 1: Click “Firmware Upgrade”. Step 2: Click “Upgrade Rx FW”.
-
Page 19: Other Settings
User Manual PT-IPAV-E2 9.2 Other settings Step 1: Change the IP/Netmask/Gateway/DHCP/ Uart Baudrate/Group ID/Mac Address/ Device name on the PC tool interface. Step 2: Click “Update”, after “Update” is finished, click “Reboot”. - Page 20 User Manual PT-IPAV-E2 9.2 Click “Factory Reset” on TX or RX. 10. After sale Service and Warranty. 11. How to use VLC Step 1: Make sure the Transmitter and PC are in the same domain. (Refer to 5.1.1) Step 2: Connect the HDMI Source without HDCP with the transmitter and power on the device.
- Page 21 User Manual PT-IPAV-E2 Step 6: Click “Next”. Step 7: Choose “RTP / MPEC Transport Stream”.
- Page 22 User Manual PT-IPAV-E2 Step 8: Click “Next”. Step 9: Click “Stream”. Step 10: Click “Open Network Stream”, then you can click “Play” to view the video.
- Page 23 User Manual PT-IPAV-E2 WARRANTY If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as „the warrantor“ ) will, for the length of the period indicated as below, (Parts(2)Year, Labor(90) Days) which starts with the date of original purchase („Limited Warranty period“), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product.
-
Page 24: Asking For Assistance
User Manual PT-IPAV-E2 LIMITED WARRANTY LIMITS AND EXCLUSIONS This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning...
