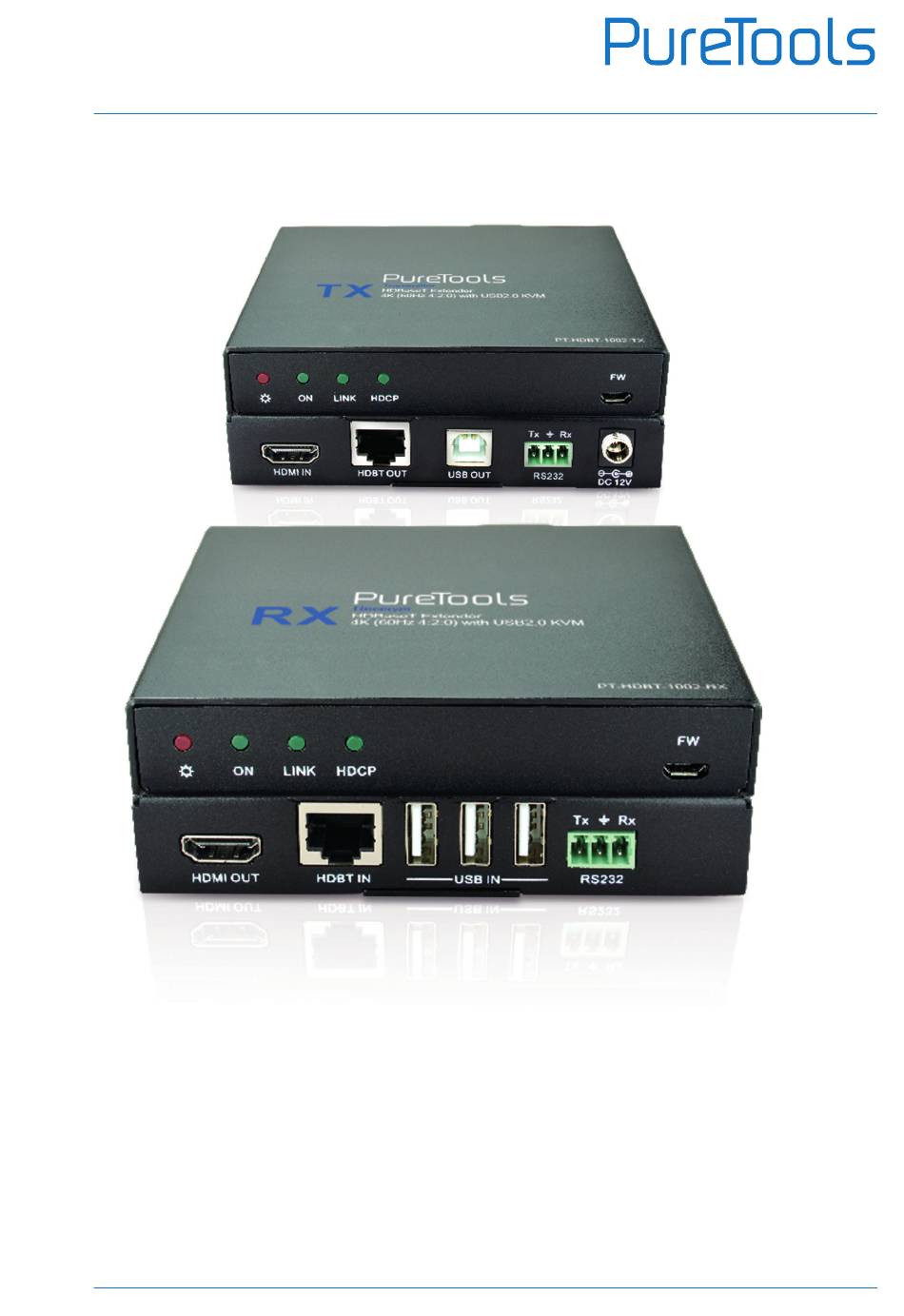

- Page 1 User Manual PT-HDBT-1002 User Manual 4K HDBaseT 2.0™ Extender w/ HDMI® & USB 2.0 KVM support Model PT-HDBT-1002 Designed in Germany © 2018 PureLink GmbH All rights reserved. Version 1.0...
- Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDBT-1002 complies with Directives 1907/2006/EU and 2011/65/EU.
- Page 3 EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-1002 complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration of Conformity is available at the following Internet address:...
- Page 4 User Manual PT-HDBT-1002 SAFETY PRECAUTIONS • To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. • Unpack the equipment carefully and save the original box and packing material for possible future shipment.
-
Page 5: Table Of Contents
User Manual PT-HDBT-1002 Contents 1. Product Introduction ......... . 6 1.1 Features. -
Page 6: Product Introduction
PT-HDBT-1002 1. Product Introduction Compliant with HDMI 2.0 & HDCP 2.2, the HDBaseT 2.0 KVM Extender Set PT-HDBT-1002 from PureTools is a 4K HDMI Extender set consisting of transmitter and receiver and developed with the latest HDBaseT™ 2.0 technology to extend uncompressed HDMI video, audio, USB 2.0, control signals and PoC over a single CAT5e/6 cable. -
Page 7: Panel Description
User Manual PT-HDBT-1002 2. Panel Description 2.1 Transmitter Front Rear Name Description Power: • OFF: No power • RED: DC power present ON: Working status indicator • OFF: Not operational • Blinking GREEN: Normal operation Indicators LINK: HDBT Link status indicator •... -
Page 8: Receiver
User Manual PT-HDBT-1002 Name Description Micro USB port, used for fi rmware update. Firmware updated need auxiliary equipment, please contact with our after-sales department for more details. HDMI IN Connect with HDMI source. Connect to the HDBT IN port on rear panel of the... - Page 9 User Manual PT-HDBT-1002 Name Description Power: • OFF: No power • RED: DC power present ON: Working status indicator • OFF: Not operational • Blinking GREEN: Normal operation Indicators LINK: HDBT Link status indicator • OFF: No Link • GREEN: Link successful •...
-
Page 10: System Connection
User Manual PT-HDBT-1002 3. System Connection 3.1 Usage Precautions • Make sure all components and accessories are included before installation. • System should be installed in a clean environment with proper temperature and humidity. • All of the power switches, plugs, sockets, and power cords should be insulated and safe. -
Page 11: Connection Procedure
User Manual PT-HDBT-1002 3.3 Connection Procedure Step1. Connect HDMI source (such as PC) to HDMI IN port of the Transmitter with an HDMI cable. Step2. Connect HDBT OUT port of the Transmitter to HDBT IN port of the Receiver through a straight-thru CAT5e/CAT6 cable. -
Page 12: Specification
User Manual PT-HDBT-1002 4. Specification Transmitter Input • 1x HDMI (19 pin Type-A male) Output • 1x HDBT (RJ45 female); 1x USB OUT (Type-B) Other • 1x RS232 (3-pin pluggable terminal block) Receiver Input 1x HDBT (RJ45 female); 1x USB IN (Type-A) -
Page 13: Panel Drawing
User Manual PT-HDBT-1002 5. Panel Drawing Transmitter 116.00 mm HDMI IN HDBT OUT USB OUT RS232 DC 12V Transmitter HDBaseT Extender 4K (60Hz 4:2:0) with USB2.0 KVM PT-HDBT-1002-TX LINK HDCP Receiver 116.00 mm HDMI OUT HDBT IN USB IN RS232... -
Page 14: Troubleshooting & Maintenance
User Manual PT-HDBT-1002 6. Troubleshooting & Maintenance Problems Potential Causes Solutions No reaction to any Insert power adapter to operation, power indicator Haven’t been powered on Transmitter is off Abnormal indication of the Wrong specification of the Change for DC 12V 2A... - Page 15 User Manual PT-HDBT-1002 1) Product Limited Warranty This product will be free from defects in materials and workmanship for two years. Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the unit is within the warranty period must be presented to obtain warranty service.
- Page 16 User Manual PT-HDBT-1002 Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 - 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write To: PureLink GmbH Von-Liebig-Straße 10...
