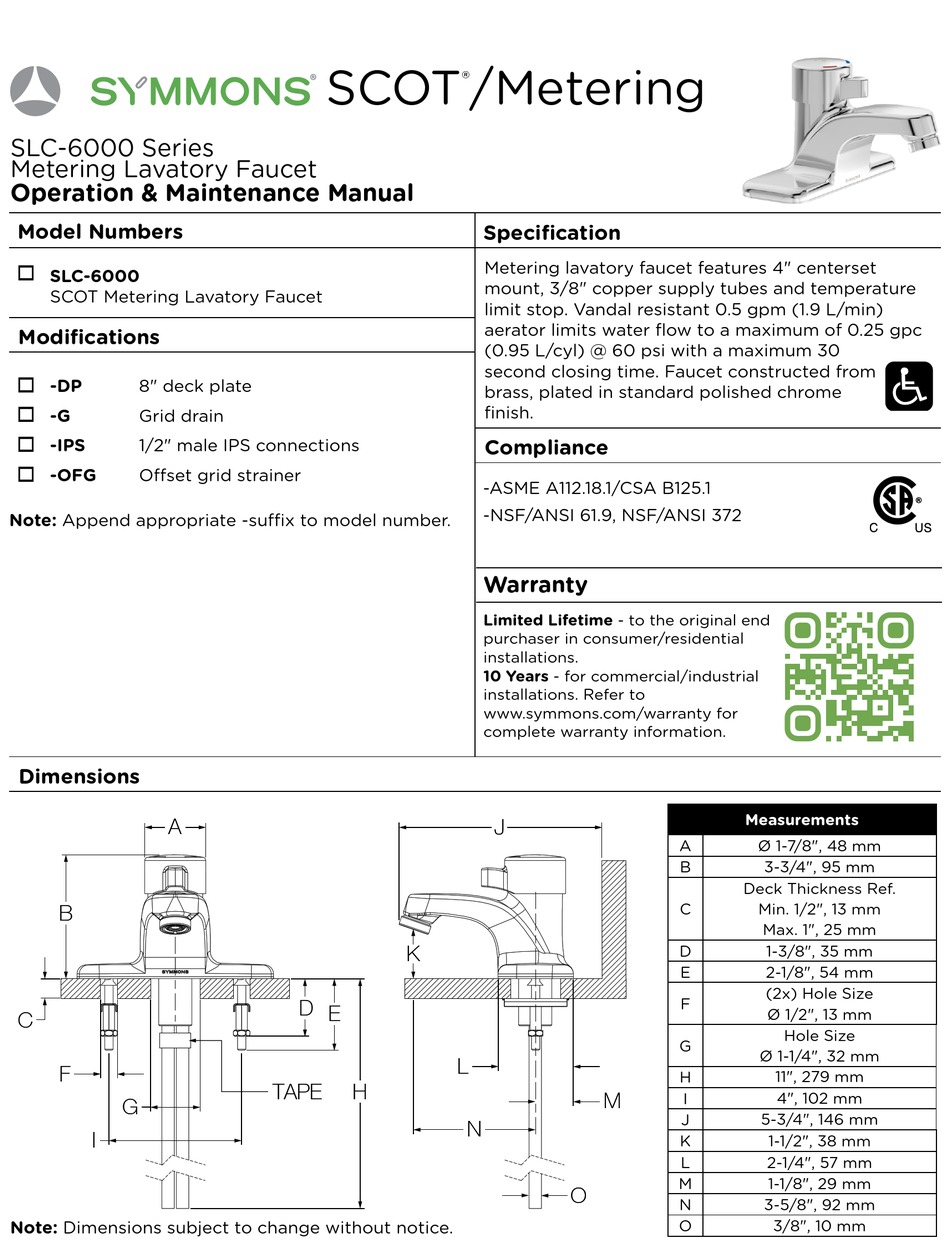

Symmons SCOT SLC-6000 Series Operation & Maintenance Manual

SLC-6000 Series
Metering Lavatory Faucet
Operation & Maintenance Manual
Model Numbers

SLC-6000

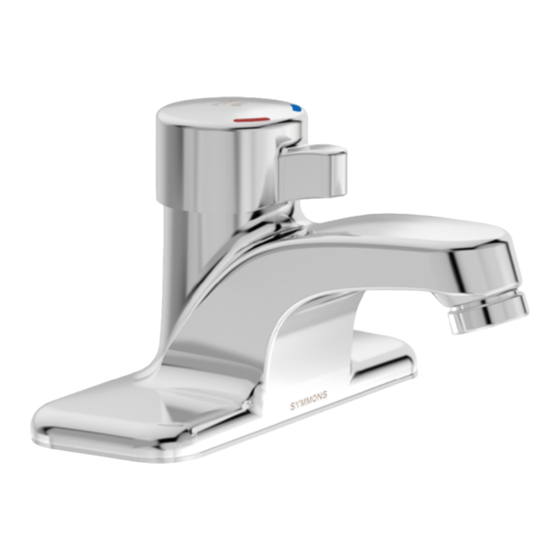

SCOT Metering Lavatory Faucet
Modifications
 -DP 8" deck plate
-G
 Grid drain
-IPS
 1/2" male IPS connections
-OFG
 Offset grid strainer
Note: Append appropriate -suffix to model number.
Dimensions
A A
B B
C C
F F
G G
I I
Note: Dimensions subject to change without notice.
SCOT
K K
D D
E E
TAPE TAPE H H
/Metering
®
Specification
Metering lavatory faucet features 4" centerset
mount, 3/8" copper supply tubes and temperature
limit stop. Vandal resistant 0.5 gpm (1.9 L/min)
aerator limits water flow to a maximum of 0.25 gpc
(0.95 L/cyl) @ 60 psi with a maximum 30
second closing time. Faucet constructed from
brass, plated in standard polished chrome
finish.
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI 61.9, NSF/ANSI 372
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
J J
L L
M M
N N
O O
Measurements
A Ø 1-7/8", 48 mm
B 3-3/4", 95 mm
Deck Thickness Ref.
C Min. 1/2", 13 mm
Max. 1", 25 mm
D 1-3/8", 35 mm
E 2-1/8", 54 mm
(2x) Hole Size
F
Ø 1/2", 13 mm
Hole Size
G
Ø 1-1/4", 32 mm
11", 279 mm
H
4", 102 mm
I
5-3/4", 146 mm
J
K 1-1/2", 38 mm
L 2-1/4", 57 mm
M 1-1/8", 29 mm
N 3-5/8", 92 mm
O 3/8", 10 mm
