Visonic MC-302V PG2 Installation Instructions

MC-302V PG2
Supervised Vanishing Magnetic Contact Device
1. INTRODUCTION
The MC- 302V PG2 is a very thin PowerG
magnetic contact device that is compatible
with PowerMaster control panels. The device
includes a built- in reed switch (that opens
upon removal of a magnet placed near it).
The MC- 302V PG2 sends the alarm
message to the control panel using PowerG
2- way communications protocol. A periodic
supervision or alarm message is transmitted
automatically. The control panel is thus
informed, at regular intervals, of the unit's
active participation in the system.
The LED lights green/yellow/red, according
to signal strength, upon first insertion of the
battery and for the test period of 15 minutes.
Operating power is obtained from an on-
board 3 V Lithium battery. When the battery
voltage is low, a "low battery" message is
sent to the receiver.
The MC- 302 V is available for 433 MHz, 868
MHz, and 915 MHz.
2. INSTALLATION
2.1. Mounting
Caution! This equipment shall be installed by Service Personnel in non-hazardous indoor locations only.
A. Enroll button B. Double-sided adhesive tape
D-304535 MC-302V PG2 Installation Instructions
A. Transmission LED B. Magnet

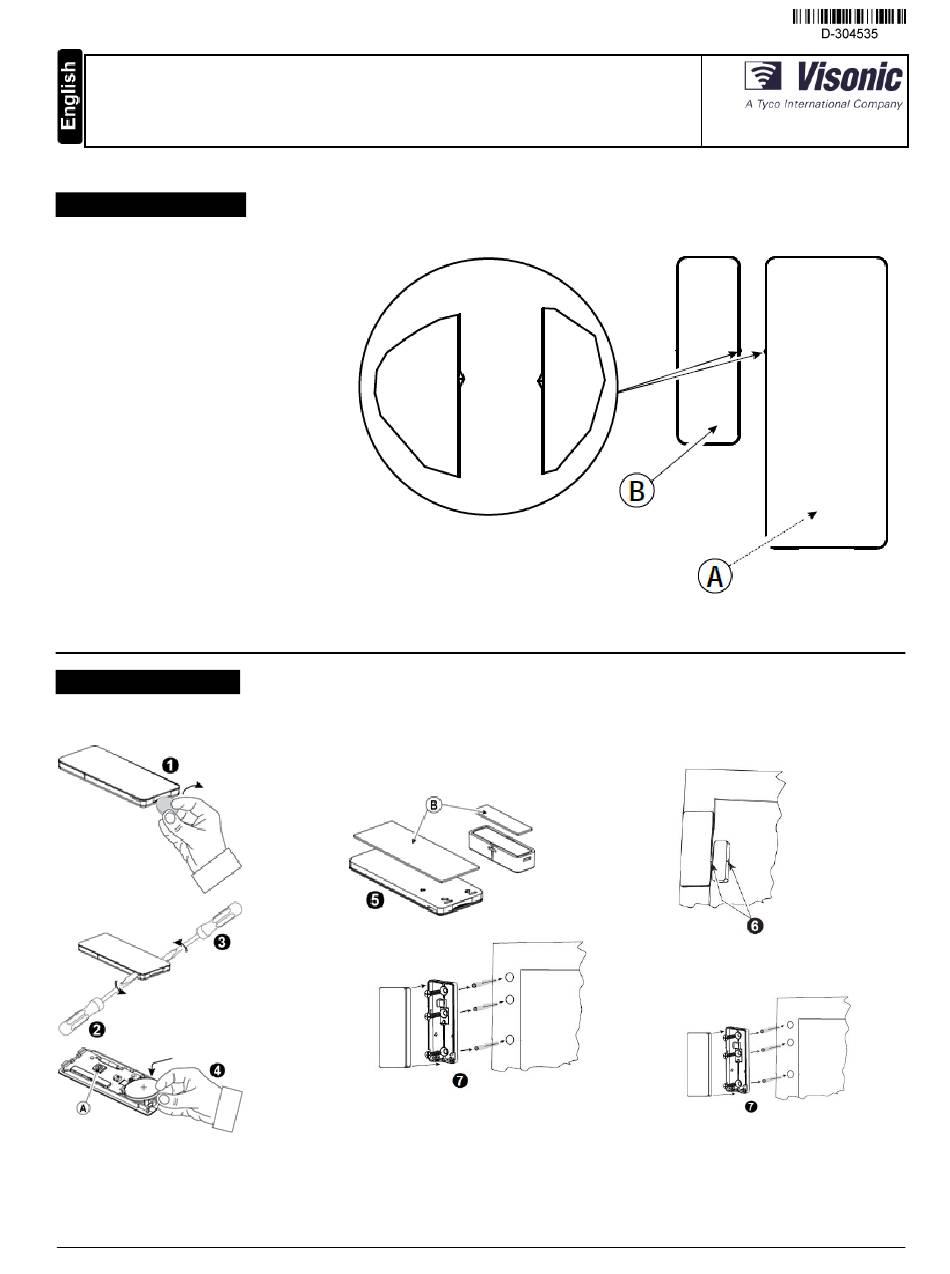

Figure 1: External View
Figure 2: Mounting
Installation Instructions
1
