Visonic MCPIR-2000 Installation Instructions

Fully Supervised PowerCode Wireless PIR Detector
The MCPIR-2000 is an advanced, fully supervised ultra low-current wireless
PIR that incorporates a PowerCode transmitter. Both transmitter and detector
circuits are powered by an on-board, long life 3.6 V Lithium battery.
Each MCPIR-2000 unit has a 24-bit ID code, randomly selected in the factory
from over 16 million possible combinations. This code is therefore unique and
virtually impossible to reproduce. Compatible PowerCode receivers are
designed to "learn" specific IDs and respond only to them.
Following detection, the MCPIR-2000 triggers the on-board transmitter which
transmits its specific PowerCode ID followed by an Alarm signal and status
designators for Tampering and Battery Condition. Alarm and other data are
thus forwarded to the alarm control panel or to a head-end computer,
depending on the type of system in which the detector is used.
Since messages transmitted by the MCPIR-2000 might collide with messages
transmitted by other PowerCode transmitters, a "smart" anti- collision
transmission sequence is used.
A periodic supervision message, distinguished by a specific marker, is
transmitted automatically once in 60 min. (USA) or 15 min. (Europe) or
according to local standards. The receiver is thus informed, that the particular
detector is taking an active part in the wireless network.
After triggering the transmitter, the MCPIR-2000 disarms itself to save battery
power. The detector rearms itself automatically (reverts to the ready state) 2
minutes after the last movement has been detected. A LED/ WALK-TEST
selector is used to override the 2-minute rearm timer during walk testing.
A programmable pulse counter is included in the unit for maximum immunity
against false alarms.
An entire library of interchangeable lenses, 25° vertical and 30° horizontal
adjustment, surface, corner or flush mounting installation from 0 to 17 feet
height, all these features enhance the detector's versatility of application and
make it a worthwhile unit to standardize on.
OPTICAL
Standard Lens: No. 100 (see
Figure 2), 36 beams, 3 layers.
Upper Layer - 9 twin beams,
optically split to 18 beams.
Intermediate Layer - 5 twin
beams, 10 ° below upper layer.
Downward Layer - 4 twin beams,
angled 25 ° below upper layer.
Field of View: 90 ° wide angle.
Coverage range: Maximum 18 x
18 m (60 x 60 ft).
Interchangeable Lenses: See
SUPER-RED Lens Library.
Adjustment: Vertical +10 °
15 ° , Horizontal up to 30 ° .
ELECTRICAL
Battery Type: 3.6 Volt lithium
thionyl chloride (LiSOCl ) battery,
2
size 1/2AA, Tadiran TL-5902.
Battery Capacity: 1.2 Ah nominal
Standby Current: 0.015 mA.
Transmit Current Drain: 9.5 mA
(including LED)
Battery Life Expectancy: 3 years (for typical use)
LED: Lights for 2 seconds upon transmission and upon motion
detection in the walk test mode.
Detector: Dual-element low-noise pyroelectric sensor.
Pulse Counter: Programmable to 1, 3 or 5 pulses.
DE3600
to -

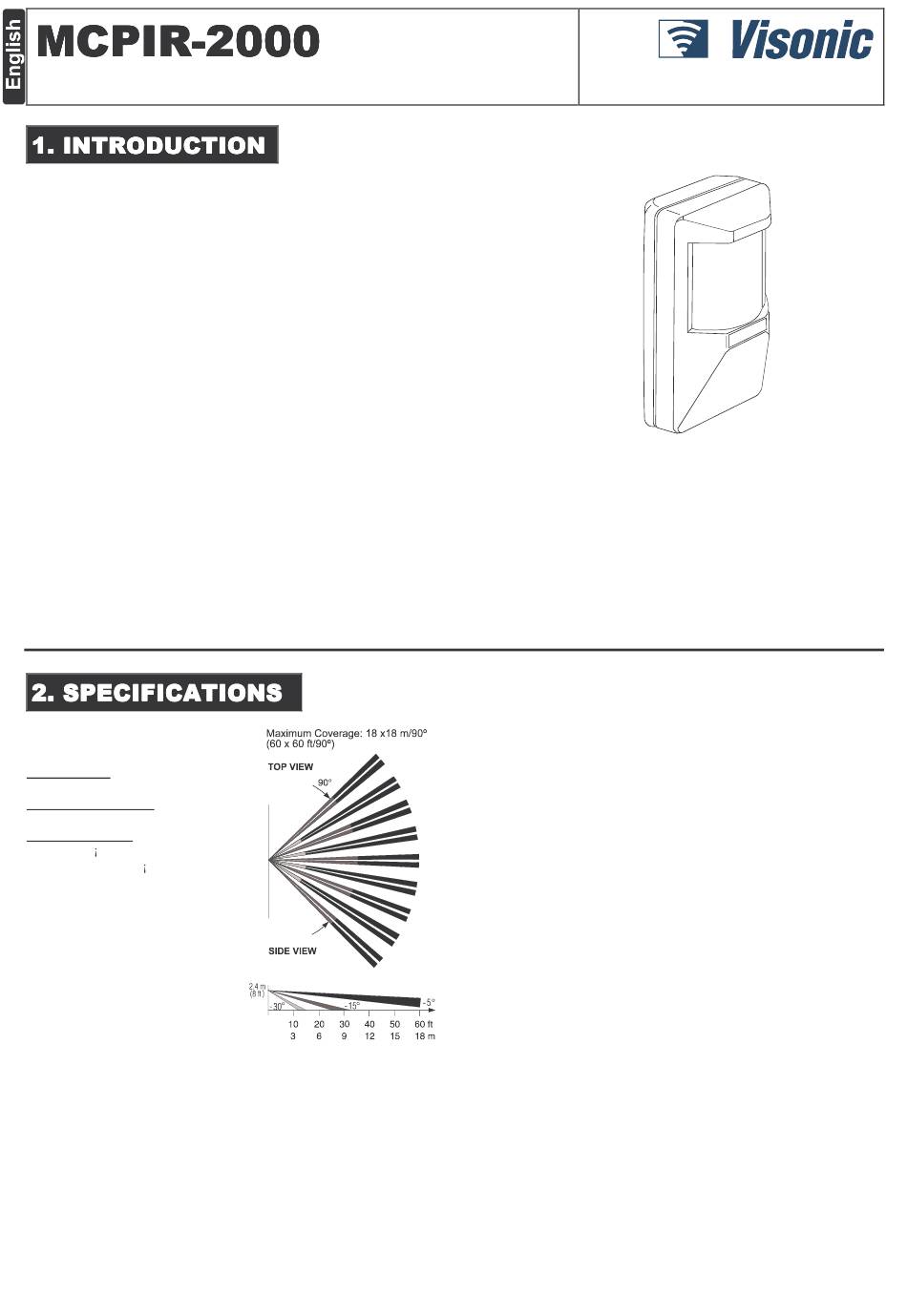

Figure 2. Coverage Pattern -
Lens No. 100
Installation Instructions
Figure 1. General View
Visonic Ltd.'s "SUPER-RED" lens library provides a
variety of 45 easy-to-change lens selection and
coverage patterns and includes:
• 9 wide-angle lenses up to 140°
• 3 long-range corridors up to 36 m (120 ft.)
• 6 pet alleys
• 3 finger curtains
• 8 lenses for combined ceiling and room coverage
• 10 lenses for 2-3 room and corridor coverage
Rearm Timer: 2 minutes after the last alarm; timer disabled in the
walk test mode.
WIRELESS
Frequency (MHz): 315, 433.92 or other frequencies according to
local requirements.
Transmission Sequence: 3 data bursts at variable intervals within
3 seconds.
Encoding: 24-bit factory selected ID code, over 16 million possible
combinations.
Message Length: 36 bits
Battery Supervision: Automatic reporting of battery status with
each alarm and with periodic autotest.
Tamper Alert: Reported at 3-minute intervals, until the tamper
switch is restored
ENVIRONMENTAL
Operating Temperature: -10
Storage Temperature: -20 °
RFI Protection: > 20 V/m up to 1000 MHz.
PHYSICAL
Weight: 105 g (3.7 oz).
Dimensions (H x W x D): 12 x 7 x 4.8 cm (4-3/4 x 2-3/4 x 1-7/8 in.)
Color: White.
Compliance with Standards: FCC Part 15, ETS300-220 and
MPT1349
OPTIONAL MOUNTING ACCESSORIES
SRF-201: Flush mounting adapter.
SRS-202: Mounting stand for portable applications.
BR-1: Swivel bracket for wall mounting.
BR-2: BR-1 + corner mounting adapter.
BR-3: BR-1 + ceiling mounting adapter.
to 50 C (14 to 122 F).
° ° ° °
to 60 ° C (-4 ° F to 140 ° F).
1
