Scope of Application
7
1
Specifications
Table size
Transverse stroke (x)
Vertical adjustment (z)
Depth stroke (y)
Drill chuck capacity
Suction port diameter
2
Standard Delivery
- Installation hardware
- Clamping arm
- Auxiliary fences
- Instructions
3
User Responsibility
This accessory will perform in conformity with the description contained in the instructions provided. This accessory
must be checked periodically. Defective equipment (including power cable) should not be used. Parts that are
broken, missing, plainly worn, distorted or contaminated, should be replaced immediately. Should such repair or
replacement become necessary, it is recommended that such repairs are carried out by qualified persons approved
by metabo or its representatives.This accessory, or any of its parts, should not be altered or changed from standard
specifications. The user of this accessory shall have the sole responsibility for any malfunction which results from
improper use or unauthorized modification from standard specifications, faulty maintenance, damage or improper
repair by anyone other than qualified persons approved by metabo or its representatives.
4
Tools (Optional Accessories)
Morticing bit
Morticing bit
Morticing bit
Morticing bit
Morticing bit
5

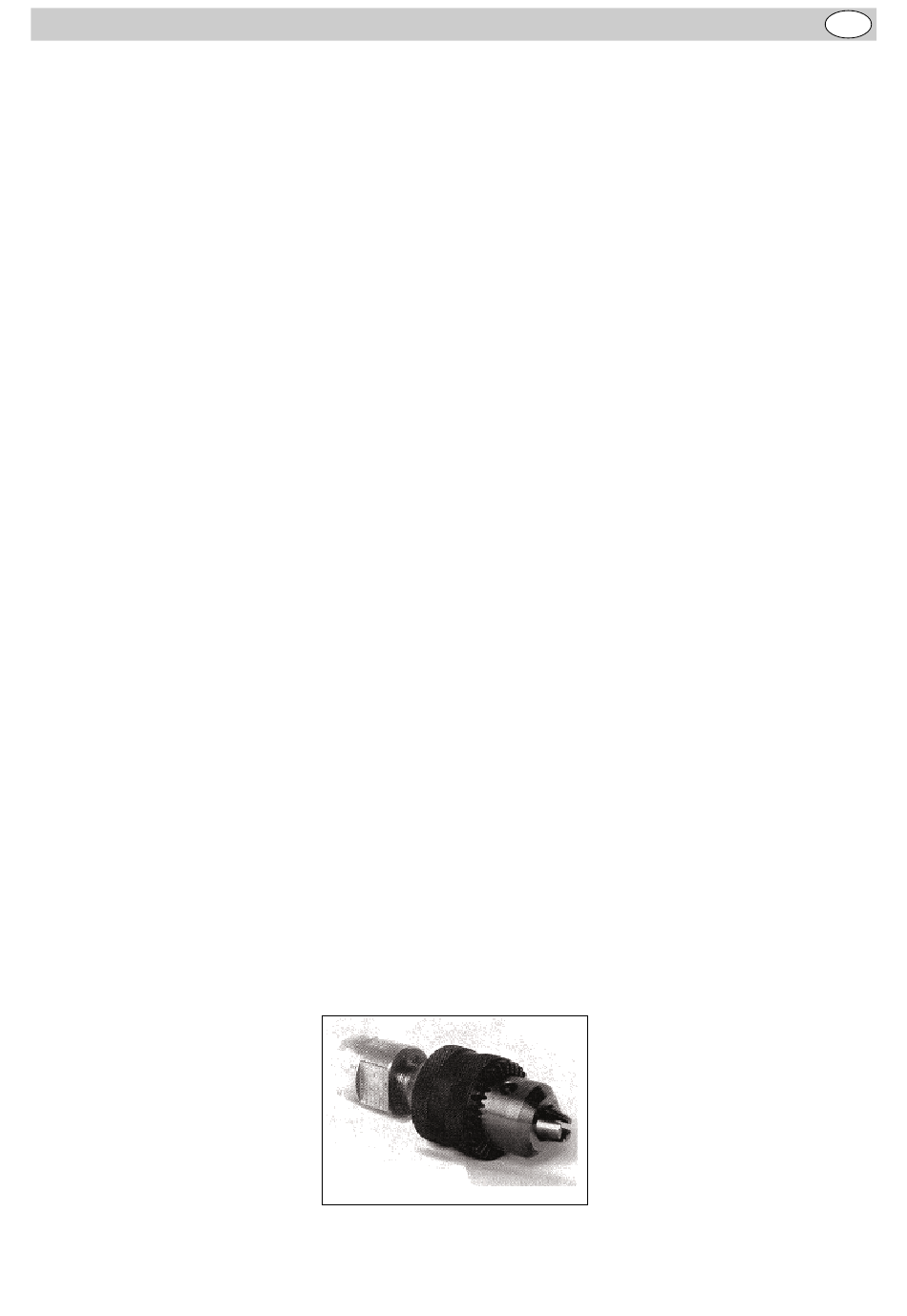

Drill Chuck (Optional Accessory)
Three jaw drill chuck
Chuck capacity Ø 3 - 16 mm
Stock-nr. 091 101 5137
6
Scope of Application
This Morticing Attachment is designed for use with metabo Combination Planer/Thicknesser models HC
314, HC 320 and HC 410. With it round or elongated holes can be drilled into solid wood or derived wood products.
: 400x190 mm
: 200 mm
: 120 mm
: 120 mm
: Ø 3-16 mm
: Ø100 mm
Diameter
Shank Ø
8 mm
16 mm
10 mm
16 mm
12 mm
16 mm
14 mm
16 mm
16 mm
16 mm
8
9
10
11
12
13
14
Stock-no.
091 101 4394
091 101 4408
091 101 4416
091 101 4424
091 101 4440
