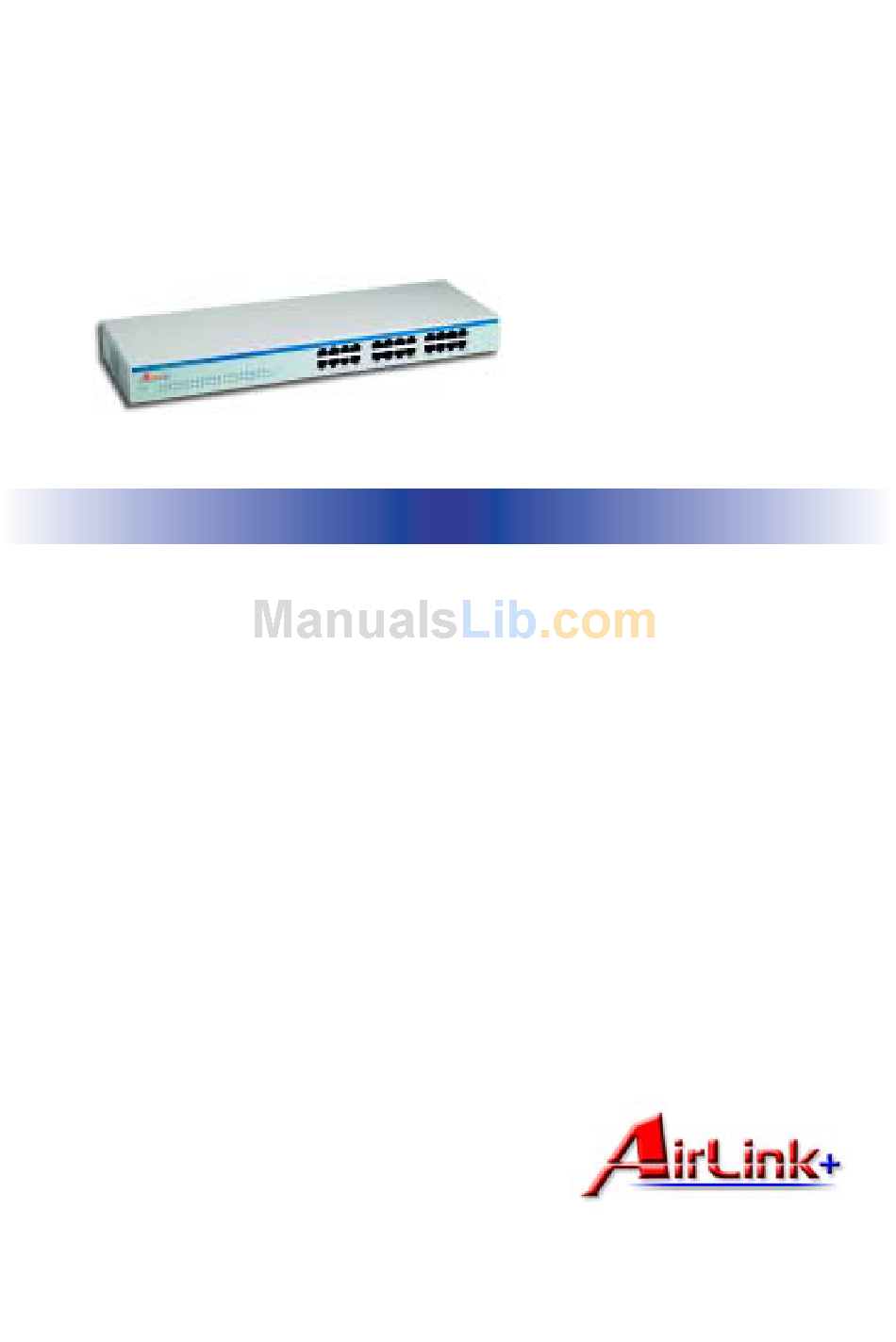

Page 1: Ethernet Switch
24-Port 10/100Mbps Ethernet Switch User Guide 24-Port 10/100Mbps Ethernet Switch User Guide UG-ASW224-1103 AirLink+... -
Page 2: Ce Mark Warning
Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (t Reduced Air Flow Installation of the equipment in a rack should be such that the amount of air flow AirLink+... - Page 3 Reliable Earthing Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g., use of power strips). AirLink+...
- Page 4 24-Port 10/100Mbps Ethernet Switch User Guide AirLink+...
-
Page 5: Table Of Contents
Unpacking ... 11 Installation ... 11 Rack Mounting ... 12 External Components ... 13 Front Panel ... 13 LED Indicator Panel ... 15 Twisted Pair Ports ... 15 Rear Panel ... 16 Technical Specifications ... 17 Technical Support ... 19 AirLink+... -
Page 6: About This Guide
Identifying External Components Identifying External Components Switch’s front panel, rear panel, and LED indicators. T T T T T echnical Specifications echnical Specifications echnical Specifications Lists the Switch’s technical echnical Specifications echnical Specifications (general, physical and environmental, and performance) specifications. AirLink+... -
Page 7: Introduction
100Mbps, while maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps Fast Ethernet is compatible with all other 10Mbps Ethernet environments, it provides a straightforward upgrade and takes advantage of the existing investment in hardware, software, and personnel training. AirLink+... -
Page 8: Switching Technology
Switches supporting both traditional 10Mbps Ethernet and 100Mbps Fast Ethernet are also ideal for bridging existing 10Mbps networks with the new 100Mbps networks. Switching LAN technology is a marked improvement over the previous generation of network bridges, which were AirLink+... -
Page 9: Features
Switch can be cascaded from any port and to any number of switches. The Switch is a perfect choice for site planning to upgrade to Fast Ethernet in the future. Ethernet workgroups can connect to the Switch now, and change adapters and hubs AirLink+... -
Page 10: Unpacking & Installation
MAC addresses Supports 2.5-Mbits RAM for data buffering Front-panel diagnostic LEDs IEEE 802.3x flow control for full-duplex Back pressure flow control for half-duplex Standard 19" Rack-mountable size Unpacking & Installation This chapter provides unpacking and setup information for the Switch. AirLink+... -
Page 11: Unpacking
Leave at least 10 cm of space at the front and rear of the hub for ventilation. Install the Switch on a sturdy, level surface that can support its weight, or in an EIA standard-size equipment rack. For information on rack installation, see the Rack Mounting section. AirLink+... -
Page 12: Rack Mounting
Attach the mounting brackets at the switch's front panel (one on each side), and secure them with the provided screws (see Figure 1). Figure 1. Attach Brackets to Switch AirLink+... -
Page 13: External Components
(see Figure 2). Figure 2. Attach Switch to Rack External Components This section identifies all the major external components of the switch. Front Panel Figure 3 shows the front panels of the switch. AirLink+... - Page 14 24-Port 10/100Mbps Ethernet Switch User Guide AirLink+...
-
Page 15: Led Indicator Panel
'plug and play' capability without the need of confusing crossover cables or crossover ports. With the Auto-MDI function, you just need to plug-in the network cable to the hub directly and no need to care if the AirLink+ LINK 100 Mbps... -
Page 16: Rear Panel
(see Figure 5). Plug in the female connector of the provided power cord into this connector, and the male into a power outlet. The Switch supports input voltages from 100 to 240 AC at 50 to 60 Hz. Figure 5. AC Power Connector Rear of Switch AC Power Connector AirLink+... -
Page 17: Technical Specifications
Fast ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Topology Star Network 10 Base-T: Two-pair UTP Cat. 3, 4, 5; EIA/TIA-568 cables 100- STP 100 Base-TX: Two-pair UTP Cat. 5; EIA/TIA-568 100- STP Number of ports AirLink+ Description 10/100 Mbps auto-MDI/MDI-X ports... - Page 18 Operating: 0˚ to 40˚ C Temperature Storage: 10˚ to 70˚ C Humidity Operating: 10 to 90% Storage: 5 to 90% Dimensions 440 x 140 x 44 mm (W FCC Class B, CE Mark Class B, VCCI Class B Safety CUL, CB Specification AirLink+...
-
Page 19: Technical Support
RAM buffer 512 Kbytes per device Filtering 8K entries per device address table Packet filtering/ 10Mbps ethernet: 14,880/pps forwarding rate 100Mbps fast ethernet: 148,800/pps MAC address Automatic update learning Technical Support E-mail: support@airlinkplus.com Toll Free: 1-888-746-3238 Web Site: www.airlinkplus.com AirLink+ Specification... - Page 20 AirLink+. All other product or service names are the property of their respective holders. AirLink+ products are protected under numerous U.S. and foreign patents and pending applications, maskwork rights, and copyrights.
