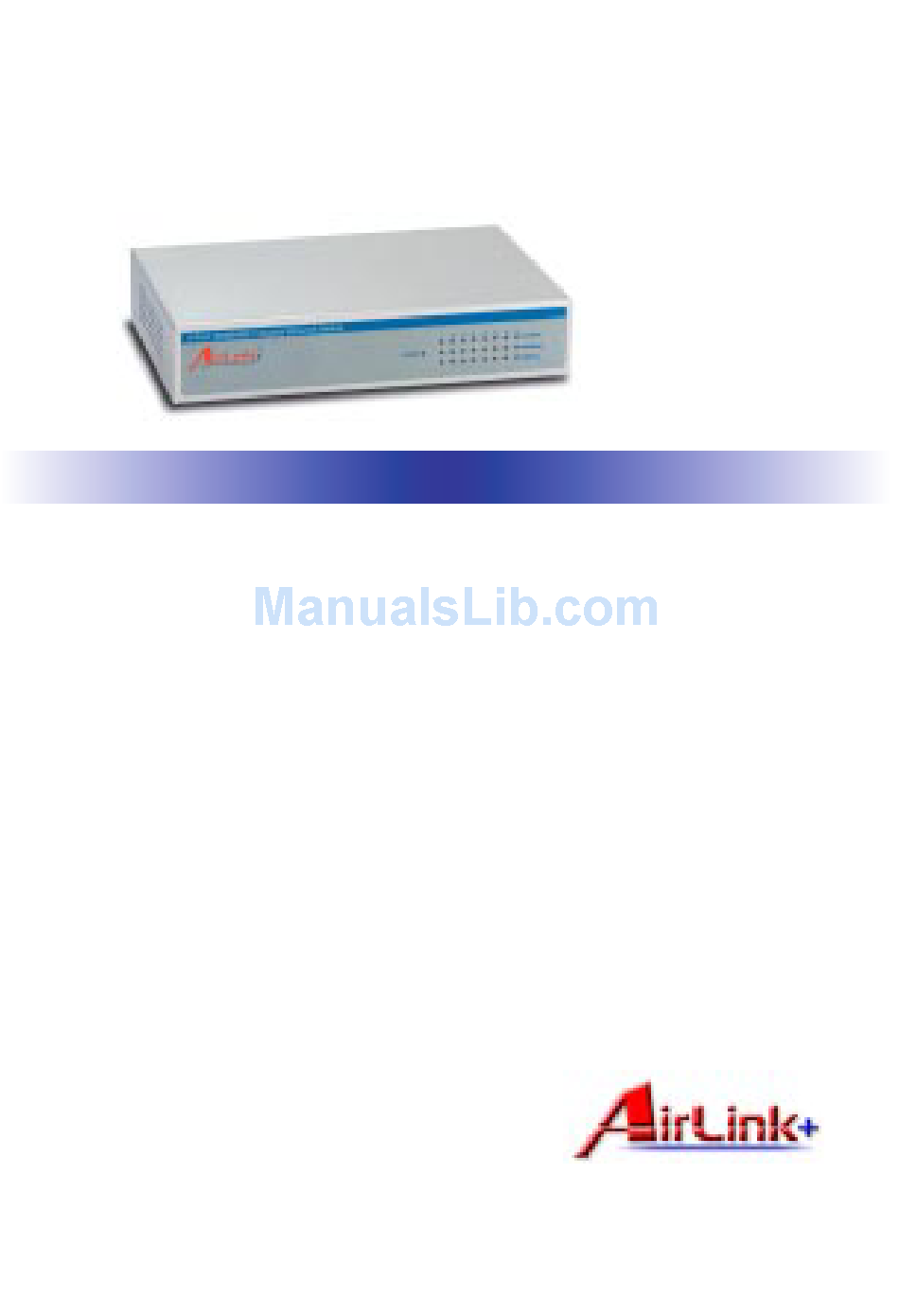

- Page 1 8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide 8-Port 10/100/1000Mbps Gigabit Ethernet Switch (Desktop) User Guide UG-AGIGA8SW-1108 AirLink+...
-
Page 2: Ce Mark Warning
8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Table Of Contents
8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide Table of Contents About this Guide ... 4 Terms ... 4 Overview of This User Guide ... 4 Introduction ... 5 Gigabit Ethernet Technology ... 5 Switching Technology ... 6 Features ... 7 Unpacking &... -
Page 4: About This Guide
8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide About This Guide This user's guide tells you how to install your 8-Port 1000BASE-T Gigabit Ethernet Switch, how to connect it to your Gigabit Ethernet network. Terms & Usage For simplicity, this documentation uses the terms "Switch" (first letter upper case) to refer to the 8-Port 1000BASE-T Gigabit Ethernet Switch, and "switch"... -
Page 5: Introduction
8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide Introduction This section describes the features of the 5-Port 1000BASE-T Gigabit Ethernet Switch, as well as providing some background information about Gigabit Ethernet and switching technology. Gigabit Ethernet Technology Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the same packet structure, format, and support for CSMA/CD protocol, full duplex, flow control, and management objects, but with a tenfold increase in... -
Page 6: Switching Technology
8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide amount of time. Switching Technology Another key development pushing the limits of Ethernet technology is in the field of switching technology. A switch bridges Ethernet packets at the MAC address level of the Ethernet protocol transmitting among connected Ethernet or fast Ethernet LAN segments. -
Page 7: Features
8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide Features The 8-Port 1000BASE-T Gigabit Ethernet Switch was designed for easy installation and high performance in an environment where traffic on the network and the number of users increase continuously. Eight 1000BASE-T Gigabit Ethernet ports Supports Auto-Negotiation for 10/100/1000Mbps and duplex mode Supports Auto-MDIX for each port... -
Page 8: Unpacking & Installation
8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide Unpacking & Installation This chapter provides unpacking and setup information for the Switch. Unpacking Open the shipping carton and carefully unpack the contents. The carton contains the following items: One 8-port 10/100/1000Mbps Gigabit Ethernet Switch One external power adapter Four rubber feet to be used for shock cushioning... -
Page 9: External Components
8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide External Components This section identifies all the major external components of the switch. Both the front and rear panel is shown, followed by a description of each panel's feature. Front Panel Figure 1 shows the Switch’s front panel. Figure 1. -
Page 10: Led Indicator Panel
8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide LED Indicator Panel The LED indicator panel contains the following indicators: POWER POWER POWER POWER POWER - This indicator lights green when the Switch is receiving power, otherwise, it is off. Link/Act Link/Act - These LED indicators are lighted up when Link/Act Link/Act Link/Act... - Page 11 8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide 1000BASE-T Ports Eight Gigabit Ethernet ports of 10/100/1000Mbps Auto- Negotiation interface. DC Power Jack Power is supplied through an external AC power adapter. Check the technical specification section for information about the AC power input voltage. Since the switch does not include a power switch, plugging its power adapter into a power outlet will immediately power it on.
-
Page 12: Technical Specifications
8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide Technical Specifications Tables 1 to 3 provide Switch specifications. Table 1. General Specifications Feature IEEE 802.3 10 Base-T ethernet Standards IEEE 802.3a 100 Base-TX fast ethernet IEEE 802.3ab 1000 Base-T gigabit IEEE 802.3x flow control Protocol CSMA/CD Ethernet:... - Page 13 8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide Table 2. Physical & Environmental Specifications Feature DC inputs 5 V, 2.4 A Power 11.5 watts (maximum) consumption Temperature Operating: 0˚ to 40˚ C Storage: 10˚ to 55˚ C Humidity 5 to 95% RH, non-condensing Dimensions Certification FCC Class A, CE Mark Class A, VCCI Class A...
-
Page 14: Technical Support
Store-and-forward Transmission method 256 Kbytes per device RAM buffer Filtering 8K entries per device address table Packet filtering/ Full wire speed forwarding rate MAC address Self-learning, auto-aging learning Technical Support E-mail: support@airlinkplus.com Toll Free: 1-888-746-3238 Web Site: www.airlinkplus.com Specification AirLink+... - Page 15 8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide AirLink+...
- Page 16 8-Port 10/100/1000Mbps Gigabit Ethernet Switch User Guide Copyright 2003 AirLink+. All rights reserved. AirLink+, the stylized AirLink+ logo, specific product designations, and all other words and logos that are identified as trademarks and/or service marks are, unless noted otherwise, the trademarks and service marks of AirLink+.
