Summary of Contents for Airlinkplus UG-ASW116-1103

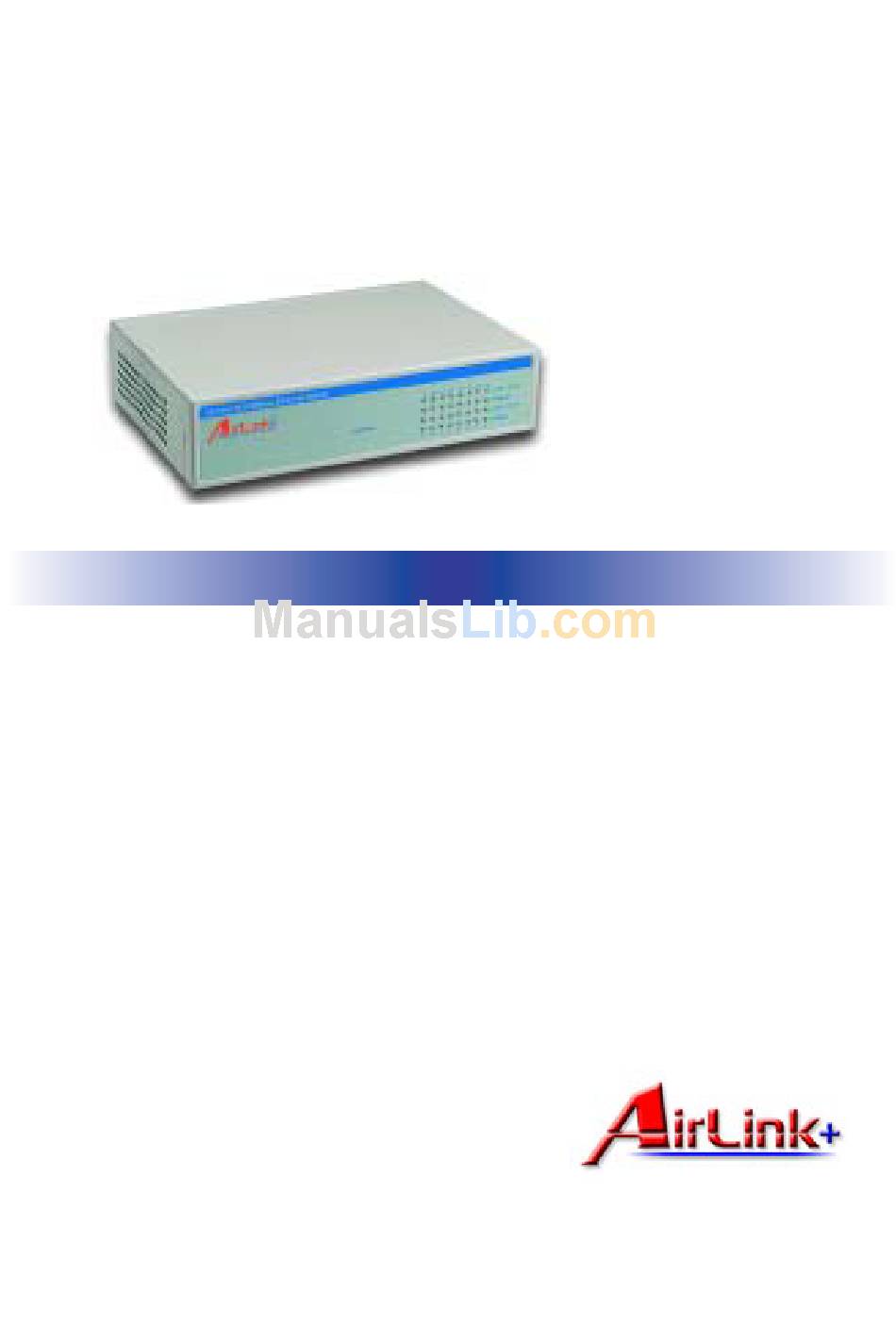

- Page 1 16-Port 10/100Mbps Fast Ethernet Switch (Desktop) User Guide 16-Port 10/100Mbps Fast Ethernet Switch (Desktop) User Guide UG-ASW116-1103 AirLink+...
-
Page 2: Ce Mark Warning
CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. AirLink+... -
Page 3: Table Of Contents
Features ... 7 Unpacking & Installation ... 8 Unpacking ... 8 Installation ... 9 External Components ... 9 Front Panel ... 9 LED Indicator Panel ... 10 Rear Panel ... 10 Technical Specifications ... 12 Technical Support ... 14 AirLink+... -
Page 4: About This Guide
Identifying External Components Identifying External Components Switch’s front panel, rear panel, and LED indicators. T T T T T echnical Specifications echnical Specifications echnical Specifications Lists the Switch’s technical echnical Specifications echnical Specifications (general, physical and environmental, and performance) specifications. AirLink+... -
Page 5: Introduction
Ethernet environments, it provides a straightforward upgrade and takes advantage of the existing investment in hardware, software, and personnel training. Switching Technology Another approach to pushing beyond the limits of Ethernet technology is the development of switching technology. A AirLink+... - Page 6 Switches, on the other hand, are less expensive, easier to set up, and practically maintenance free, which make them an ideal solution to today's LAN congestion AirLink+...
-
Page 7: Features
The Switch combines dynamic memory allocation with store-and-forward switching method to ensure that the buffer is effectively allocated for each port. It also controls the data flow between transmit and receive nodes to guarantee against all possible packet loss. AirLink+... -
Page 8: Unpacking & Installation
Unpacking Open the shipping carton and carefully unpack the contents. The carton contains the following items: One the 16-port 10/100Mbps Fast Ethernet Switch One external power adapter Four rubber feet to be used for shock cushioning This User's Guide AirLink+... -
Page 9: Installation
Front Panel Figure 1 shows the Switch’s front panel. Figure 1. Switch Front Panel 16-Port 10/100-Mbps Ethernet Switch AirLink+ 9 10 11 12 13 14 15 16 Power 1 2 3 4 5 6 7 8 Link... -
Page 10: Led Indicator Panel
Figure 2. Switch Rear Panel Twisted-Pair Ports These ports supports automatic MDI/MDIX crossover detection function gives true ‘plug and play' capability without the need of confusing crossover cables or crossover ports. Twisted Pair Jacks 7.5-V DC/1 A DC Power Jack AirLink+... - Page 11 Power is supplied through an external AC power adapter. Check the technical specification section for information about the AC power input voltage. Since the switch does not include a power switch, plugging its power adapter into a power outlet will immediately power it on. AirLink+...
-
Page 12: Technical Specifications
Fast ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Topology Star Network 10 Base-T: Two-pair UTP Cat. 3, 4, 5; EIA/TIA-568 cables 100- STP 100 Base-TX: Two-pair UTP Cat. 5; EIA/TIA-568 100- STP Number of ports Description 10/100 Mbps auto-MDI/MDI-X ports AirLink+... - Page 13 6 watts (maximum) consumption Temperature Operating: 0˚ to 40˚ C Storage: 10˚ to 70˚ C Humidity Operating: 10 to 90% Storage: 5 to 90% Dimensions FCC Class A, CE Mark Class A, VCCI Class A AirLink+ Specification 44 mm (W...
-
Page 14: Technical Support
RAM buffer 512 Kbytes per device Filtering 8K entries per device address table Packet filtering/ 10Mbps ethernet: 14,880/pps forwarding rate 100Mbps fast ethernet: 148,800/pps MAC address Automatic update learning Technical Support E-mail: support@airlinkplus.com Toll Free: 1-888-746-3238 Web Site: www.airlinkplus.com Specification AirLink+... - Page 15 16-Port 10/100Mbps Fast Ethernet Switch (Desktop) User Guide AirLink+...
- Page 16 AirLink+. All other product or service names are the property of their respective holders. AirLink+ products are protected under numerous U.S. and foreign patents and pending applications, maskwork rights, and copyrights.
