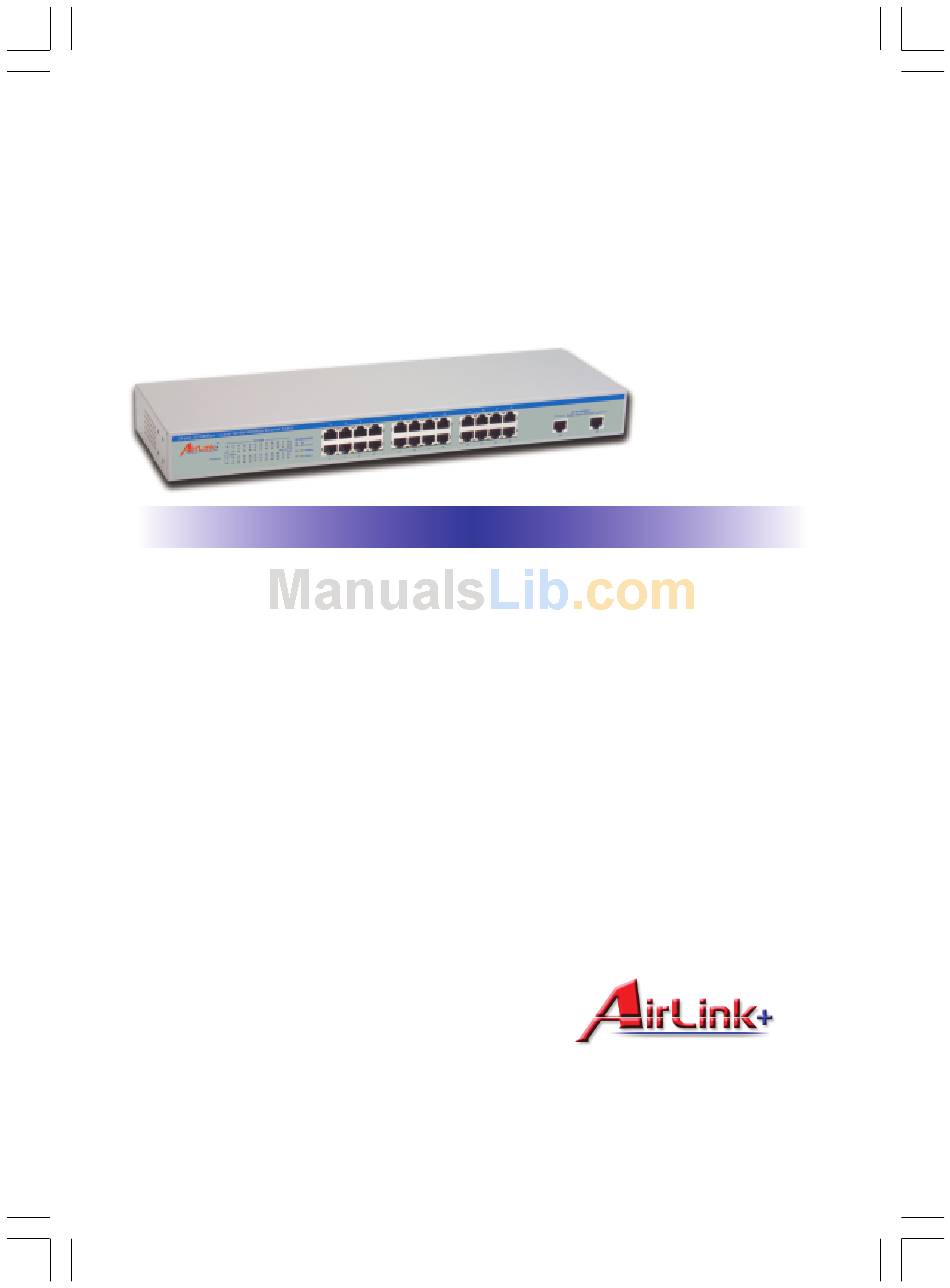

- Page 1 26-port 10/100/1000Mbps Gigabit & Fast Ethernet Switch 26-Port 10/100/1000Mbps Gigabit & Fast Ethernet Switch 2 × 1000BASE plus 24 × 10/100BASE ports User Guide ASW-2402 AirLink+...
-
Page 2: Ce Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. VCCI Warning This is a product of VCCI Class A Compliance. AirLink+... - Page 3 Reliable Earthing- Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g., use of power strips). AirLink+...
- Page 4 26-port 10/100/1000Mbps Gigabit & Fast Ethernet Switch AirLink+...
-
Page 5: Table Of Contents
... 1 1 RONT ANEL ... 1 2 ANEL UNDERSTANDING LED INDICATORS ... 13 LED ... 1 3 OWER 1~24 S ... 1 3 ORTS TATUS 25 & P 26 S TATUS TECHNICAL SPECIFICATIONS ... 15 AirLink+ ... 1 4... -
Page 6: Term/Usage
In this guide, the term “Switch” (first letter upper case) refers to your 26-Port 10/100/1000Mbps Gigabit & Ethernet Switch with 2 x 1000BASE-T plus 24 x 10/100BASE-TX ports, and “switch” (first letter lower case) refers to other Ethernet switches. AirLink+... -
Page 7: Introduction
100Mbps, while maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps Fast Ethernet is compatible with all other 10Mbps Ethernet envi- ronments, it provides a straightforward upgrade and takes advantage of the existing investment in hardware, software, and personnel train- ing. AirLink+... -
Page 8: Gigabit Ethernet Technology
Gigabit Ethernet to eventually operate over unshielded twisted-pair (UTP) cabling, outfitting your network with a powerful 1000-Mbps-capable backbone/server connection creates a flexible foundation for the next generation of network technology products. AirLink+... -
Page 9: Switching Technology
Routers have also been used to segment local area net- works, but the cost of a router, the setup and maintenance required make routers relatively impractical. Today switches are an ideal solution to most kinds of local area network congestion problems. AirLink+... -
Page 10: Features
Wire speed reception and transmission Store-and-Forward switching method Integrated address Look-Up Engine, supports 8K MAC addresses Supports 2.5Mbit RAM for data buffering Extensive front-panel diagnostic LEDs IEEE 802.3x flow control for full-duplex Back pressure flow control for half-duplex Standard 19” Rack-mount size AirLink+... -
Page 11: Unpacking And Installation
One AC power cord, suitable for your area’s electrical power connections Four rubber feet to be used for shock cushioning Screws and two mounting brackets User’s Guide If any item is found missing or damaged, please contact your local reseller for replacement. AirLink+... -
Page 12: Installation
For information on rack installation, see the next section, Rack Mounting. When installing the Switch on a level surface, attach the rubber feet to the bottom of each device. The rubber feet cushion the hub and protect the hub case from scratch- ing. AirLink+... -
Page 13: Rack Mounting
Switch (one at each side), and secure them with the provided screws. Figure 2. Combine the Switch with the provided screws Then, use screws provided with the equipment rack to mount the Switch in the rack. AirLink+... -
Page 14: Connecting Network Cable
Hz. The power switch is located at the rear of the unit adjacent to the AC power connector and the system fan. The switch’s power sup- ply will adjust to the local power source automatically and may be turned on without having any or all LAN segment cables connected. AirLink+... -
Page 15: Identifying External Components
NIC (Network Interface Card) or switches and hubs. 1000BASE-T Twisted Pair Ports (Port 25~26) The Switch is equipped with two Gigabit twisted pair ports, sup- ported auto negotiable 10/100/1000Mbps and auto MDI/MDIX crossover detection function. These two ports can operate in half- and full- duplex modes. AirLink+... -
Page 16: Rear Panel
This is a three-pronged connector that supports the power cord. Plug in the female connector of the provided power cord into this connector, and the male into a power outlet. Supported input volt- ages range from 100-240V AC at 50-60Hz. AirLink+... -
Page 17: Understanding Led Indicators
On : When the LED lights on, the respective port is connected to the 10/100Mbps Ethernet network. Blinking : When the LED is blinking, the port is transmitting or receiving data on the 10/100Mbps Ethernet network. Off : No link. AirLink+... -
Page 18: Port 25 & Port 26 Status Led
100Mbps On : When the LED lights on, the respective port is connected to a 100Mbps Fast Ethernet network. Off : The respective port is connected to a 10Mbps or Gigabit Ethernet network, otherwise, no link. AirLink+... -
Page 19: Technical Specifications
26-port 10/100/1000Mbps Gigabit & Fast Ethernet Switch Technical Specifications Technical Support E-mail: support@airlinkplus.com Toll Free: 1-888-746-3238 Web Site: www.airlinkplus.com AirLink+... - Page 20 AirLink+. All other product or service names are the property of their respective holders. AirLink+ products are protected under numerous U.S. and...
