Summary of Contents for Kärcher 220 H plus

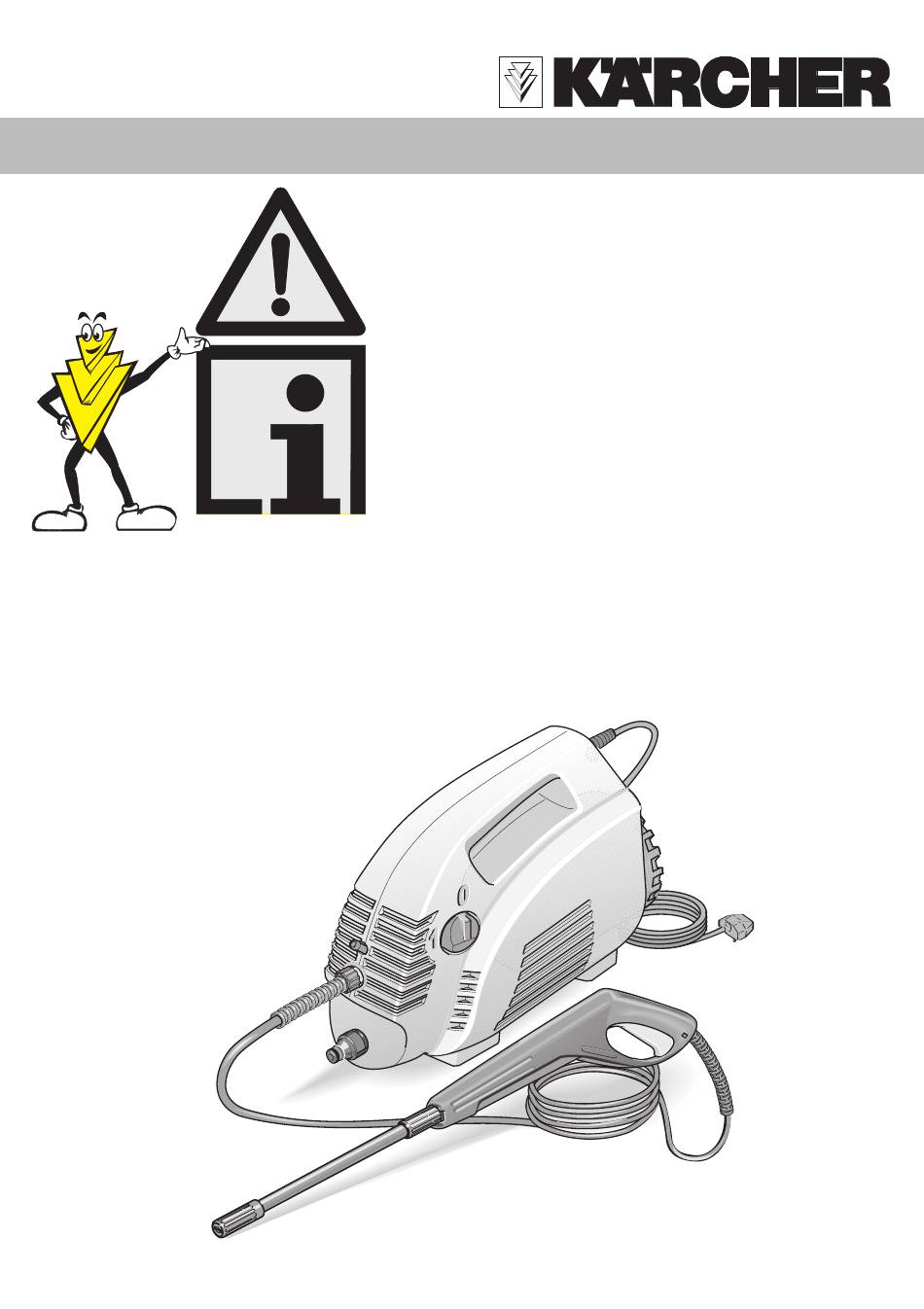

- Page 1 220 H plus 5.959-499 04/02...

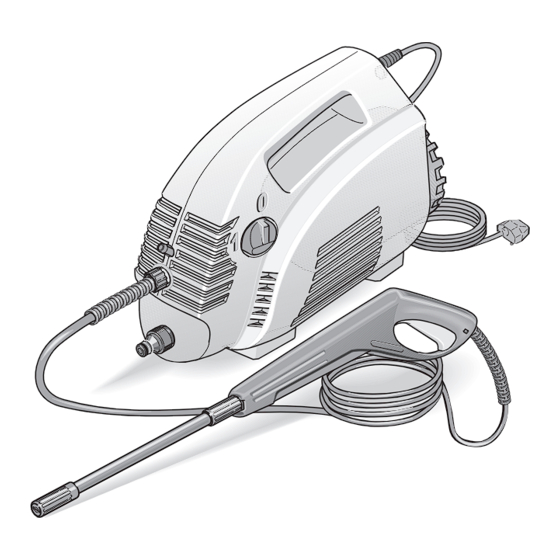

- Page 2 THANK YOU FOR PURCHASING A KARCHER PRESSURE WASHER PLEASE READ THIS LEAFLET CAREFULLY BEFORE OPERATING YOUR MACHINE. WHAT IS A PRESSURE WASHER? A Pressure Washer is essentially a powerful electric motor driving a set of pistons that force water through a small nozzle, thus creating a pressurised jet of water.
-
Page 3: Table Of Contents
INDEX APPLICATIONS SAFETY INSTRUCTIONS GETTING STARTED 3.1 Contents 3.2 Water Connection 3.3 Electrical Connection 3.4 Suction Mode 3.5 Detergent OPERATING YOUR PRESSURE WASHER 4.1 High Pressure Operation 4.2 Low Pressure Operation Without Brush 4.3 Low Pressure Operation With Brush 4.4 End Of Operation IMPORTANT –... - Page 4 1. APPLICATIONS The main applications for this product are DOMESTIC cleaning tasks: • Cars, motorbikes, caravans, boats and bicycles • Patio’s, fences, garden walls, pathways, driveways and house facades – particularly useful for cleaning block driveways • Removal of algae and moss from roofs, brickwork and guttering •...
-
Page 5: Safety Instructions
2. SAFETY INSTRUCTIONS BEFORE STARTING UP YOUR PRESSURE WASHER PLEASE CHECK YOU HAVE THE FOLLOWING: We recommend you purchase these items from a reputable store • RCD plug and socket that will interrupt electrical supply in an emergency • A typical garden hose (minimum length 7.5 metres) with suitable hose connection (Hoselock/Gardena type) to match the coupling on the machine (hose and connector not supplied). - Page 6 3. GETTING STARTED 3.1 Contents Upon opening the carton, if you do not have all the items as detailed please contact the Customer Helpline. Assembly see Page19 1 Carry Handle 7 Spray Lance with Double Nozzle 2 Detergent Suction Tube 8 Spray Gun with 3 On/Off Switch Safety Lock Device (A)
-
Page 7: Water Connection
Please follow these instructions carefully for troublefree cleaning Use the diagram on Page 6 for reference purposes 3.2 Water Connection • The minimum length of supply hosepipe advised for maximum user convenience is 7.5 metres with a diameter of 12.5 mm (1/2") to avoid backpressure and any associated potential damage to your machine. -
Page 8: Detergent
3.4 Detergent Only cleaning agents recommended by Karcher (UK) Ltd. should be used. Unsuitable detergents could damage your Pressure Washer and the object being cleaned. Recommended Detergents 1. The following cleaning agent may be used undiluted: (But further dilution is practical but trial before application) Universal Cleaner ...... -
Page 9: Operating Your Pressure Washer
4. OPERATING YOUR PRESSURE WASHER If you have followed all the instructions so far, you are now ready to have fun cleaning the KARCHER way!!! • Turn on the supply water and press the Spray Gun lever (No.8) until the water flows freely and removes all air locks from the hoses •... -
Page 10: High Pressure Operation
4.1 High Pressure Operation • Ensure the Spray Lance with the Double Nozzle (No.7) is attached securely to the Spray Gun (No.8) and the nozzle is set to the required jet. • Aim the lance towards the object to be cleaned making sure the recommended working distance is used for reference (See Page 9). -
Page 11: Low Pressure Operation Without Brush
• To rinse the detergent away, close the trigger, increase the nozzle setting towards High Pressure setting. No detergent can be drawn in with a high working pressure. Spray with the required jet spray setting until no trace of detergent can be found. 4.3 Low Pressure Operation with Brush (not included) When cleaning surfaces with a grease contamination - typically car... -
Page 12: End Of Operation
4.4 End Of Operation ALWAYS REMEMBER TO RINSE YOUR PRESSURE WASHER AFTER USING DETERGENT BY HANGING THE DETERGENT SUCTION TUBE IN A CONTAINER WITH CLEAN WATER AND RUN THE PUMP FOR APPROXIMATELY ONE MINUTE IN LOW PRESSURE SETTING. In the event of a break of 5 minutes in the operation of your Karcher Pressure Washer, always switch off the pump to avoid damage due to overheating. - Page 13 • Connect the water supply hose and, without the lance attached, squeeze the trigger gun to run water through your pressure washer until the water flow is constant. Then plug in to the electric supply. • Unless drawing water from an open water source such as a water butt, always have a minimum of 10 metres (25 feet) of uncoiled hose between the water tap and your machine.
- Page 14 6. ACCESSORIES A wide range of popular accessories are available from your local store selling Karcher Pressure Washers. 4.760-269 Triple Nozzle Lance An integral fan jet, pencil jet and low pressure chemical jet in one unit allows optimal nozzle selection. 4.760-212 Underbody Lance Extended lance with angled end and upward firing jet for cleaning under cars, gutters etc.
-
Page 15: Accessories / Spare Parts
6. SPARE PARTS In the event that your Karcher Pressure Washer requires replacement parts – please refer to the diagram below AND identify the particular model of your machine by reference to the data plate on the underside. Please write, email or fax Karcher (see page 17) with any parts order you wish to place. - Page 16 7. PROBLEM CHECKLIST The machine you have chosen is of the highest quality. Correctly stored away from frost it should operate without problems. If a problem does arise, please check the following chart as a solution may be at hand. PROBLEM POSSIBLE CAUSE CORRECTION...
-
Page 17: Help-Line
8. HELP - LINE Karcher (UK) Limited operate a help-line allowing customers to discuss any problems experienced with our products. The help-line operates during normal business hours, if you have diffi- culty getting through, please understand that there are peak periods during the day when our consultants are unable to take all calls coming in. -
Page 18: Technical Data
9. TECHNICAL DATA Power Connection Voltage ............230-240 V -AC Current ............1~50/60 Hz Connected/Load ............. 1.6 KW Mains Fuse .............. 13 AMP Water Connection Supply Temperature (Max) ........40 °C Supply Rate (Min) ..........600 litres per hour Supply Pressure (Max) ..........12 bar Supply Hose Length .......... -
Page 19: Assembly
10. ASSEMBLY High Pressure Hose (No.9) and Spray Gun (No.8) - Page 20 EU Declaration of Conformity We hereby declare that the equipment described below conforms to the relevant fundamental safety and health requirements of the appropriate EU Directives, both in its basic design and construction as well as in the version marketed by us. This declaration will cease to be valid if any modifications are made to the machine without our express approval.
