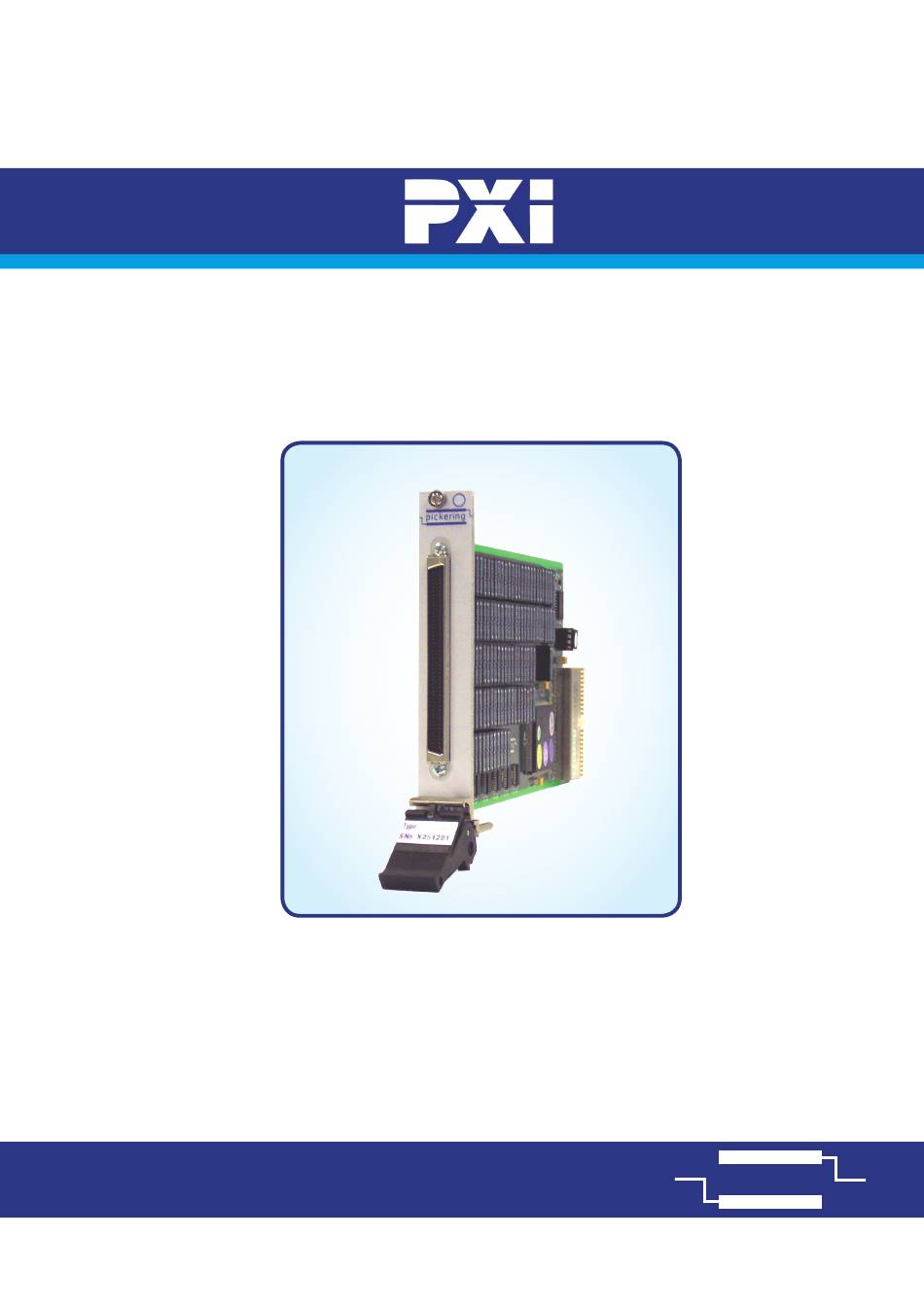

- Page 1 User Manual 18-Bank, 3-Channel, 1-Pole Multiplexer Module (Model No. 40-617) Issue 6.1 April 2017 pickeringtest.com pickering 18 BANK, 3 CHANNEL, 1-POLE MULTIPLEXER MODULE 40-617 Page (1)
- Page 2 © COPYRIGHT (2017) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
- Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
-
Page 4: Product Safety
PRODUCT SAFETY SAFETY SYMBOLS The following safety symbols may be used on the product and throughout the product documentation. MEANING / DESCRIPTION SYMBOL PROTECTIVE EARTH (GROUND) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth (ground) electrode. -
Page 5: Table Of Contents
Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Cards....4.1 Module Architecture 40-617 ..........4.3 Sub-unit Cross Reference ............4.4 Programming The Module 40-617 ........4.5 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1... - Page 6 THIS PAGE INTENTIONALLY BLANK 18 BANK, 3 CHANNEL, 1-POLE MULTIPLEXER MODULE 40-617 Page (VI)
-
Page 7: Warnings And Cautions
Unused slots in the PXI/LXI chassis are populated with blanking plates to prevent access to user I/O signals that may be present. Blanking panels are available to order from Pickering in a variety of slot widths. If the product is not used in this manner for example by using an extender card then additional care must be taken to avoid contact with exposed signals. - Page 8 THIS PAGE INTENTIONALLY BLANK 18 BANK, 3 CHANNEL, 1-POLE MULTIPLEXER MODULE 40-617 Page (VIII)
-
Page 9: Technical Specification
SECTION 1 - TECHNICAL SPECIFICATION pickering SECTION 1 - TECHNICAL SPECIFICATION 40-617 18-Bank, 3-Channel, 1-Pole Multiplexer Module ● 18 Separate Multiplexers in One Module ● Each Multiplexer is Single Pole, 3-Way ● Isolation Switches to Reduce Signal Loading ● Inter-Bank Linking Relays Allow Multiplexer Size to be Increased in Multiples of 3 ●... - Page 10 Full power load: >1x10 operations Product Relay Kit All Types 91-100-003 Power Requirements For further assistance, please contact your local Pickering sales office. +3.3V +12V -12V 0.3A typ. 1.4A max. Mating Connectors & Cabling For connection accessories for the 40-617 module...
- Page 11 All modules are fully CE compliant and meet applicable EU Systems such as LabVIEW RT. For other RTOS support directives: Low-voltage safety EN61010-1:2001, contact Pickering. These drivers may be used with a variety of EMC Immunity EN61000-6-1:2001, Emissions EN55011:1998. programming environments and applications including: —...
- Page 12 SECTION 1 - TECHNICAL SPECIFICATION pickering THIS PAGE INTENTIONALLY BLANK 18 BANK, 3 CHANNEL, 1-POLE MULTIPLEXER MODULE 40-617 Page 1.4...
-
Page 13: Functional Description
SECTION 2 - TECHNICAL DESCRIPTION pickering SECTION 2 - TECHNICAL DESCRIPTION FUNCTIONAL DESCRIPTION A functional block diagram is provided in Figure 2.1. The Multiplexer Module is powered by +5V inputs via Compact PCI connector J1. The interface to the user test equipment is via the front panel mounted 96-pin micro-D connector, J2. - Page 14 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK 18 BANK, 3 CHANNEL, 1-POLE MULTIPLEXER MODULE 40-617 Page 2.2...
-
Page 15: Installation
Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident. -
Page 16: Hardware Installation
For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence. -
Page 17: Testing Operation
Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card. - Page 18 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK 18 BANK, 3 CHANNEL, 1-POLE MULTIPLEXER MODULE 40-617 Page 3.4...
-
Page 19: Programming Guide
IVI Driver for Windows - pi40iv The pi40iv IVI (Interchangeable Virtual Instrument) driver supports all Pickering Interfaces PXI switch cards that are consistent with the Iviswtch class model - as are the great majority of cards in the System 40/45/50 ranges. It integrates well with LabWindows/CVI and LabVIEW, and is fully compatible with Switch Executive. - Page 20 Pickering LXI products include an SSH interface which allows remote command line access to control cards, or, using a suitable package, programmatic control. The user is advised to visit the Pickering web site for further details of all the above drivers, where documentation, example programs, and further help with driver choice are available.
-
Page 21: Module Architecture 40-617
SECTION 4 - PROGRAMMING GUIDE pickering MODULE ARCHITECTURE 40-617: MULTIPLEXER MODULE The 40-617-021 Multiplexer Module utilises an effective array of 89 SPST relays. In addition 12 uncommitted SPST relays are fitted. In the default state all relays are open circuit. Energising a particular relay creates a signal path between the common terminal and the corresponding channel terminal(s). -
Page 22: 40-617 Sub-Unit Cross Reference
SECTION 4 - PROGRAMMING GUIDE pickering TABLE 4.1 - Multiplexer Module 40-617: Sub-Units 40-617 Sub-Unit Cross Reference Bank Bank Switch Function RL37 Bank Link 1 to 2 RL73 RL38 Bank Link 2 to 3 RL74 RL39 Bank Link 3 to 4... -
Page 23: Programming The Module 40-617
SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE 40-617 Here are some simple examples of using the drivers with the 40-617 Multiplexer module. Using PILPXI To operate a relay the user could use the simple OpBit command or the WriteSub commands OpBit DWORD sub_unit = 1;... - Page 24 SECTION 4 - PROGRAMMING GUIDE pickering MUXM Functionality If the string “DisMuxCheck” appears in the driver option string, the IVI check for connecting COM to multiple channels is disabled, this allows MUXM cards to connect multiple channels to single COM.
- Page 25 Using the 40-617 in an LXI Chassis Low level Driver When fitted in a Pickering LXI modular chassis, the LXI kernel driver may be used. Commands are very similar to the pilpxi commands listed above, but with the addition of a parameter representing the communication session open to the LXI device.
- Page 26 SECTION 4 - PROGRAMMING GUIDE pickering THIS PAGE INTENTIONALLY BLANK 18 BANK, 3 CHANNEL, 1-POLE MULTIPLEXER MODULE 40-617 Page 4.8...
- Page 27 SECTION 5 - CONNECTOR INFORMATION pickering SECTION 5 - CONNECTOR INFORMATION Chan 1 Chan 1 Chan 2 Chan 2 Chan 3 Chan 3 Chan 1 Chan 1 Chan 2 Chan 2 Chan 3 Chan 3 Chan 1 Chan 1 Chan 2...
- Page 28 SECTION 5 - CONNECTOR INFORMATION pickering THIS PAGE INTENTIONALLY BLANK 18 BANK, 3 CHANNEL, 1-POLE MULTIPLEXER MODULE 40-617 Page 5.2...
-
Page 29: Trouble Shooting
PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible... - Page 30 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK 18 BANK, 3 CHANNEL, 1-POLE MULTIPLEXER MODULE 40-617 Page 6.2...
-
Page 31: Maintenance Information
For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading. - Page 32 SECTION 7 - MAINTENANCE INFORMATION pickering TABLE 7.1 - Multiplexer Module 40-617: Relay Numbering 40-617 Switch Function/Relay Cross Reference Relay Relay Relay Switch Function Switch Function Switch Function Number Number Number Bank 1 Chan 1 Bank 13 Chan 1 RL37...
- Page 33 SECTION 7 - MAINTENANCE INFORMATION pickering RL93 RL92 RL91 RL90 RL95 RL97 RL96 RL94 RL101 RL99 RL98 RL100 SPARE Figure 7.1 - Multiplexer Module: Component Layout 18 BANK, 3 CHANNEL, 1-POLE MULTIPLEXER MODULE 40-617 Page 7.3...
- Page 34 SECTION 7 - MAINTENANCE INFORMATION pickering THIS PAGE INTENTIONALLY BLANK 18 BANK, 3 CHANNEL, 1-POLE MULTIPLEXER MODULE 40-617 Page 7.4...
