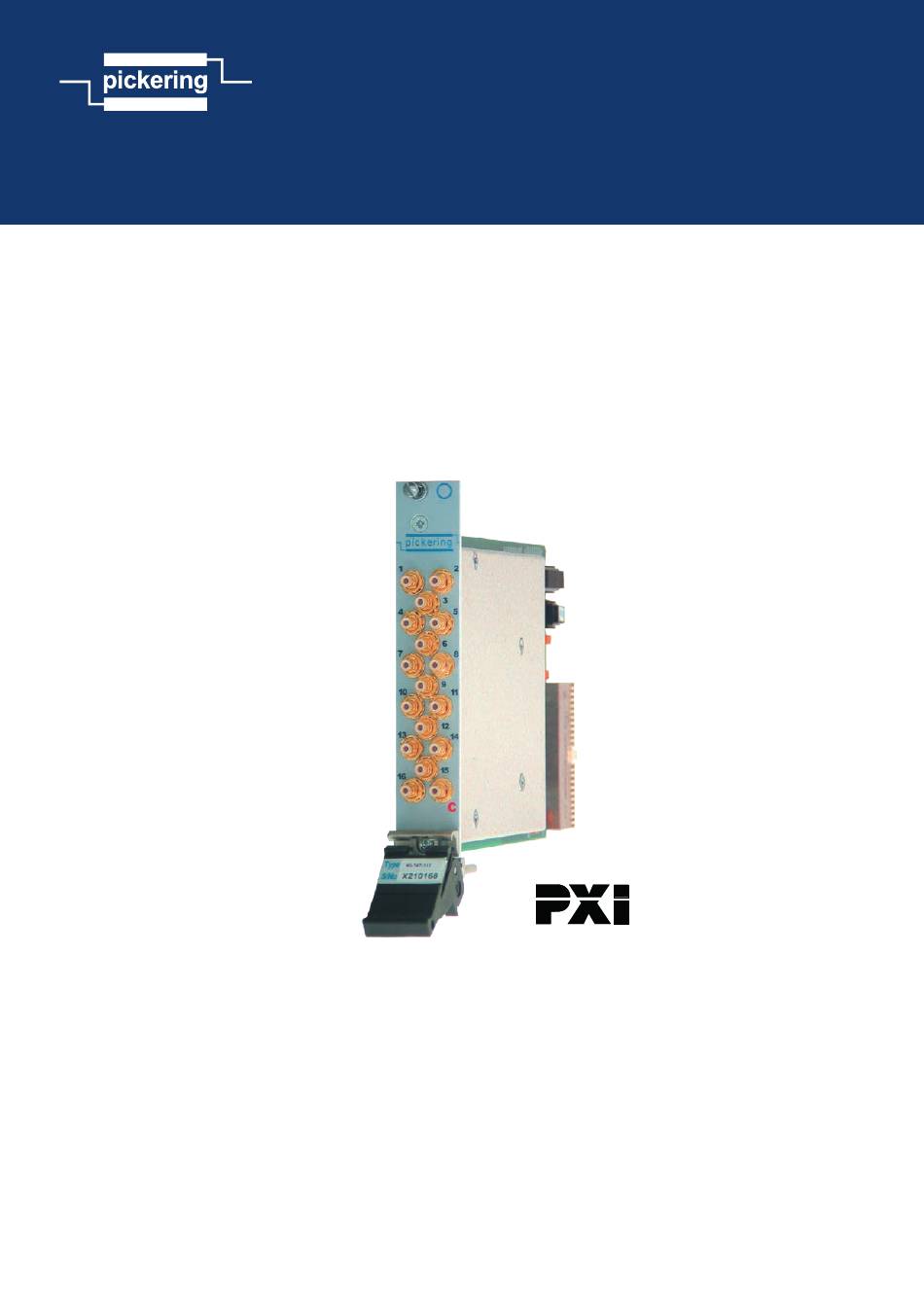

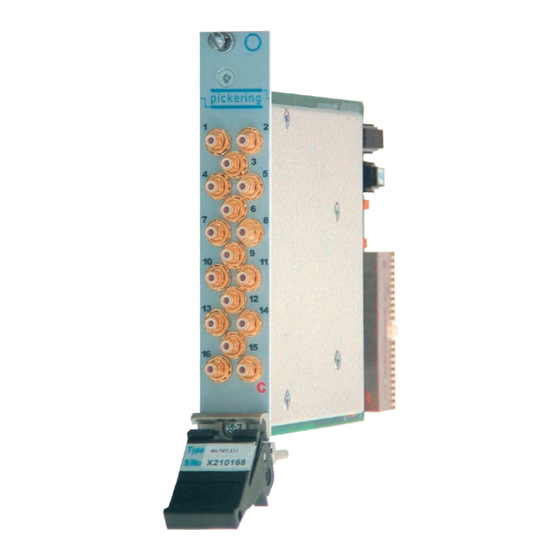

40-747-731/748-xx1/749-731 User Manual
PXI RF Multiplexer Modules
pickeringtest.com
Issue 1.1 June 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXI 40-748 1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pickering PXI 40-748 1 Series

Summary of Contents for Pickering PXI 40-748 1 Series

  • Page 1 40-747-731/748-xx1/749-731 User Manual PXI RF Multiplexer Modules pickeringtest.com Issue 1.1 June 2021...
  • Page 2 © COPYRIGHT (2021) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    PRODUCT SAFETY SAFETY SYMBOLS The following safety symbols may be used on the product and throughout the product documentation. MEANING / DESCRIPTION SYMBOL PROTECTIVE EARTH (GROUND) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth (ground) electrode.

  • Page 5: Table Of Contents

    Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Modules ....4.1 Module Architecture ..............4.2 Sub-Units ................4.3 Programming The Module ............4.4 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1...
  • Page 6 THIS PAGE INTENTIONALLY BLANK RF MULTIPLEXER MODULES 40-747 / 748 / 749 Page (VI)

  • Page 7: Warnings And Cautions

    Unused slots in the host chassis are populated with blanking plates to prevent access to user I/O signals that may be present. Blanking panels are available to order from Pickering in a variety of slot widths. If the product is not used in this manner for example by using an extender card then additional care must be taken to avoid contact with exposed signals.
  • Page 8 THIS PAGE INTENTIONALLY BLANK RF MULTIPLEXER MODULES 40-747 / 748 / 749 Page (VIII)
  • Page 9 The 40-747-731 is supplied with drivers that allow the module to be supported in all popular PXI software environments. The module can also be supported in Pickering Interfaces’ LXI/PXI Modular Chassis, allowing users to choose an LXI or PXI switching platform while retaining the same high performance characteristics and driver environment.

  • Page 10: Technical Specification

    SECTION 1 - TECHNICAL SPECIFICATION pickering Specifications Single 16-Channel RF MUX, 40-747-731 40-747-731 Performance Plots (Plots taken from typical sample showing all connecting paths for parameter) 40-747-731 (75 Ω) Typical insertion loss 40-747-731 (75 Ω) Typical VSWR plots for each channel.
  • Page 11 SECTION 1 - TECHNICAL SPECIFICATION pickering Specifications Single 16-Channel RF MUX, 40-747-731 Mechanical Characteristics RF Specification Single slot 3U PXI (CompactPCI card). RF Frequency Range: DC to 1 GHz 3D models for all versions in a variety of popular file Characteristic Impedance: 75 Ω...
  • Page 12 40-747-731 Kits of replacement relays are available for the majority of Product Customization Pickering’s PXI switching products, simplifying servicing Pickering modules are designed and manufactured on our and reducing down-time. own flexible manufacturing lines, giving complete product Product Relay Kit...
  • Page 13 The 40-748-xx1 is supplied with drivers that allow it to be supported in all popular PXI software environments. The COM1 module can also be supported in Pickering Interfaces’ LXI/PXI Modular Chassis, allowing users to choose an LXI or PXI switching platform with the same high performance characteristics and driver environment.
  • Page 14 SECTION 1 - TECHNICAL SPECIFICATION pickering Specifications Dual 8-Channel RF MUX, 40-748-xx1 40-748-521 Performance Plots (Plots taken from typical sample showing all connecting paths for parameter) 40-748-521 (50 Ω) Typical insertion loss 40-748-521 (50 Ω) Typical VSWR plots for each channel.
  • Page 15 SECTION 1 - TECHNICAL SPECIFICATION pickering Specifications Dual 8-Channel RF MUX, 40-748-xx1 40-748-731 Performance Plots (Plots taken from typical sample showing all connecting paths for parameter) 40-748-731 (75 Ω) Typical insertion loss 40-748-731 (75 Ω) Typical VSWR plots for each channel.
  • Page 16 SECTION 1 - TECHNICAL SPECIFICATION Specifications pickering Dual 8-Channel RF MUX, 40-748-xx1 Mechanical Characteristics RF Specification - 50 Ω Version SMA connector version: Dual slot 3U PXI (CompactPCI card). RF Frequency Range: DC to 2 GHz All other versions: Single slot 3U PXI (CompactPCI card).
  • Page 17 Kits of replacement relays are available for the majority of Pickering’s PXI switching products, simplifying servicing Product Customization and reducing down-time. Pickering modules are designed and manufactured on our Product Relay Kit own flexible manufacturing lines, giving complete product 40-748-521...
  • Page 18 The 40-749-731 is supplied with drivers that allow it to be supported in all popular PXI software environments. The module can also be supported in Pickering Interfaces’ LXI/PXI Modular Chassis, allowing users to choose an LXI BANK 1 or PXI switching platform with the same high performance characteristics and driver environment.
  • Page 19 SECTION 1 - TECHNICAL SPECIFICATION pickering Specifications Quad 4-Channel RF MUX, 40-749-731 RF Specification - 75 Ω Versions Mechanical Characteristics Single slot 3U PXI (CompactPCI card). RF Frequency Range: DC to 1 GHz 3D models for all versions in a variety of popular file Characteristic Impedance: 75 Ω...
  • Page 20 Quad 4:1 RF MUX 1.0/2.3 75 Ω 1 GHz 40-749-731 Kits of replacement relays are available for the majority of Product Customization Pickering’s switching products, simplifying servicing and Pickering modules are designed and manufactured on our reducing down-time. own flexible manufacturing lines, giving complete product Product Relay Kit...
  • Page 21 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
  • Page 22 Quad 4-Channel RF MUX, 40-749-731 Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os...

  • Page 23: Technical Description

    SECTION 2 - TECHNICAL DESCRIPTION pickering SECTION 2 - TECHNICAL DESCRIPTION FUNCTIONAL DESCRIPTION A functional block diagram is provided in Figure 2.1. The RF Multiplexer Module is powered by +12V and +5V inputs via Compact PCI connector J1. The interface to the user test equipment is via the front panel mounted SMB or SMA connectors.
  • Page 24 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK RF MULTIPLEXER MODULES 40-747 / 748 / 749 Page 2.2...

  • Page 25: Installation

    Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.

  • Page 26: Hardware Installation

    For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.

  • Page 27: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
  • Page 28 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK RF MULTIPLEXER MODULES 40-747 / 748 / 749 Page 3.4...

  • Page 29: Programming Guide

    SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads...

  • Page 30: Module Architecture

    SECTION 4 - PROGRAMMING GUIDE pickering MODULE ARCHITECTURE The 40-747 series of PXI modules are arrays SPDT relays configured as 16-channel (40-747), dual 8-channel (40- 748) and quad 4-channel tree multiplexers. Energising a particular signal path energises the corresponding relays to create a connection between the common and the required channel terminal.
  • Page 31 SECTION 4 - PROGRAMMING GUIDE pickering Single multiplexers are controlled with one sub-unit, dual multiplexers with two sub-units and quad multiplexers with four sub-units. Bits within the sub-units used to enable signal paths through the multiplexer. This is summarised in the following tables: TABLE 4.1 - RF Multiplexer...

  • Page 32: Programming The Module

    SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE Here are some simple examples of using the drivers with the 40-747 module. Using PILPXI To operate a relay the user could use the simple OpBit command or the WriteSub commands OpBit DWORD sub_unit = 1;...

  • Page 33: Connector Information

    SECTION 5 - CONNECTOR INFORMATION pickering SECTION 5 - CONNECTOR INFORMATION pickering 40-747-731 Figure 5.1 - RF Multiplexer Module 40-747: Connector Positions RF MULTIPLEXER MODULES 40-747 / 748 / 749 Page 5.1...
  • Page 34 SECTION 5 - CONNECTOR INFORMATION pickering pickering 40-748-511/751 Figure 5.2 - RF Multiplexer Module 40-748: Connector Positions RF MULTIPLEXER MODULES 40-747 / 748 / 749 Page 5.2...
  • Page 35 SECTION 5 - CONNECTOR INFORMATION pickering pickering 40-749-731 Figure 5.3 - RF Multiplexer Module 40-749: Connector Positions RF MULTIPLEXER MODULES 40-747 / 748 / 749 Page 5.3...
  • Page 36 SECTION 5 - CONNECTOR INFORMATION pickering THIS PAGE INTENTIONALLY BLANK RF MULTIPLEXER MODULES 40-747 / 748 / 749 Page 5.4...

  • Page 37: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible...
  • Page 38 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK RF MULTIPLEXER MODULES 40-747 / 748 / 749 Page 6.2...

  • Page 39: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
  • Page 40 SECTION 7 - MAINTENANCE INFORMATION pickering TABLE 7.2 - Single 16-Channel Multiplexer Module 40-747-731: Relay Numbering Relays Signal Path Energised Com to Ch1 11,15,14,9,8 Com to Ch2 15,14,9,8 Com to Ch3 16,14,9,8 Com to Ch4 14,9,8 Com to Ch5 13,12,9,8...
  • Page 41 SECTION 7 - MAINTENANCE INFORMATION pickering TABLE 7.3 - Dual 8-Channel Multiplexer Module 40-748-521/731: Relay Numbering Relays Signal Path Energised Com1 to Ch1,1 11,15,14 Com1 to Ch1,2 15,14 Com1 to Ch1,3 16,14 Com1 to Ch1,4 Com1 to Ch1,5 13,12 Com1 to Ch1,6...
  • Page 42 SECTION 7 - MAINTENANCE INFORMATION pickering TABLE 7.4 - Quad 4-Channel Multiplexer Module 40-749-731: Relay Numbering Relays Signal Path Energised Com1 to Ch1,1 11,15 Com1 to Ch1,2 Com1 to Ch1,3 Com1 to Ch1,4 Com2 to Ch2,1 13,12 Com2 to Ch2,2...
