Pickering PXI 40-661 User Manual

High density 10 amp power multiplexer module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
pickering
User Manual
High Density 10 Amp Power
Multiplexer Module
(Model No. 40-661)
Issue 3.0 February 2019
pickeringtest.com
pickering
HIGH DENSITY 10A POWER MUX MODULE 40-661
Page (1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXI 40-661 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pickering PXI 40-661

Summary of Contents for Pickering PXI 40-661

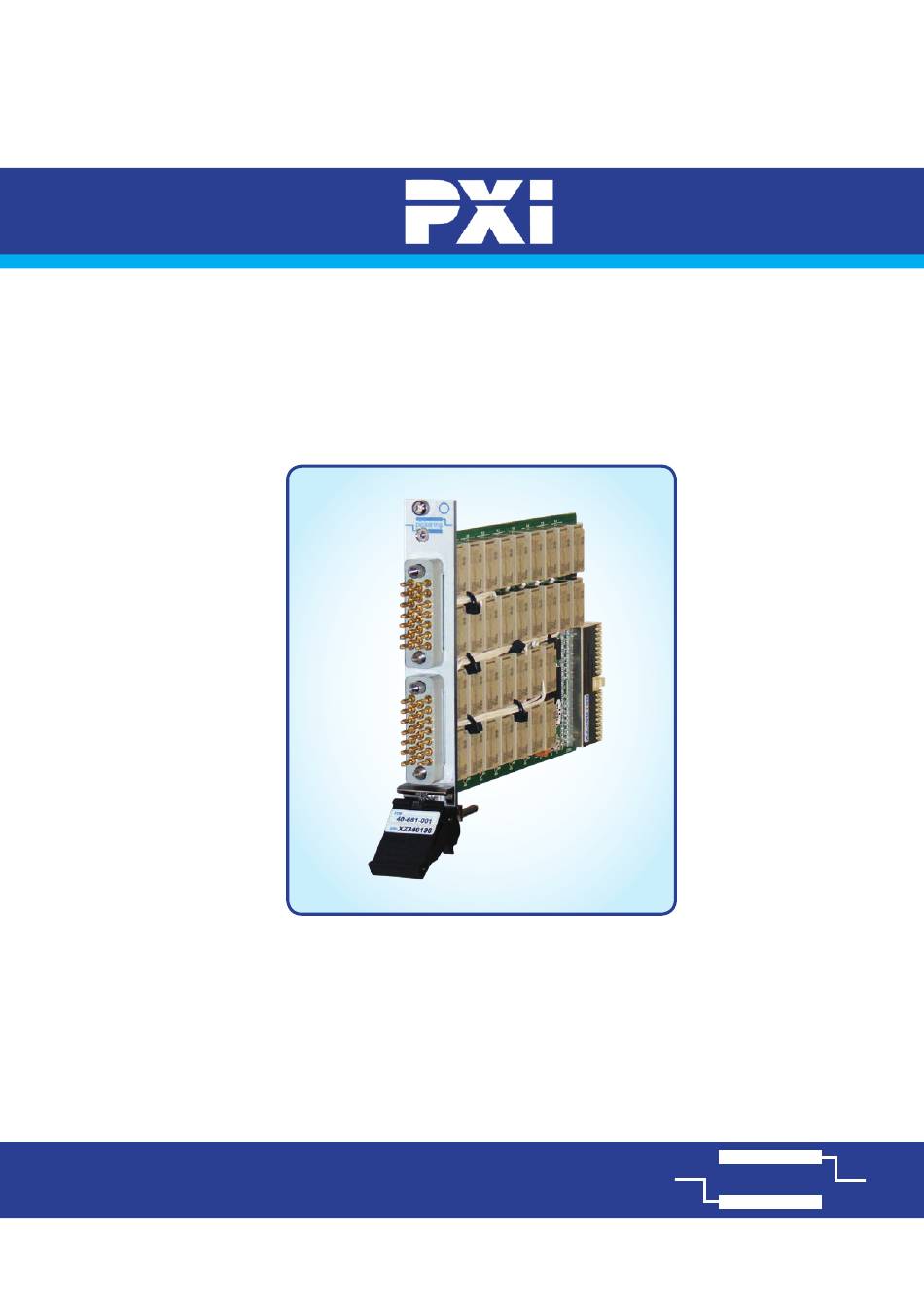

  • Page 1 User Manual High Density 10 Amp Power Multiplexer Module (Model No. 40-661) Issue 3.0 February 2019 pickeringtest.com pickering HIGH DENSITY 10A POWER MUX MODULE 40-661 Page (1)
  • Page 2 © COPYRIGHT (2019) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    PRODUCT SAFETY SAFETY SYMBOLS The following safety symbols may be used on the product and throughout the product documentation. MEANING / DESCRIPTION SYMBOL PROTECTIVE EARTH (GROUND) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth (ground) electrode.

  • Page 5: Table Of Contents

    Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Modules ....4.1 Module Architecture ..............4.2 Programming The Module ............4.10 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1 Section 7 Maintenance Information ............7.1...
  • Page 6 THIS PAGE INTENTIONALLY BLANK HIGH DENSITY 10A POWER MUX MODULE 40-661 Page (VI)

  • Page 7: Warnings And Cautions

    Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This module must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full specification, Secondary Circuit power supplies and the Device Under Test must...
  • Page 8 CAUTION - PRODUCT DOCUMENTATION SYMBOL Suitably qualified & trained users should ensure that the accompanying documentation is fully read and understood before attempting to install or operate the product. SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O signals (refer to the Maintenance Section).
  • Page 9 SECTION 1 - TECHNICAL SPECIFICATION pickering PXI High Density 10A Power Multiplexer 40-661 SECTION 1 - TECHNICAL SPECIFICATION • High Density, High Current Switching • 1-Pole Power Multiplexer Available as 8-Bank 4-Channel, 5-Bank 6-Channel, 4-Bank 8-Channel, 2-Bank 16-Channel or 1-Bank 32-Channel •...
  • Page 10 SECTION 1 - TECHNICAL SPECIFICATION pickering Specifications High Density 10A Power MUX – 40-661 40-661-101 Half Density 40-661-102 Half Density 40-661-103 Half Density 4-Bank 4-Channel, 1-Pole MUX 2-Bank 8-Channel, 1-Pole MUX 1-Bank 16-Channel, 1-Pole MUX Relay Type The 40-661 is fitted with high quality electro-mechanical power relays, gold-flash over silver alloy.
  • Page 11 PXI & CompactPCI Compliance Product Customization The module is compliant with the PXI Specification 2.2. Local Bus, Pickering PXI modules are designed and manufactured on our own Trigger Bus and Star Trigger are not implemented. flexible manufacturing lines, giving complete product control and Uses a 33MHz 32-bit backplane interface.
  • Page 12 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
  • Page 13 High Density 10A Power MUX – 40-661 Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os...
  • Page 14 SECTION 1 - TECHNICAL SPECIFICATION pickering THIS PAGE INTENTIONALLY BLANK HIGH DENSITY 10A POWER MUX MODULE 40-661 Page 1.6...

  • Page 15: Functional Description

    SECTION 2 - TECHNICAL DESCRIPTION pickering SECTION 2 - TECHNICAL DESCRIPTION FUNCTIONAL DESCRIPTION A functional block diagram is provided in Figure 2.1. The Multiplexer Module 40-661 is powered by +3.3V, +5V and +12V inputs via Compact PCI connector J1. The interface to the user test equipment is via one or two front panel mounted 20-pin GMCT connectors, J2 and J3.
  • Page 16 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK HIGH DENSITY 10A POWER MUX MODULE 40-661 Page 2.2...

  • Page 17: Installation

    Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.

  • Page 18: Hardware Installation

    For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.

  • Page 19: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
  • Page 20 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK HIGH DENSITY 10A POWER MUX MODULE 40-661 Page 3.4...

  • Page 21: Programming Guide

    SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads...

  • Page 22: Module Architecture

    SECTION 4 - PROGRAMMING GUIDE pickering MODULE ARCHITECTURE The 40-661 module is an array of up to 32 SPST relays factory wired to be one of eight different multiplexer configurations. In the default state, all multiplexer channels are open circuit. Energising a particular channel creates a signal path between the common terminal and the corresponding channel terminal.
  • Page 23 SECTION 4 - PROGRAMMING GUIDE pickering CH1.1 CH3.1 CH1.2 CH3.2 CH1.3 CH3.3 CH1.4 CH3.4 COM1 COM3 CH1.5 CH3.5 CH1.6 CH3.6 CH1.7 CH3.7 CH1.8 CH3.8 CH2.1 CH4.1 CH2.2 CH4.2 CH2.3 CH4.3 CH2.4 CH4.4 COM2 COM4 CH2.5 CH4.5 CH2.6 CH4.6 CH2.7 CH4.7 CH2.8...
  • Page 24 SECTION 4 - PROGRAMMING GUIDE pickering CH1.1 CH2.1 CH1.2 CH2.2 CH1.3 CH2.3 CH1.4 CH2.4 CH1.5 CH2.5 CH1.6 CH2.6 CH1.7 CH2.7 CH1.8 CH2.8 COM1 COM2 CH1.9 CH2.9 CH1.10 CH2.10 CH1.11 CH2.11 CH1.12 CH2.12 CH1.13 CH2.13 CH1.14 CH2.14 CH1.15 CH2.15 CH1.16 CH2.16 Figure 4.3 - 40-661-003: 2-Bank, 16-Channel 1-Pole Multiplexer...
  • Page 25 SECTION 4 - PROGRAMMING GUIDE pickering CH10 CH11 CH12 CH13 CH14 CH15 Figure 4.4 - 40-661-004: CH16 1-Bank, 32-Channel CH17 1-Pole Multiplexer CH18 CH19 CH20 CH21 CH22 CH23 CH24 CH25 CH26 CH27 CH28 CH29 CH30 CH31 CH32 Programming Bit / Signal Path Table For 1-Bank, 32-Channel 1-Pole Multiplexer (40-661-004)
  • Page 26 SECTION 4 - PROGRAMMING GUIDE pickering CH4.1 CH1.1 CH1.2 CH4.2 CH4.3 CH1.3 COM1 COM4 CH1.4 CH4.4 CH1.5 CH4.5 CH4.6 CH1.6 CH2.1 CH5.1 CH5.2 CH2.2 CH2.3 CH5.3 COM2 COM5 CH2.4 CH5.4 CH2.5 CH5.5 CH2.6 CH5.6 CH3.1 CH3.2 CH3.3 COM3 CH3.4 CH3.5 CH3.6...
  • Page 27 SECTION 4 - PROGRAMMING GUIDE pickering CH1.1 CH1.2 COM1 CH1.3 CH1.4 CH2.1 CH2.2 COM2 CH2.3 CH2.4 CH3.1 CH3.2 COM3 CH3.3 CH3.4 CH4.1 CH4.2 COM4 CH4.3 CH4.4 Figure 4.6 - 40-661-101: 4-Bank, 4-Channel 1-Pole Multiplexer Programming Bit / Signal Path Table For 4-Bank, 4-Channel 1-Pole Multiplexer (40-661-101)
  • Page 28 SECTION 4 - PROGRAMMING GUIDE pickering CH1.1 CH1.2 CH1.3 CH1.4 COM1 CH1.5 CH1.6 CH1.7 CH1.8 CH2.1 CH2.2 CH2.3 CH2.4 COM2 CH2.5 CH2.6 CH2.7 CH2.8 Figure 4.7 - 40-661-102: 2-Bank, 8-Channel 1-Pole Multiplexer Programming Bit / Signal Path Table For 2-Bank, 8-Channel 1-Pole Multiplexer (40-661-102)
  • Page 29 SECTION 4 - PROGRAMMING GUIDE pickering CH10 CH11 CH12 CH13 CH14 CH15 CH16 Figure 4.8 - 40-661-103: 1-Bank, 16-Channel 1-Pole Multiplexer Programming Bit / Signal Path Table For 1-Bank, 16-Channel 1-Pole Multiplexer (40-661-103) Sub- IVI Channel Sub- IVI Channel Signal Path...

  • Page 30: Programming The Module

    SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE Here are examples of using the drivers with the 40-661-004 (1-Bank, 32-Channel) Multiplexer module. Other modules in the range operate in a similar way but the sub-units / bits may vary.

  • Page 31: Connector Information

    SECTION 5 - CONNECTOR INFORMATION pickering SECTION 5 - CONNECTOR INFORMATION CH1.1 CH1.2 COM1 CH1.3 CH1.4 CH2.1 CH2.2 COM2 CH2.3 CH2.4 CH1.1 CH4.2 CH3.1 CH2.4 CH3.2 CH1.2 CH4.3 COM3 CH3.3 CH3.1 CH1.3 CH4.4 CH3.4 CH3.2 COM1 CH1.4 CH4.1 CH3.3 CH4.2 COM4 CH2.1...
  • Page 32 SECTION 5 - CONNECTOR INFORMATION pickering CH1.1 CH1.2 CH1.3 CH1.4 COM1 CH1.5 CH1.6 CH1.7 CH1.8 CH1.1 CH2.5 CH2.1 CH1.7 CH1.2 CH2.6 CH2.2 CH1.8 CH2.3 CH1.3 CH2.7 CH2.4 CH2.1 COM2 CH2.8 CH1.4 CH2.5 CH2.2 CH2.6 CH1.5 CH2.7 CH2.3 CH1.6 COM1 CH2.8 CH2.4...
  • Page 33 SECTION 5 - CONNECTOR INFORMATION pickering CH1.1 CH1.2 CH1.3 CH1.4 CH1.5 CH1.6 CH1.7 CH1.1 CH1.13 CH1.8 CH1.7 COM1 CH1.2 CH1.14 CH1.9 CH1.8 CH1.10 CH1.3 CH1.15 CH1.11 CH1.9 CH1.12 CH1.16 CH1.4 CH1.10 CH1.13 CH1.5 CH1.14 CH1.11 CH1.15 CH1.6 CH1.16 CH1.12 FP_GND COM1 CH2.1...
  • Page 34 SECTION 5 - CONNECTOR INFORMATION pickering CH13 CH14 CH10 CH11 CH15 CH12 CH16 CH13 CH10 CH14 CH17 CH15 CH11 CH18 CH16 CH12 CH17 FP_GND CH19 CH18 CH19 CH20 CH21 CH20 CH32 CH22 CH26 CH21 CH23 CH27 CH24 CH22 CH25 CH28...
  • Page 35 SECTION 5 - CONNECTOR INFORMATION pickering CH1.1 CH1.2 CH1.3 COM1 CH1.4 CH1.5 CH1.6 CH1.1 CH3.1 CH2.1 CH2.1 CH1.2 CH3.2 CH2.2 CH2.2 CH2.3 CH1.3 COM2 CH3.3 CH2.4 CH2.3 CH2.5 CH3.4 CH1.4 CH2.4 CH2.6 CH1.5 CH3.5 CH3.1 CH2.5 CH1.6 CH3.6 CH3.2 CH2.6 CH3.3...
  • Page 36 SECTION 5 - CONNECTOR INFORMATION pickering CH1.1 CH1.2 COM1 CH1.3 CH1.4 CH2.1 CH1.1 CH4.2 CH2.2 CH2.4 COM2 CH2.3 CH1.2 CH4.3 CH3.1 CH2.4 CH1.3 CH4.4 CH3.2 CH3.1 COM1 CH1.4 CH3.2 CH3.3 COM3 CH3.3 CH2.1 COM2 CH3.4 CH3.4 CH2.2 COM3 CH4.1 CH4.1 CH2.3...
  • Page 37 SECTION 5 - CONNECTOR INFORMATION pickering CH1.1 CH1.2 CH1.3 CH1.4 COM1 CH1.5 CH1.1 CH2.5 CH1.7 CH1.6 CH1.2 CH2.6 CH1.7 CH1.8 CH1.8 CH1.3 CH2.7 CH2.1 CH2.1 CH1.4 CH2.8 CH2.2 CH2.2 CH1.5 CH2.3 CH2.3 CH2.4 CH1.6 COM1 COM2 CH2.4 CH2.5 FP_GND COM2 CH2.6...
  • Page 38 SECTION 5 - CONNECTOR INFORMATION pickering CH13 CH14 CH15 CH16 CH10 CH10 CH11 CH11 CH12 CH13 CH12 FP_GND CH14 CH15 CH16 1-Bank, 16-Channel 1-Pole Multiplexer Figure 5.8 - 40-661-103 Pinout (20-pin Male GMCT Connector Viewed From Front of Module) HIGH DENSITY 10A POWER MUX MODULE 40-661...

  • Page 39: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible...
  • Page 40 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK HIGH DENSITY 10A POWER MUX MODULE 40-661 Page 6.2...

  • Page 41: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
  • Page 42 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.1 - 40-661-001: Relay Numbering Relay Table For 8-Bank, 4-Channel 1-Pole Multiplexer (40-661-001) Signal Path Relay No. Signal Path Relay No. COM1 to CH1.1 COM5 to CH5.1 RL17 COM1 to CH1.2 COM5 to CH5.2 RL18 COM1 to CH1.3...
  • Page 43 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.3 - 40-661-003: Relay Numbering Relay Table For 2-Bank, 16-Channel 1-Pole Multiplexer (40-661-003) Signal Path Relay No. Signal Path Relay No. COM1 to CH1.1 COM2 to CH2.1 RL17 COM1 to CH1.2 COM2 to CH2.2 RL18 COM1 to CH1.3...
  • Page 44 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.5 - 40-661-005: Relay Numbering Relay Table For 5-Bank, 6-Channel 1-Pole Multiplexer (40-661-005) Signal Path Relay No. Signal Path Relay No. COM1 to CH1.1 COM4 to CH4.1 RL21 COM1 to CH1.2 COM4 to CH4.2 RL22 COM1 to CH1.3...
  • Page 45 SECTION 7 - MAINTENANCE INFORMATION pickering Table 7.7 - 40-661-102: Relay Numbering Relay Table For 2-Bank, 8-Channel 1-Pole Multiplexer (40-661-102) Signal Path Relay No. Signal Path Relay No. COM1 to CH1.1 Not Fitted RL17 COM1 to CH1.2 Not Fitted RL18 COM1 to CH1.3...
  • Page 46 SECTION 7 - MAINTENANCE INFORMATION pickering RL13 RL17 RL21 RL25 RL29 RL31 Spare RL10 RL14 RL18 RL22 RL26 RL30 RL32 RL11 RL15 RL19 RL23 RL27 RL12 RL16 RL20 RL24 RL28 Figure 7.1 - 40-661 Multiplexer Module: Relay Positions HIGH DENSITY 10A POWER MUX MODULE 40-661...
