Exploded View; Exploded View Parts List - Roland DigitalDelay DD-3 Service Notes

Jun. 2010

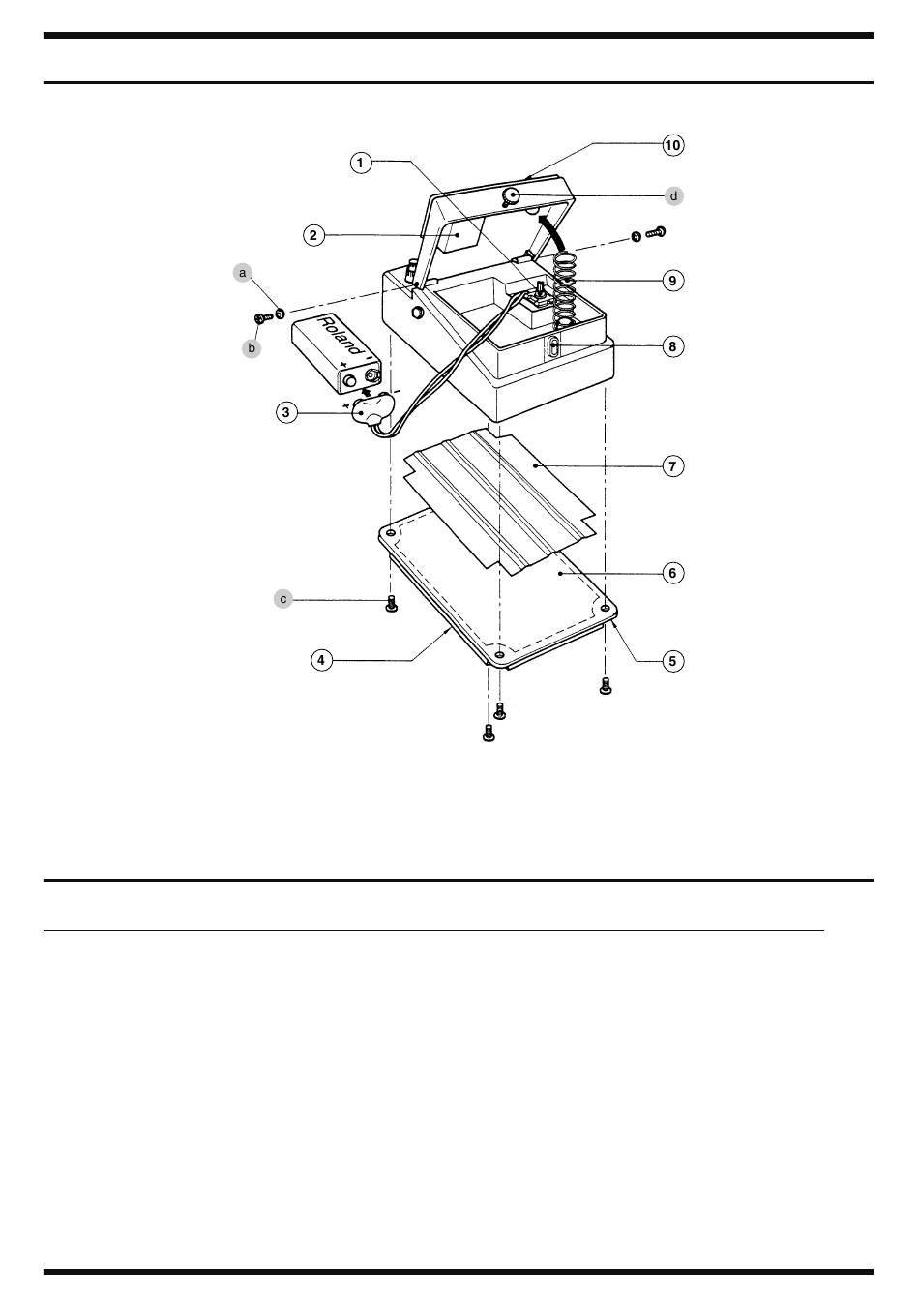

Exploded View

fig.bunkaizu.eps

Exploded View Parts List

No. Part Code Part Name
1 13129710R0 SWITCH(PUSH)
2 5100007503 BATTERY CUSHION
3 5100007872 BATTERY CONNECTOR
4 5100006631 CAUTION SEAL
5 5100006633 BOTTOM FOOT
6 5100006632 BOTTOM COVER
7 5100007509 INSULATING SHEET
8 5100007505 PEDAL GUIDE BUSH
9 5100007504 COIL SPRING
10 5100008294 PEDAL PLATE
a 5100008092 PLAIN WASHER 3X6X0.5
b 40010267 SCREW M3X10
c 5100007965 SCREW 3X6(H5029325R0)
d 5100007512 THUMB SCREW
Description
JM-0404
(22267333R0)
006P BATTERY SNAP (F3419102R0
PSA (FCC/EMI)(G2537516R2)
(22357305R0)
(22027851R0)
(75D273W0R0)
(22157702R0)
(22177109R0)
(22357304R0)
RESIN RTC(H5039708R0)
BINDING MACHINE FE BZC
PAN TAPPING B1 BZC
(H5029820R0)
DD-3(T)
Q'ty
1
1
1
1
1
1
1
1
1
1
2
2
4
1
5
