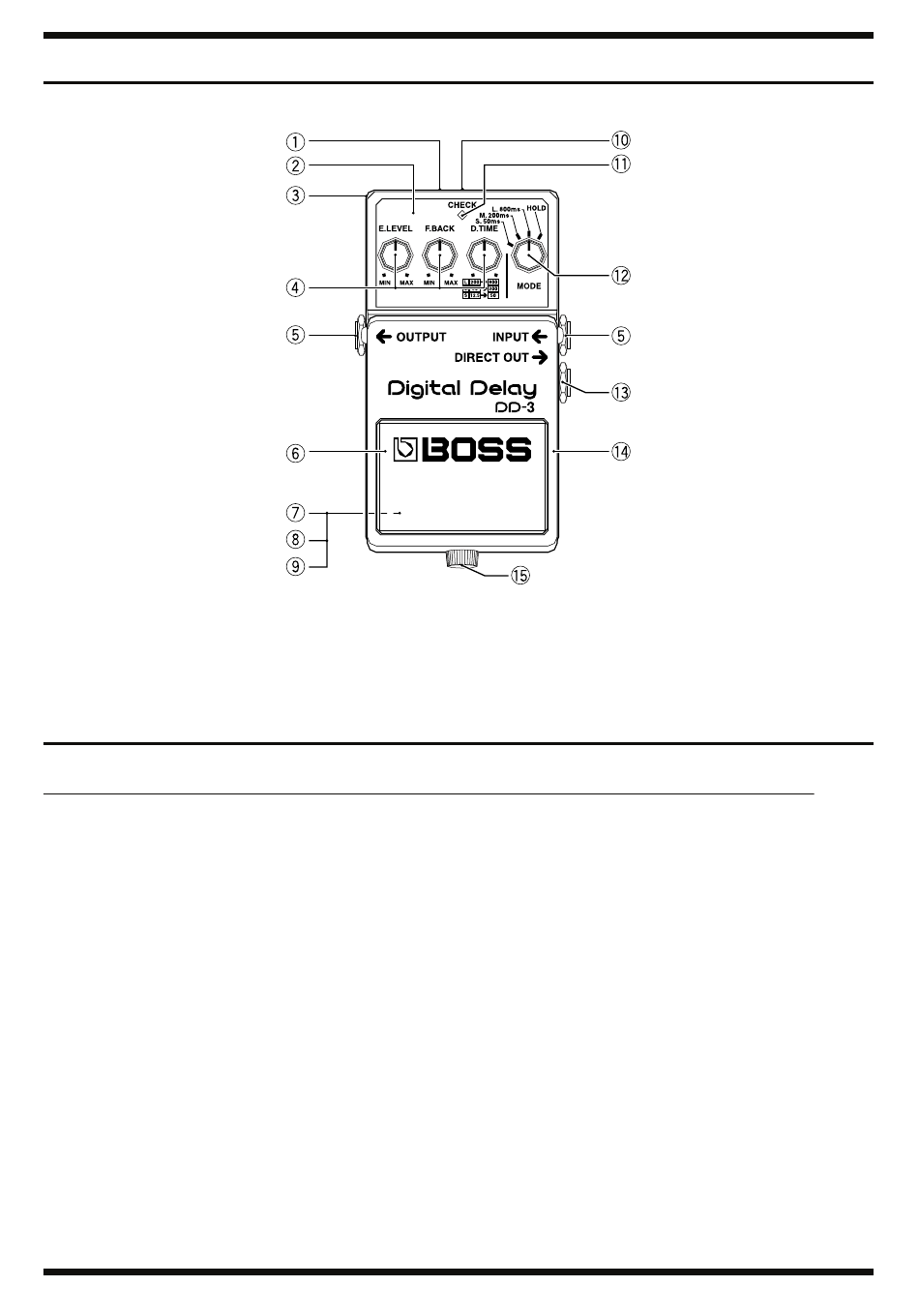

Location of Controls

fig.panel.eps

Location of Controls Parts List

No. Part Code Part Name
1 5100014487 COMPACT PSA LABEL
2 22217404R0 PANEL
3 75D563C0R0 CASE (PEARL WHITE)
4 5100008175 R-KNOB
F3279852R0 POTENTIOMETER
5 01903234 6.5MM JACK
5100003926 PLAIN WASHER 9X13.5X0.5T
5100008086 INT TOOTH WASHER 9.5X12.5X0.5
5100003918 JACK NUT M9X12X2
6 5100008294 PEDAL PLATE
7 5100006632 BOTTOM COVER
8 5100006633 BOTTOM FOOT
9 5100006631 CAUTION SEAL
10 04908712 DC JACK
11 15029281 LED (RED)
12 5100008175 R-KNOB
5100014193 R.POTENTIOMETER (F3279853R0)
13 5100006457 6.5MM JACK
5100003926 PLAIN WASHER 9X13.5X0.5T
5100008086 INT TOOTH WASHER 9.5X12.5X0.5
5100003918 JACK NUT M9X12X2
14 75D562T0R0 PEDAL
15 5100007512 THUMB SCREW
4
Description
(22537538R0)
F BLU/BLK (G2477530R0)
RD901-20-15FW-B54-006
HTJ-064-13D
NI(H5039158R0)
NI RTC(H5039205R0)
NI RTC(H5039510R0)
(22357304R0)
(22027851R0)
(22357305R0)
PSA (FCC/EMI)(G2537516R2)
KM02020ABM2P (F3439892R0)
GL-3PR8
F BLU/BLK (G2477530R0)
RD901F-20-15FB-B50K-04
HTJ-064-14D(13449140R0)
NI(H5039158R0)
NI RTC(H5039205R0)
NI RTC(H5039510R0)
(H5029820R0)
DD-3(T)
Q'ty
1
1
1
3
3
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
