Roland DigitalDelay DD-3 Service Notes page 8

Jun. 2010

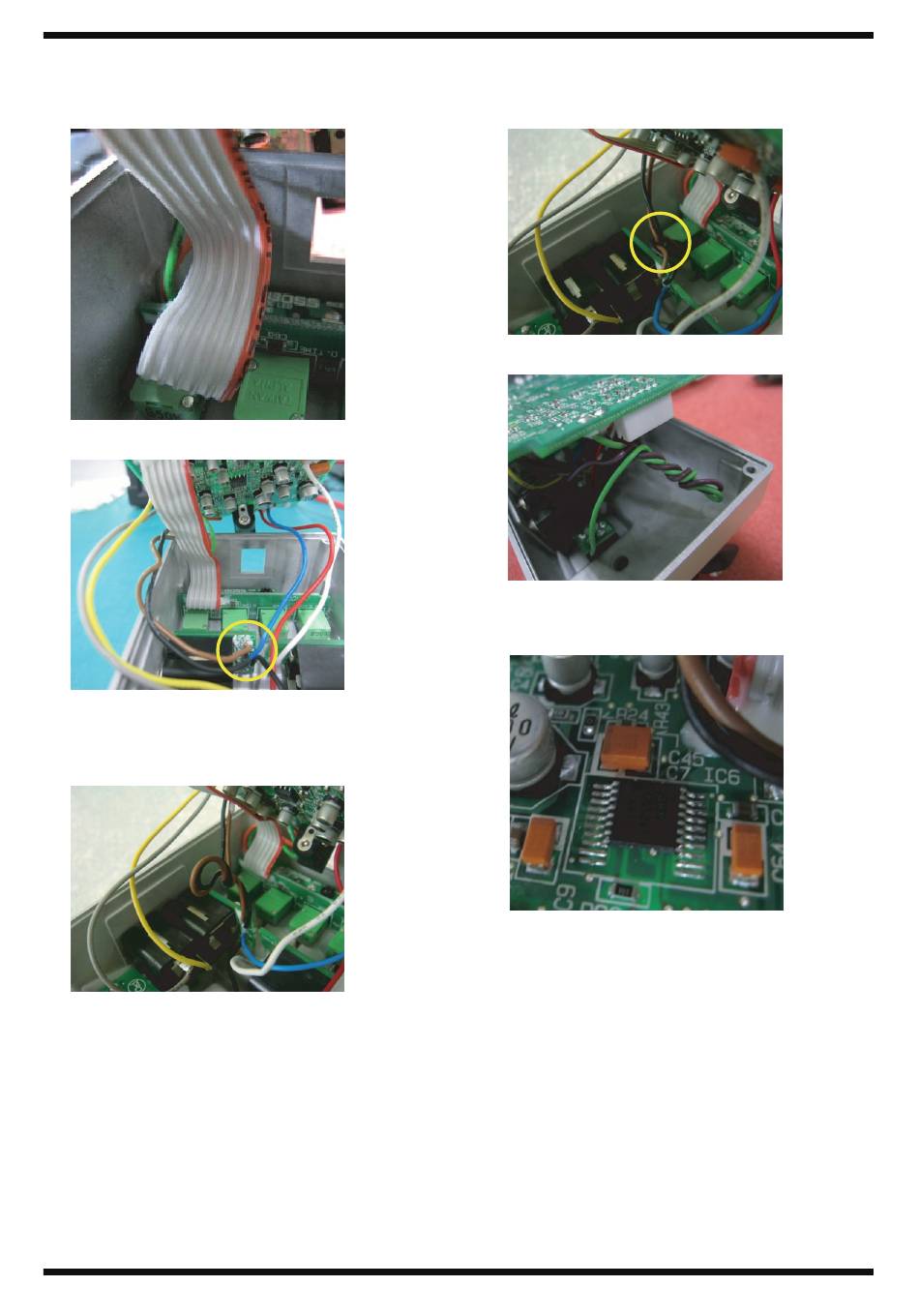

Disposition of Wiring
1.
Insert the green and orange wires behind the ribbon cable (between the
VR Board and the Case).
fig.assemble-6.eps
2.
Arrange the wiring as shown in the figure.
fig.assemble-7.eps
* Ensure that the Input-Board wires (brown and black) do not become tangled.
Arrangement as shown in the figure above is OK.
3.
Twist the Input-Board wires (brown and black).
fig.assemble-8.eps
8
4.
Insert the Input-Board wires (brown and black) between the
potentiometer and the Input Board.
fig.assemble-9.eps
5.
Twist any excess length of the wires as shown in the figure.
fig.assemble-10.eps
* Noise may occur if the Input-Board wires (brown and black) are too close to the
area around IC6.
fig.assemble-11.eps
DD-3(T)
