Summary of Contents for TMG TMG-LGZ21

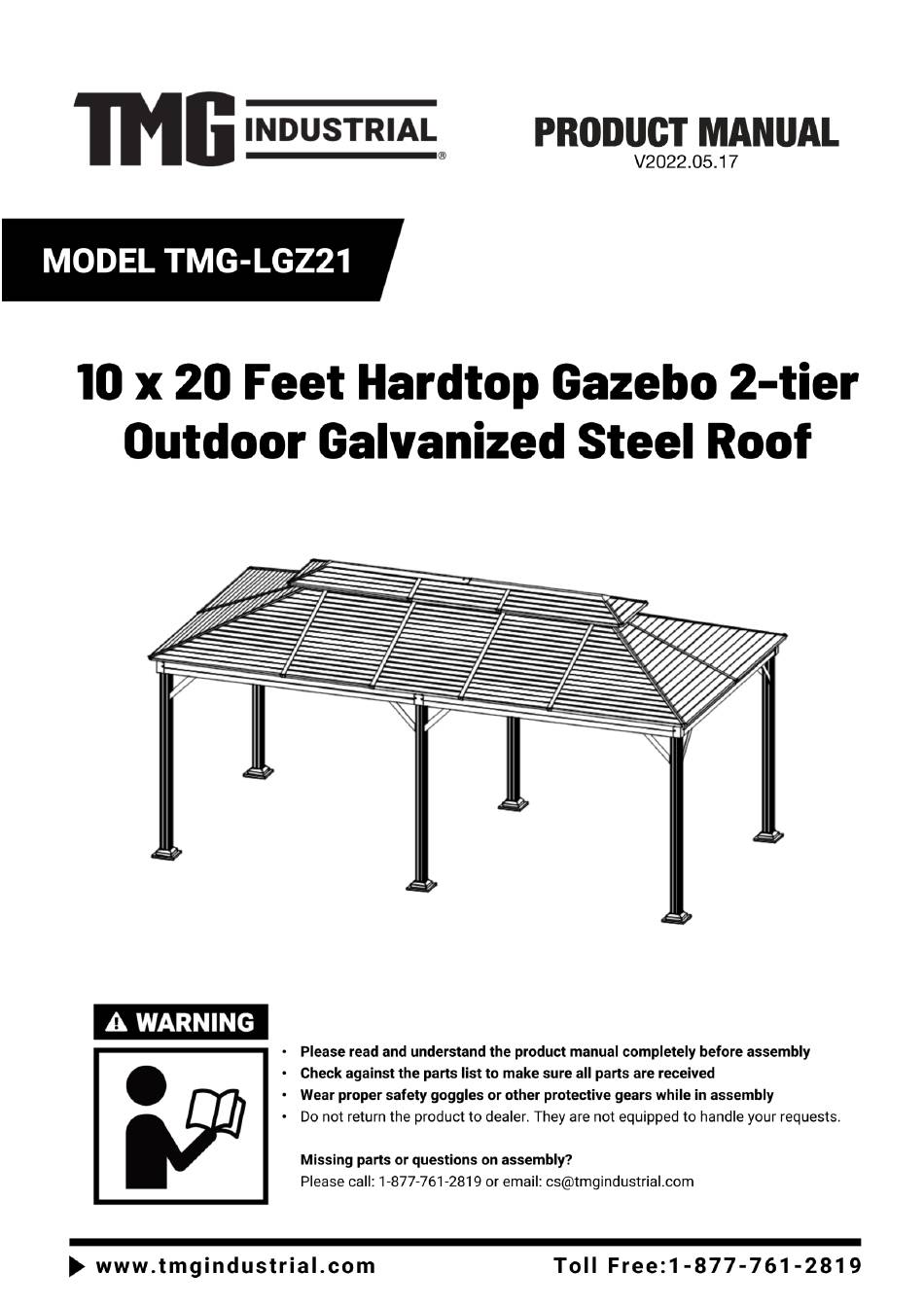

- Page 1 ► www.tmgindustrial.com P0 / 18 Toll Free: 1-877-761-2819...
- Page 2 Main Specifications: 6.0x H3.15 (m) / 10ft x 19.68ft x 10.3ft Inside size: W2.64x L5.84x H3.10 (m) urtain/Net: W4.45 x H2.1 (m) urtain: 180G polyester Prior to assembly: Please go through the whole instruction manual completely. It is very important to follow your local safety regulations and industry standards during installation.
- Page 3 TMG-LGZ21 Part List Parts Graphical Description Length code Post 100x100mm Middle post 100x100mm Cross beam 28x140mm Left cross beam 28x140mm Right cross beam 28x140mm Left support 1.2x60mm Right support 1.2x60mm Steel corner 20x20mm Post cover 100x140mm Middle post cover 100x100mm...
- Page 4 30*300m Left big top 30x300m Right big top 1.2*200m Top cover Left small top 15x60mm Right small top 15x60mm Short support 25x25mm Long support 25x25mm Connection for support Connection for support Middle edge strip 25x28mm Left edge strip 25x28mm Right edge strip 25x28mm Edge strip for small top 25x28mm...
- Page 5 Middle galvanized sheet (down) Large galvanized sheet (Left) Large galvanized sheet (Right) Small galvanized sheet (Left) Small galvanized sheet (Right) Small top galvanized sheet Small top galvanized sheet (Left) Small top galvanized sheet (Right) Small top galvanized sheet (Middle) Middle cross beam Curtain ►...
- Page 6 M6x16 Post cover screw M6x45 Hook M4x10 M4x4 gasket ► www.tmgindustrial.com P5 / 18 Toll Free: 1-877-761-2819...
- Page 7 Step 1: Install Post A/A1 Install decorative cover R on all post A/A1, use screw a to fix steel corner E on the post and tighten the screw. Parts Parts Graphical Graphical code code ► www.tmgindustrial.com P6 / 18 Toll Free: 1-877-761-2819...
- Page 8 Step 2: Install Cross Beam B/C1/C2/W Take out the cross beam B /C1 /C2 /W and post cover F Connect the cross beam B /left C1 /right C2 and post cover F to Post A/A1 with screws b . Connect Middle beam W and post cover F1 to Post A1 with screws b .
- Page 9 Step 3: Install Left support D1 & right support D2 Take out the D1 and D2 , Connect Left & Right support D1&D2 to the cross beams B/C1/C2 and post A /A1with screws a. Parts code Graphical ► www.tmgindustrial.com P8 / 18 Toll Free: 1-877-761-2819...
- Page 10 Step 4: Install Big top / Small top / Top cover / short beam Install Big top : Take out Left K1 and Right K2,Connect them with screw b and nut Install small top: Take out Left L1 and Right L2,Connect them with screw a ...
- Page 11 Step 5: Install long beam G1 and short beam H1, Big top K1/K2 Take out G1 , Connect the long beam G1 to Post cover F , K1 and K2 respectively with screws a Take out the installed H1 of Step 4 , Connect H1 and K1/K2 with screw a, Connect H2 and beam B, C1,C2 with screws a Parts code Graphical...
- Page 12 Step 6: Install support M1 and M2 on the top Take out M1, M2, N1 and N2, Connect N1& G1 , N2& H1 with screw a Then connect M1and M2, N1/N2 with screw a Parts code Graphical Parts code Graphical Qty ►...
- Page 13 Step 7: Install the small top Take out Small top beam I1 and connections I2, connect I1 and I2 with screw a,then connect L1/L2. Take out middle beam J1 and connections J2, connect J1 and J2 with screw a,then connect L1 and L2 .
- Page 14 Step 8: Install top Cover L Take out the installed top cover L of Step 4, Connect L and L1 / L2 with hook d. Parts code Graphical ► www.tmgindustrial.com P13 / 18 Toll Free: 1-877-761-2819...
- Page 15 Step 9: Install the galvanized sheet of small top Take out small top galvanized sheet U,U1/U2 /V , Insert them as shown the diagram, and fix the edge strip P/P1/P2, Angle cover Q1 and flat cover Q2 on the sheet with screw a Parts Parts...
- Page 16 Step 10: Connect the galvanized sheet S1&T1 , S2&T2, R1&R2 Connect Left side S1 and T1 with screw f, gasket h and nut g Connect Right side S2 and T2 with screw f, gasket h and nut g ...
- Page 17 Step 11: Install 4 corners of the galvanized sheet top Take out the Installed galvanized sheet S1and S2 of Step 10 As shown the diagram,Insert the galvanized sheets S1&S2 into 4 corners of the top , and fix the edge strip O1(left )& O2(right ), Angle cover Q1 and flat cover Q2 on the sheet with screw a Parts Parts...
- Page 18 Step 12: the galvanized sheet top R2 Take out the installed galvanized sheet R2 of Step 10 As shown the diagram ,Insert the galvanized sheets R2 into the middle position , and fix the edge strip O and flat cover Q2 on the sheet with screw a Parts Parts Graphical...
- Page 19 Step 13: Install CurtainX1 and Net X2 Hang the curtain X1 and the net X2 above on the hook of beam B. (Note: Inside net / outside curtain) Parts code Graphical ► www.tmgindustrial.com P18 / 18 Toll Free: 1-877-761-2819...
