Saddle Installation - Seametrics AG90 Series Manual

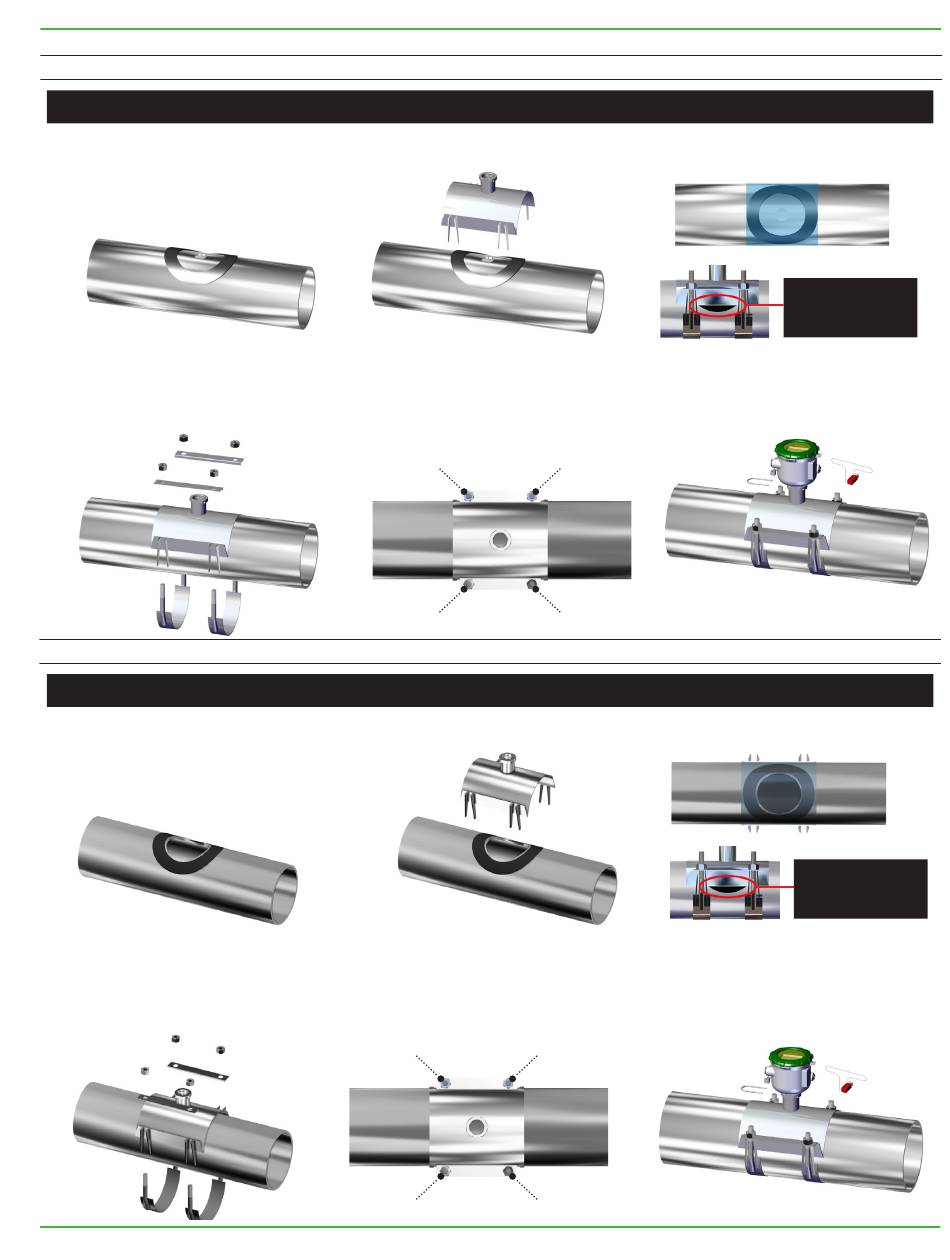

New Installation
BE FO RE IN STAL L IN G me as u re & re cord in si de dia meter ( ID) of pi pe.
1. Clean the mounting surface, remove
any roughness from the area and cut a
1.75" hole into pipe. Place gasket centered
over pipe opening.
4. Place the saddle clamps under the
pipe and align with the clamp guides
on the saddle top.
Propeller Replacement Installation
BE FO RE IN STAL L IN G me as u re & re cord in si de dia meter ( ID) of pi pe.
1. Clean the mounting surface, remov-
ing any roughness which would prevent
the gasket from sealing. Place gasket
centered over pipe opening.
4. Place the saddle clamps under the
pipe and align with the clamp guides
on the saddle top.
Seametrics • 253.872.0284
2. Place saddle top over gasket.
5. Place saddle plates over saddle
clamp threads. Attach nuts and
tighten as shown below. Torque to 75
ft-lb in cross pattern.
4
th
2
nd
2. Place saddle top over gasket.
Place saddle plates over saddle
5.
clamp threads. Attach nuts and
tighten as shown below. Torque to
75 ft-lb in cross pattern.
4
th
2
nd
Page 7
AG90 - SERIES INSTRUCTIONS
3. Make sure saddle top covers entire gasket.
6. Insert the AG90 sensor into the saddle
fitting and secure with mounting clip or
attach security clip and seals if required.
1
st
3
rd
3. Make sure saddle top covers entire gasket.
6. Insert the AG90 sensor into the saddle
fitting and secure with mounting clip or
attach security clip and seals if required.
1
st
3
rd
NOTE: Gasket will extend
outside of a 4" pipe
saddle's sides.
NOTE: Gasket will extend
outside of a 4" pipe
saddle's sides.
