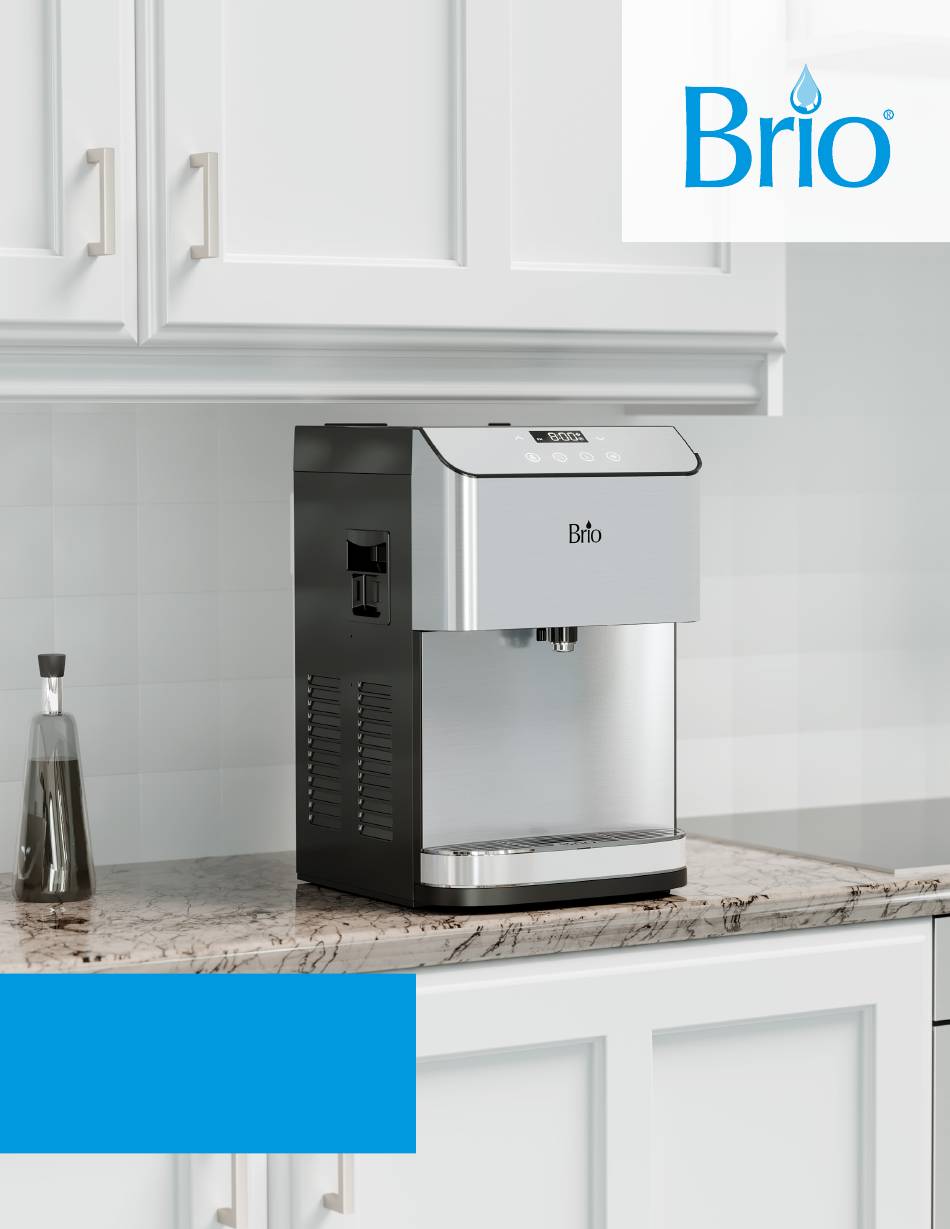

- Page 1 Countertop Water Dispenser Setup Manual Model No.: CLCTPOU720UVF3...
-
Page 2: Table Of Contents
Table of Contents Safety Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Intended Use �... -
Page 3: Safety Information
Safety Information WARNING: To reduce risk of injury and property damage, you must read this entire guide before assembling, installing and operating the dispenser. WARNING: This product dispenses water at very high temperatures. Failure to use properly can cause personal injury. When operating this dispenser, always exercise basic safety precautions, including the following: Prior to use, this dispenser must be properly assembled and installed in accordance with this •... -
Page 4: Intended Use
Intended Use This dispenser is intended to be used in household and similar applications such as: • Staff kitchen areas, offices and other working environments • Farm houses • Hotels, motels and other residential-type environments • Bed-and-breakfast environments • Catering and similar non-retail applications This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: Touch Panel Description
Touch Panel Description No� Description Up arrow button LED display Change filter icon Self-cleaning UV icon Down arrow button Lock button Hot water button Ambient water button Cold water button Product Dimensions Height Width Depth 19.3 in. (49 cm) 12.5 in. (31.7 cm) 18.5 in. -
Page 6: Package Contents
Package Contents Part Description Quantity Part Description Quantity Filter connecting tube Mounting bracket Shut off valve tube (7 ft.) Locking clip Elbow joint tube Grounding bracket Filter flushing tube (4 ft.) Plumber’s tape Pressure-reducing Feedwater adapter (with extra nut) valve Filter housing Tubing cutter Filter (sediment, pre carbon, carbon block) -
Page 7: Installation
Installation 1� Determine Installation Location A� Place the dispenser upright. B� Locate the dispenser on a hard and level surface in a cool shaded location near a grounded wall outlet and easily accessible to cold water line. NOTICE: Do NOT plug in the power cord until the entire installation section is completed. -
Page 8: Install The Filters And Tubing
3� Install the Filters and Tubing A� Click the three black mounting brackets (H) onto the top of the condenser. B� Attach one filter housing (F) to the top of a mounting bracket (H). C� Connect the filter connecting tube (A) to the filter housing (F). - Page 9 D� Slide the next filter housing (F) onto the middle mounting bracket (H) and connect the other end of the filter connecting tube (A). E� Repeat for the third filter housing. F� Connect the shut off valve with tube (B) to the left filter housing (F).
-
Page 10: Connect To The Cold Water Supply
4� Connect to the Cold Water Supply CAUTION: DO NOT CONNECT THIS WATER LINE TO A HOT WATER SUPPLY LINE. The water supply to the unit MUST be from the COLD WATER LINE. Using HOT WATER will severely damage your filters. A�... -
Page 11: Flush The Filters And Complete The Installation
5� Flush the Filters and Complete the Installation IMPORTANT: Follow this procedure every time you replace your filters. IMPORTANT: Ensure the water supply is off before you begin. A� Connect the red filter flushing tube (D) to the right filter housing (F). B�... -
Page 12: Operation
Operation IMPORTANT: This unit has been tested and sanitized prior to packing and shipping. During transit, dust and odors can accumulate in the tank and lines. Dispense and dispose at least one quart of water prior to drinking any water. Turn the Dispenser On/Off IMPORTANT: Before you activate the heating and cooling switches, ensure water has filled the tanks inside... -
Page 13: Dispense Cold And Room Temperature Water
NOTE: Cold water temperature is measured inside cold reservoir tank. Due to many variables, including but not limited to, ambient temperature, water receptacle size/temperature, internal travel from reservoir tank to dispense point, etc., temperature range of water dispensed will vary from stated range. Set the Hot Water Temperature Level You can select from 3 different hot water dispensing temperature levels: H1 (hot), H2 (hotter), and H3 (hottest). -
Page 14: Troubleshooting
Troubleshooting Problem Solution • It takes up to one hour after setup to dispense cold water. • Make sure the power cord is properly connected to a working outlet. • Make sure the back of the dispenser is at least 8 in. (20 cm) from a wall The cold water is not cold. -
Page 15: Filter Replacement Schedule
Filter Replacement Schedule Filter Type Model No� Replacement Schedule Function Performs coarse filtration of inlet water, Sediment NFMPP5M 6 months or 950 gallons removing sand, rust, dirt, and other suspended solids. Removes chlorine, and other unpleasant Pre Carbon NFMGAC 6 months or 950 gallons tastes and odors. -
Page 16: Care And Maintenance
Care and Maintenance • Keep this dispenser in a dry and cool place and avoid direct sunshine. • Ensure the back of the dispenser is at least 8 in. (20 cm) away from the wall. • Never put the dispenser on paper or foam, which may store water and then cause creepage. Never put anything flammable beside this machine. -
Page 17: Warranty
Warranty Brio (“Vendor”) warrants to the original purchaser of the Brio Water Coolers (the “Product”), and to no other person, that if the Product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in the Product shall be free from defects in material and workmanship. - Page 18 Contact Us Call: +1 844-257-4103 ©2023 Brio Water Technology, Inc.
