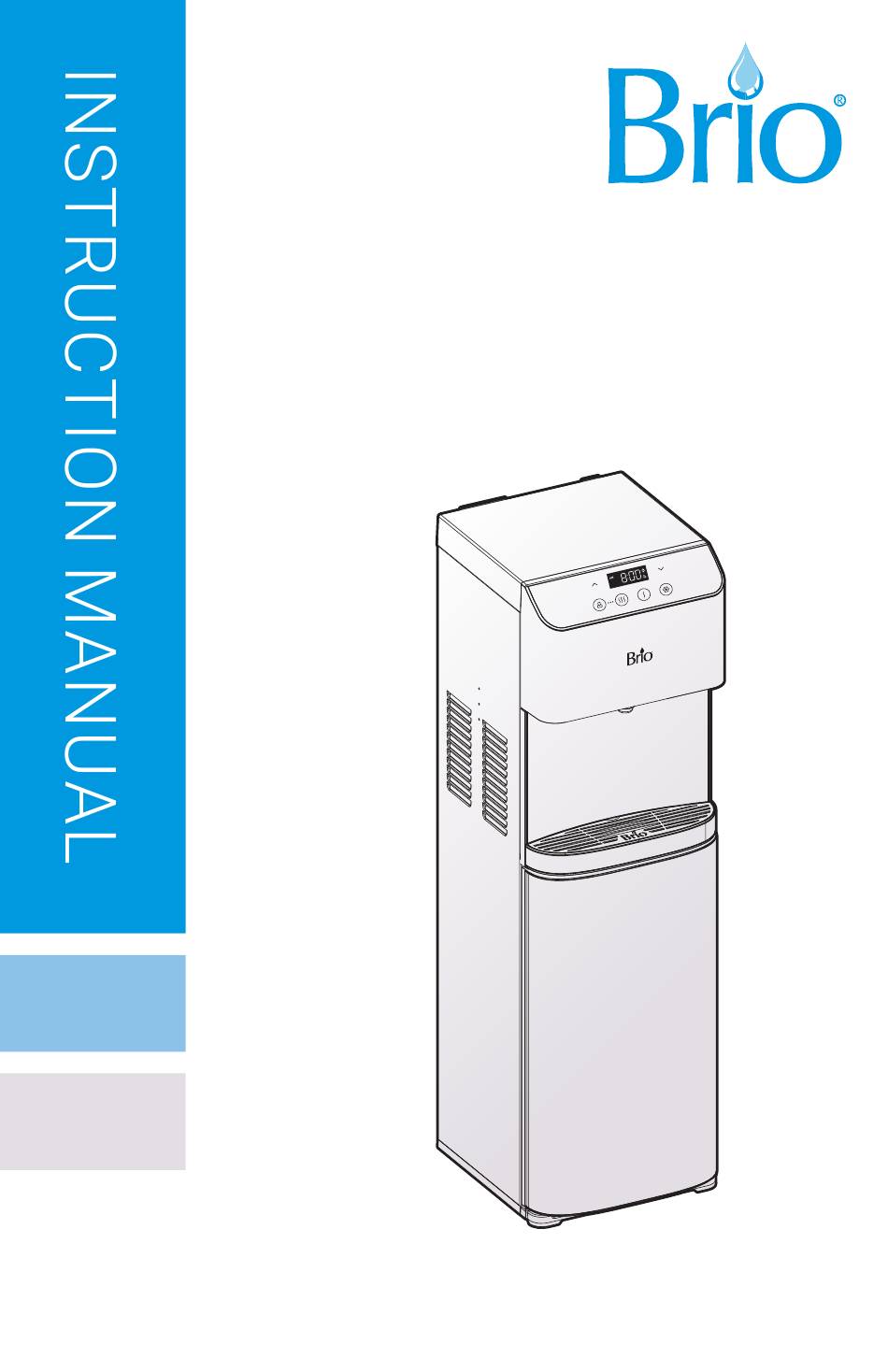

- Page 1 WATER DISPENSER MODEL NO. CLBL720SC Thank you for purchasing a Brio water cooler ® Please read and understand this manual before operating your water dispenser Retain this manual for future use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION .........3 INTENDED USE . -
Page 3: Safety Information
SAFETY INFORMATION WARNING: To reduce risk of injury and property damage, you must read this entire guide before assembling, installing and operating the dispenser. WARNING: This product dispenses water at very high temperatures. Failure to use properly can cause personal injury. When operating this dispenser, always exercise basic safety precautions, including the following: •... -
Page 4: Intended Use
INTENDED USE This dispenser is intended to be used in household and similar applications such as: • • Farm houses • Clients in hotels, motels and other residential type environments • Bed and breakfast type environments • Catering and similar non-retail applications This dispenser is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: Touch Panel Description
Touch Panel Description Up arrow button – Press to set the time on the clock and increase temperature settings. Clock/Temperature display – Shows the time and water temperature setting when setting the temperature of the hot or cold water. Also indicates when a water bottle needs to be replaced and when the dispenser is in self-cleaning mode. -
Page 6: Installation
INSTALLATION 1. Determine Installation Location Place the dispenser upright. Locate the dispenser on a hard and level surface in a cool shaded location near a grounded wall outlet. NOTICE: Do NOT plug in the power cord until the entire installation section is completed. Position the back of the dispenser no closer than 20 cm wall and water dispenser. -
Page 7: Operation
Slide the water bottle into the dispenser cabinet and close the door. with water before attempting to use the dispenser. Remove air from the tanks by placing a cup under each water tap and drain at least 4 cups (1 liter) of water before initial use. -
Page 8: Set The Cold Temperature Setting
Set the Cold Temperature Setting Press and hold the down arrow button for 3 seconds until the cold water button starts to blink and the current cold water temperature appears on the display. Use the up and down arrow buttons to scroll to your desired cold water temperature. The range Set the Hot Temperature Setting Press and hold the up arrow button for 3 seconds until the hot water button starts to blink and the current hot water temperature appears on the display. -
Page 9: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION • It takes up to one hour after setup to dispense cold water. • Make sure the power cord is properly connected to a working outlet. The cold water is not • Make sure the back of the dispenser is at least 20 cm from a wall cold. -
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE Use the Self-Cleaning Ozone Feature It is highly recommended that you use the self-cleaning feature on a weekly basis to sanitize tanks and water lines. To activate the self-cleaning cycle, press in the self-cleaning switch (8), hold for 5 seconds, and release. -
Page 11: Warranty
WARRANTY Brio (“Vendor”) warrants to the original purchaser of the Brio Water Coolers (the “Product”), and to no other person, that if the Product is assembled and operated in accordance with the printed instructions accompanying it, then for a period of one (1) year from the date of purchase, all parts in the Product shall be free from defects in material and workmanship. - Page 12 Contact Us Call: +1 844-257-4103 ©2019 DTWUSA...
