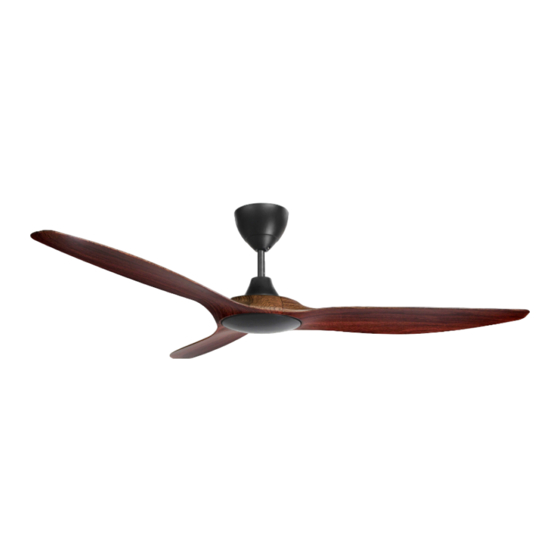

- Page 1 Rub tne REDEFINE THE WAY OF LIFE 江 RCF-DRAC054 SERIES USER MANUAL/ PANDUAN PENGGUNA /用户手册 MODEL / MODEL /型号 RCF-DRAC054-3B...
- Page 2 CEILING FAN/ KIPAS SILING / 吊 扇 SUPPLIED PARTS/ SAHAGIAN YANG DIBEKALKAN /提供零件 PARTS QUANTITY PARTS QUANTITY KUANTITI KUANTITI BAHAGIAN BAHAGIAN 数量 零件 数量 零件 TOP CANOPY/ SENGKUAP ATAS /吊忠 X1set BALANCING KIT/ SET PENGIMBANGAN /平衡包 HANGING TUBE CNJ RUBBER WHEEL/ BLADE SCREWS/ SKRU BILAH /扇叶螺丝...
- Page 3 WARNING TO ENSURE YOUR PERSONAL SAFETY, PLEASE READ THROUGH THE INSTRUCTION MANUAL BEFORE OPERATING THE PRODUCT. 1) Do not bend the blade during installation, blades balancing or f a n cleaning. 2) To prevent accidents, power switch must be OFF and electrical wiring must be disconnected before ceiling fan installation, dismantling, maintenance or cleaning.
-
Page 4: Safety Guidelines
SAFETY GUIDELINES 1) Please do not install the ceiling fan at high humidity areas. 2) Distance between fan blades and ground must be at least 2.5 meter and above. 3) Do not touch the ceiling fan while it is operating. 4) For safety purposes, all electrical connections must conform to the national electrical safety codes and earth wire must be installed correctly (suitable for power supply of 220-240VAC / 50Hz). - Page 5 INSTALLATION PROCEDURES/ TATACARA PEMASANGAN /安装步骤 STEP 1 (Refer diagram 1) LANGKAH (Rujuk gambar 步骤 1 (图 1 ) 1) Before installation, remove the rubber wheel and plastic plug from both side of the hanging tube. 1)Sebelum pemasangan, keluarkan roda getah, plug plastic dan semua skru /bolt dari kedua-dua belah rod besi. 1)在安装之前，...
- Page 6 STEP 2 (Refer diagram 4) LANGKAH 2 (Rujuk gambar 4) Connect wiring by plug in connector into position. Sambungkan pendawaian dengan penyambung pasangkan ke kedudukanya. 步骤2 (参见图4) 通过插入连接器将电线连接到位。 Safety Cabel Dawai keselamatan 安全钢丝绳 1 Pin Connector / Pin sambungan 1位连接器 Incoming Wire L Kabel masuk L...
- Page 7 STEP (Installation the bottom cover) （as shown in Diagram 6） LANG AH 4 (Pemasangan Tutup bawah) (seperti ditunjukkan dalam Gambar 6) 步骤4 (安装无灯盖） (参见图6) Align the inner teeth at the center of the bottom cover to the motor spindle, and rotate the bottom cover until it is tightened. Jajarkan gigi dalaman di tengah penutup bawah dengan pusingan motor, dan putar penutup bawah sehingga ia ketat.
- Page 8 RF TRANSMITTER/ PEMANCAR RF/射频发射器 Function of Transmitter I Fungsi Pemancar I发射器功能 。 LED Indicator Light / Lampu penunjuk LED/ LED指示灯 switch fan direction from forward reverse and vice versa. / M enukar 氐 心 arah arah putaran kips siling. /吏改吊局的旅转方向 Increase the speed from speed 1 to speed , ，...
- Page 9 Note - In the event of Transmitter (Remote Control) / Receiver cannot be control, please follow the "Remote Control Pairing Procedure" as below : 1. Insert 2 units of AAA battery into the remote control. 2. Switch on the ceiling fan (Power Supply ). 3.
- Page 10 IMPORTANT/ PERKARA PENTING /重要事项 DO NOT CONNECT THIS CEILING FAN REMOTE CONTROL TO DIMMER SWITCH OR WALL REGULATOR. 又又 JANGAN SAMBUNGKAN KAWALAN JAUH KIPAS SILING INI KEPADA SUIS DIMMER ATAU PENGAWAL DINDING. 请勿将此吊扇遥控连接至调光器开关或者墙壁调节器。 Ceiling fan must be hooked on concrete ceiling. Do not install the ceiling fan on plaster ceiling or any types of gypsum board ceilings, and all parts must be locked.
-
Page 11: Our Warranty
3 您将会通过电子邮件获取质保确认。 to proceed. You're required to Registration'. Anda dikehendaki 4. 请务必 保存您 的 在线保加凭证 sign up as a member. mendaftar sebagai ahli Rubine. 以供参考／未来保修需要。 3. You'll receive a notification of 3. Anda akan menerima e-mel sijil warranty registration confirma...
