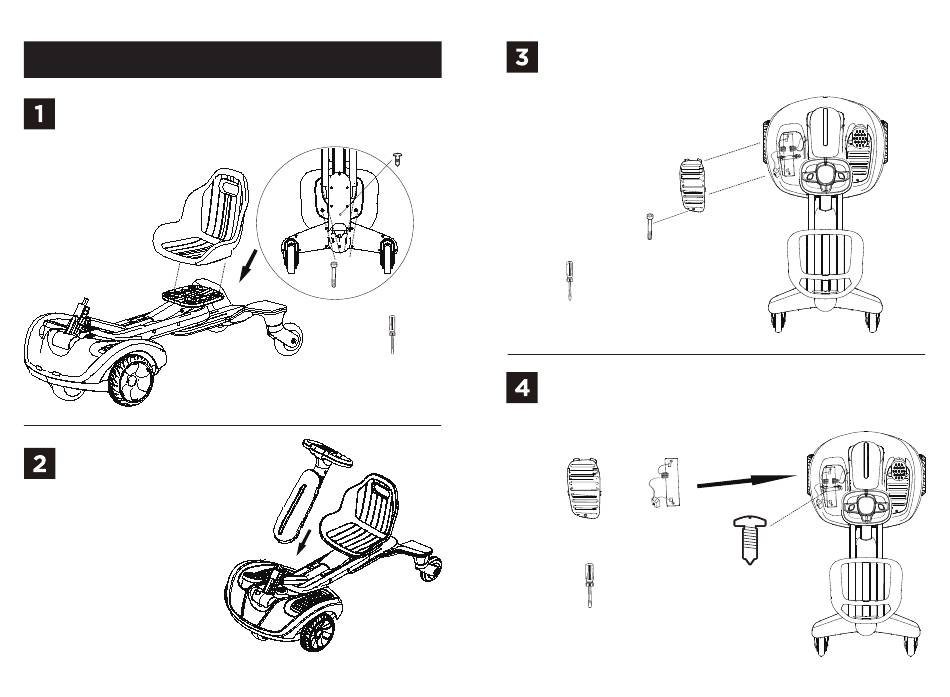

PRODUCT ASSEMBLY

Press the seat into the corresponding position of the body, then
insert the screw rod from the back into the body as shown, and then
use a screwdriver to insert it.
Insert the handlebar component
onto the body connector as
shown in the diagram. Align the
handlebar component with the
body connector, and then press
it down with force. Hearing a
"click" sound indicates that the
installation is in place(The front
wheel and steering wheel must
be aligned forward)
06
Screw
x4
M6*10
Bolt driver
Use a cross screwdriver to unscrew the battery cover and remove
the battery cover, then connect the connector on the battery with the
connector on the body, and finally install the battery cover and fix it
with a screwdriver.
Battery cover
M4*10
Bolt driver
Use a cross screwdriver to unscrew the battery cover and pull out
the battery connector, then unscrew the screw on the pressure bar
that fixes the battery, then take out the battery and replace it, and
finally install the battery pressure bar and insert the connector and
battery cover.
Battery
Battery cover
Bolt driver
x2
Screw
07
