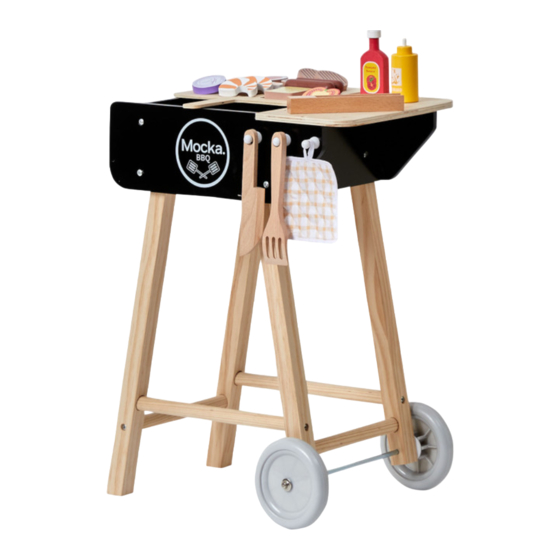

Kids Modern BBQ

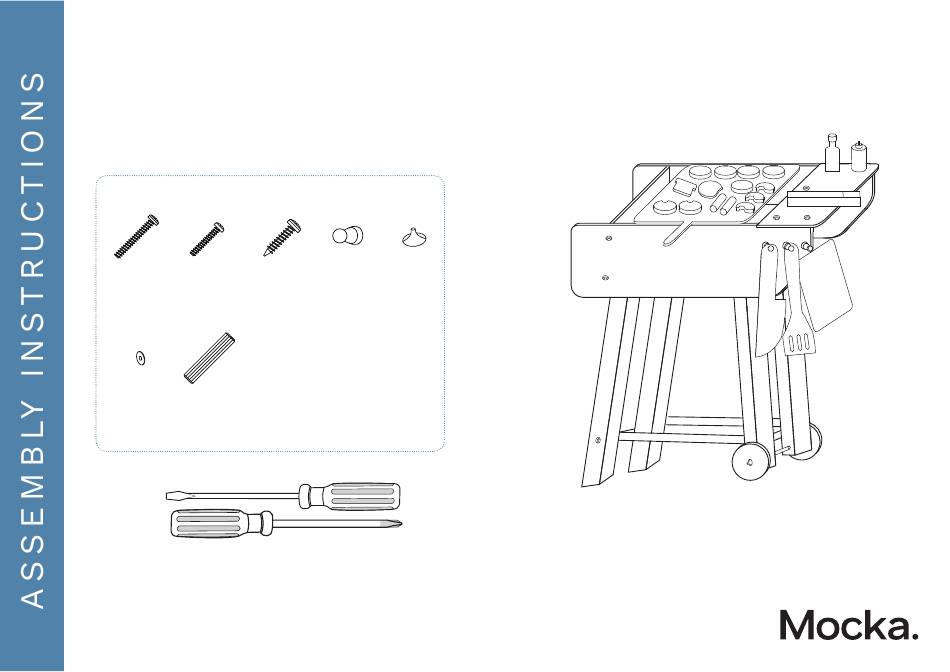

Thank you for purchasing Kids Modern BBQ. Please follow the
manufacturer's assembly instructions in detail.
A
B
x8
x18
x3
long bolts
short bolts
screws
F
G
x2
x4
washers
dowels
HARDWARE SUPPLIED
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz I mocka.com.au I
C
D
E
x3
x2
knobs
covers
Not suitable for children under 2 years of age.
WARNING:
Small parts are used to assemble the Mocka BBQ and should only be
assembled by an adult. Keep all assembly parts away from children.
