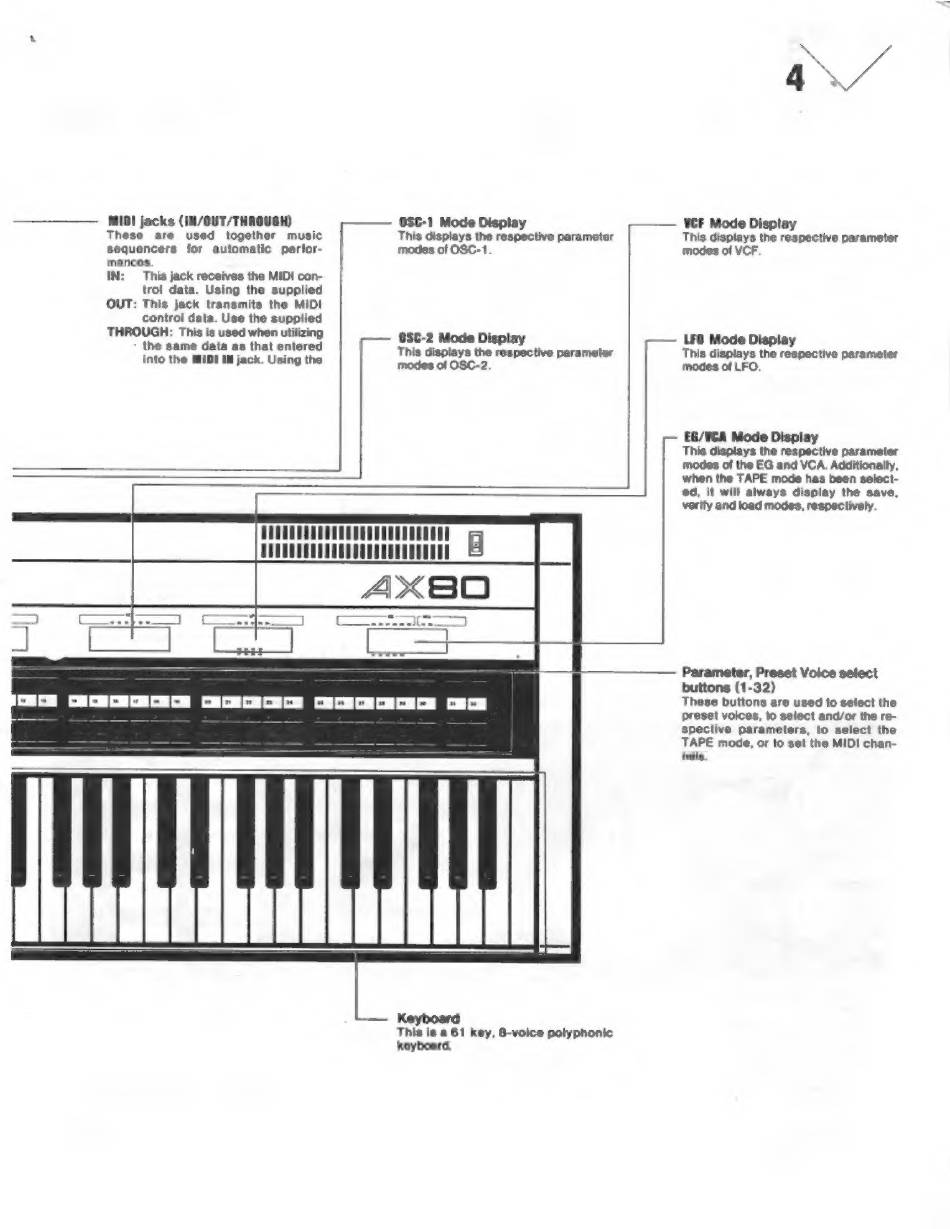

Akai AX80 Operator's Manual page 5

d
These are used together music This displays the respective parameter This displays the respective parameter
sequencers for automatic perfor- modes of OSC-1. modes of VCF.
mances.
IN: This jack receives the MIDI con-
trol data. Using the supplied
OUT: This jack transmits the MIDI
control data. Use the supplied
This displays the respective parameter
modes of the EG and VCA. Additionally,
when the TAPE mode has been select-
ed, it will always display the save,
verify and load modes, respectively.
Parameter, Preset Voice select
buttons (1-32)
These buttons are used to select the
preset voices, to select and/or the re-
spective parameters, to select the
TAPE mode, or to set the MIDI chan-
nels.
Keyboard
This is a 61 key, 8-voice polyphonic
keyboard.
