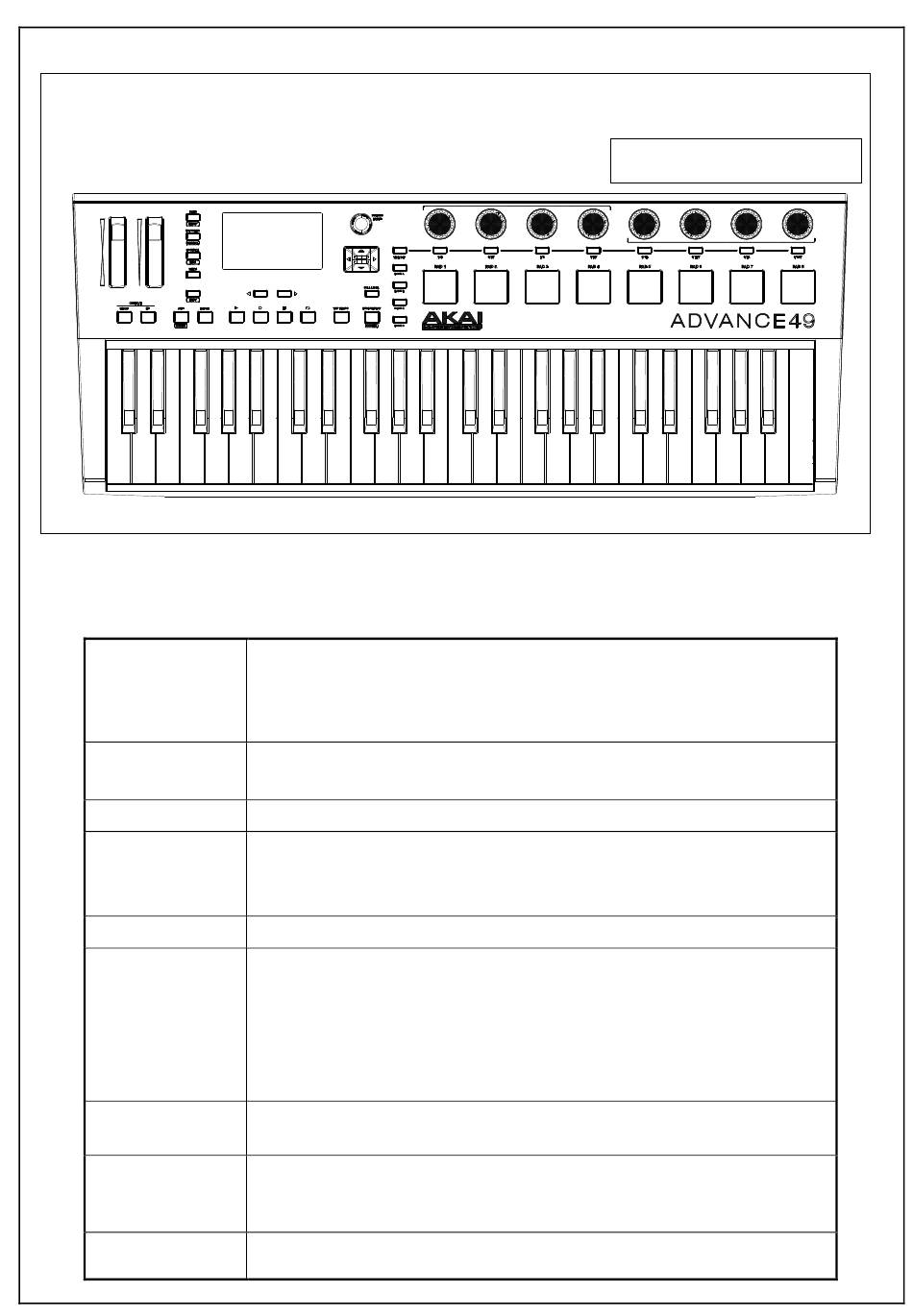

SERVICE MANUAL
49 velocity- and pressure-sensitive keys
10-octave range with Octave Down/Up buttons
Keyboard
Pitch-bend wheel
Modulation wheel
8 360° assignable encoders
Encoders
1 360° encoder with push function for display navigation
8 velocity- and pressure-sensitive pads; multicolor-backlit
Pads
8 assignable switches; amber-backlit
Switches
23 function switches; amber-backlit
4 directional cursor buttons
3.75" x 2.125" (95.3 mm x 54 mm) full-color LCD
Display
1 1/4" (6.35 mm) TRS expression pedal input
1 1/4" (6.35 mm) TS sustain pedal input
1 5-pin MIDI input
Connections
1 5-pin MIDI output
1 USB port
1 power adapter input
Power
6 V DC, 1 A, center-positive
29.5" x 11.5" x 3.63"
Dimensions
74.9 cm x 29.2 cm x 9.2 cm
(width x depth x height)
10.2 lbs.
Weight
4.6 kg
SPECIFICATIONS
MODEL:ADVANCE49
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Akai ADVANCE49
Summary of Contents for Akai ADVANCE49
- Page 1 SERVICE MANUAL MODEL:ADVANCE49 SPECIFICATIONS 49 velocity- and pressure-sensitive keys 10-octave range with Octave Down/Up buttons Keyboard Pitch-bend wheel Modulation wheel 8 360° assignable encoders Encoders 1 360° encoder with push function for display navigation 8 velocity- and pressure-sensitive pads; multicolor-backlit Pads 8 assignable switches;...
- Page 2 T e c h n i c a l S p e c i f i c a t i o n T e c h n i c a l S p e c i f i c a t i o n T e c h n i c a l S p e c i f i c a t i o n T e c h n i c a l S p e c i f i c a t i o n (A) REMOVE 15 SCREWS FROM BOTTOM PANEL.
- Page 3 (A) REMOVE 9 KNOBS. (B) REMOVE 8 NUTS AND 8 WASHERS. (C) REMOVE THE COPPER TAP FROM THE TOP RIGHT PCB ASS’Y. (D) REMOVE 8 SCREWS FROM THE TOP RIGHT PCB ASS’Y. (A) REMOVE 4 SCREWS FROM THE MAIN PCB ASS’Y (B) REMOVE THE METAL COVER FROM THE MAIN PCB ASS’Y (C) REMOVE 2 CABLES FROM THE TFT AND TOP LEFT PCB ASS’Y.
- Page 4 (A) REMOVE 2 CABLES FROM THE TOP LEFT PCB ASS’Y. (B) REMOVE 12 SCREWS FROM THE TOP LEFT PCB ASS’Y. (F i g.5) 6.DISASSEMBLE TH E PITCH / MOD LED PCB ASS’ Y . (F i g.6) (A) REMOVE 3 SCREWS FROM THE PITCH/MOD PCB ASS’Y. (A) REMOVE 4 SCREWS FROM THE P/M WHEEL ASS’Y.
-
Page 5: Wiring Diagram
WIRING DIAGRAM (US/AUS) SEQUENCE NO OF EXPLODE DIAGRAM WILL BE MARKED ON REF. COLUMN OF BOM LIST... -
Page 6: Packing Diagram
PACKING DIAGRAM... - Page 7 PACKING DIAGRAM (AUS)
- Page 8 BAGL-40A Clip BAGL-55A CABLE CLIP 55L BASP0105263 Tube CA040218002 Usb Cable 1.8M A/B Black CN0620002009 Flat Cable Multicolored 6Pin Pitch 2.0mm Single Row Length 200mm EVA1504460 EVA1504467 EVA Adhesive EVA1504478 EVA(T=0.5mm) FFC3005000501 FFC 30Pin Pitch:0.5mm Length:50mm FFC4005001501 FFC 40Pin Pitch 0 .5mm Length 1 50mm ：...
- Page 9 PU008008025 Conductive Foam RU1504370 Rubber Pad RU1530608 Rubber Foot SC0308RBNI Screw M3X8 PRN Tapping SC0310BIBI SCREW M3X10 PBB SC0310RBBI Screw M3X10 PPB Tapping SC2608RBZI SCREW M2.6X8 PPC TAPPING SC3514PBBI SCREW M3.5X14 PBB TAPPING TFTVT043ALN05T0 TFT4.3 吋 VT043A-LN05-T01B 480*272 Pix 6 O'clock TW49701AYAH0101 Key Board Assembly...
- Page 10 R231,233,235,237,239,241,244,340 RS010K10F03 RES 10K 1% SMD 0603 R2,4,6,10,15,220,222,243,268 RS05R110F03 RES 5.1 1% SMD 0603 RS1K8710F03 RES 1.87K 1% SMD 0603 RS4K7510F03 RES 4.75K 1% SMD 0603 R24,160 TE591271001 Pin Header 180° Pitch:1.27mm Dual Row 5Pin*2 SMD TE682000501 Pin Header 90° Pitch:2.0mm Single Row 5 Pin SMD UH160808T-600Y BEAD 60 @100MHz 3A ±25% 0603...
- Page 11 AL4-02-0007 Jack 1/4 Stereo 7-Pin Fem Mini W/Grnd J13,14 Lug Straight AL4-08-0402 Con USB 4-Pin Female PC-MNT Horizontal AL4-14-0116 CONNECTOR 6P DIL J15,16 AL4-15-0004 Connector 4P 2.54 180° J11,12 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO C5,6,103,104 CS103K2502X7R CCAP SMD 0.01UF/25V 10% 0402 X7R C114,117~120 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R...
- Page 12 RS820K10F03 RES 820K 1% SMD 0603 R296 RS82K510F03 RES 82.5K 1% SMD 0603 R334 SWSFPD19A605 Switch Push 2P2T Dual Row Lock TE10200502 Connector (5P Socket)180° TE962542001 Terminal 20P 2.54mm UHMLPS-4018-4R7 INDUCTOR 4.7uH 1.7A ±20% SMD 4*4*T1.8mm 3 L2~4 UHSQD105T-751 Common Inductor 700 ±35% 10.3X8mm TWPC13A04101 TOP Left PCB Assembly PC13A041...
- Page 13 ADW1 – A dvance49 T esting P rocedure Equipment L ist: 1. USB C able 2. 5 P in D IN M IDI C able 3.
- Page 14 o Press t he “ MIDI J ack u ntested” b utton. I f t he M IDI j acks a re determined t o b e f unctional, t his b utton w ill t urn g reen(you s hould move ...
- Page 15 12. Pad T est o Strike e ach p ad w ith y our f inger. Y ou s hould n ot ‘ Pound’ o n t he p ads. o Each ...
- Page 16 1000pF C23 1000pF C24 1000pF C25 1000pF C26 1000pF C27 1000pF C28 1000pF C29 1000pF C30 1000pF C31 LCD_VSYNC LCD_HSYNC...
- Page 18 UPPER KEYS LOWER KEYS 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) 4.75k(DNS) VBAT VSS_3 VSS_2 VDDA VSS_1 VDD_1 VSSA VDD_2 VDD_3...
- Page 19 VV V V V...
- Page 21 V V + + -...
- Page 24 LED54 R122 LED23 33.2 R131 LED24 33.2 R132 LED25 R133 LED53 R123 LED26 33.2 R134 LED27 33.2 R135 LED28 R136 LED52 R124 LED29 33.2 R137 LED30 R138 33.2 LED31 R139 LED51 R125 LED32 33.2 R140 LED33 33.2 R141 LED34 R142 LED50 R126 LED35...
- Page 25 VV V V V...
- Page 27 LED9 SW30 LED10 SW29 LED11 SW28 LED6 SW31 LED12 LED5 SW27 SW32 LED13 SW26 LED14 SW25 LED15 SW24 LED16 SW23 LED17 SW22 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k 4.75k...
