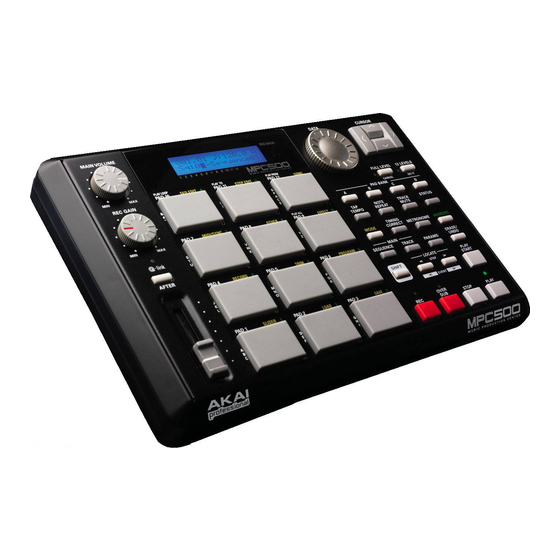

Akai MPC-500 Service Manual

Specification
General
Display:
Memory card slot:
Dimensions:
Weight:
Power requiremtn:
Battery life:
Sound Generator
Sampling rate:
Memory capacity:
Recording time:
Memory expansion slot:
Data format:
Polyphony:
Dynamic filtering:
Preset sound memory:
Number of programs:
Effects
Effects:
Effect type:
Master effect:
Sequencer
Maximum events:
Resolution:
Sequences:
Tracks per sequence:
MIDI output channels:
Song mode:
Drum pad:
Drum pad banks:
Sync mode:
Inputs/Outputs
Record input (L and R):
Max. Input level:
Stereo output (L and R):
Max. Output level:
Phones output:
MIDI inputs:
MIDI outputs:
USB:

Data Compatibility

MPC1000:
MPC2000/2000XL:
MPC2500:
MPC4000:
MPC3000:
Z4/Z8:
S5000/6000:
SERVICE MANUAL
MODEL : MPC500 (AKAI)
2 x 16 charatec LCD w/back light
Compact Flash (The size of the compact flash card that MPC500 can handle if from 32MB to 2 GB)
266mm x 175mm x 44mm
1.34kg
12v DC 600mA (negative tip)
Approximately 4.5 hour of continuous use with LCD backlight
44.1kHz
16MB standard (11.5MB for sound memory), expandable to 128MB
136sec. (16MB, MONO) ; 24M28sec. (128MB,MONO)
1 x for optional EXM128
16-bit linear
up to 32 (dependent on processing)
2-pole lowpass filter per voice
5MB
24
2 stereo effects and Master effect
Chorus, Flanger, Bit grunger, 4 band EQ, Compressor, phase shifter, Tremolo, Flying pan, Reverb, Delay
4 band EQ, Compressor
100,000 notes
96 parts per 1/4-note
99
48
16
20 songs, 250 steps per song
12 (velocity and pressure sensitive)
4
MIDI clock
1/4-inch stereo phone x 2, pseudo balanced + 11dBu, input impedance 9k ohm
+10dBu
1/4-inch phone x 2 pseudo balanced + 11dBu, output impedance 1k Ohms,
+5 dBu
1/4-inch stereo phone x 1, 200mW / 100 ohms
1 x 5-pin DIN
1 x 5-pin DIN
Slave connector x 1, USB MASS STORAGE CLASS support
(Windows 2000/ME/XP or later version, or Mac OS 9.x/10.x or later version)
SEQ, WAV, PGM
SEQ, WAV, SND, PGM (Most parameters of PGM file can be loaded)
SEQ, WAV, PGM
SEQ, WAV, PGM (DRUM program only. Only note assign and tune are loaded)
SND (THRU Computer)
WAV, PGM (DRUM program only. Only note assign and tune are loaded)
WAV only (THRU Computer)
