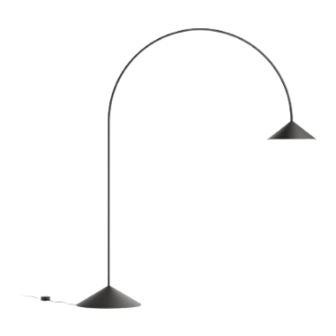

Summary of Contents for VIBIA Victor Carrasco Out 4270

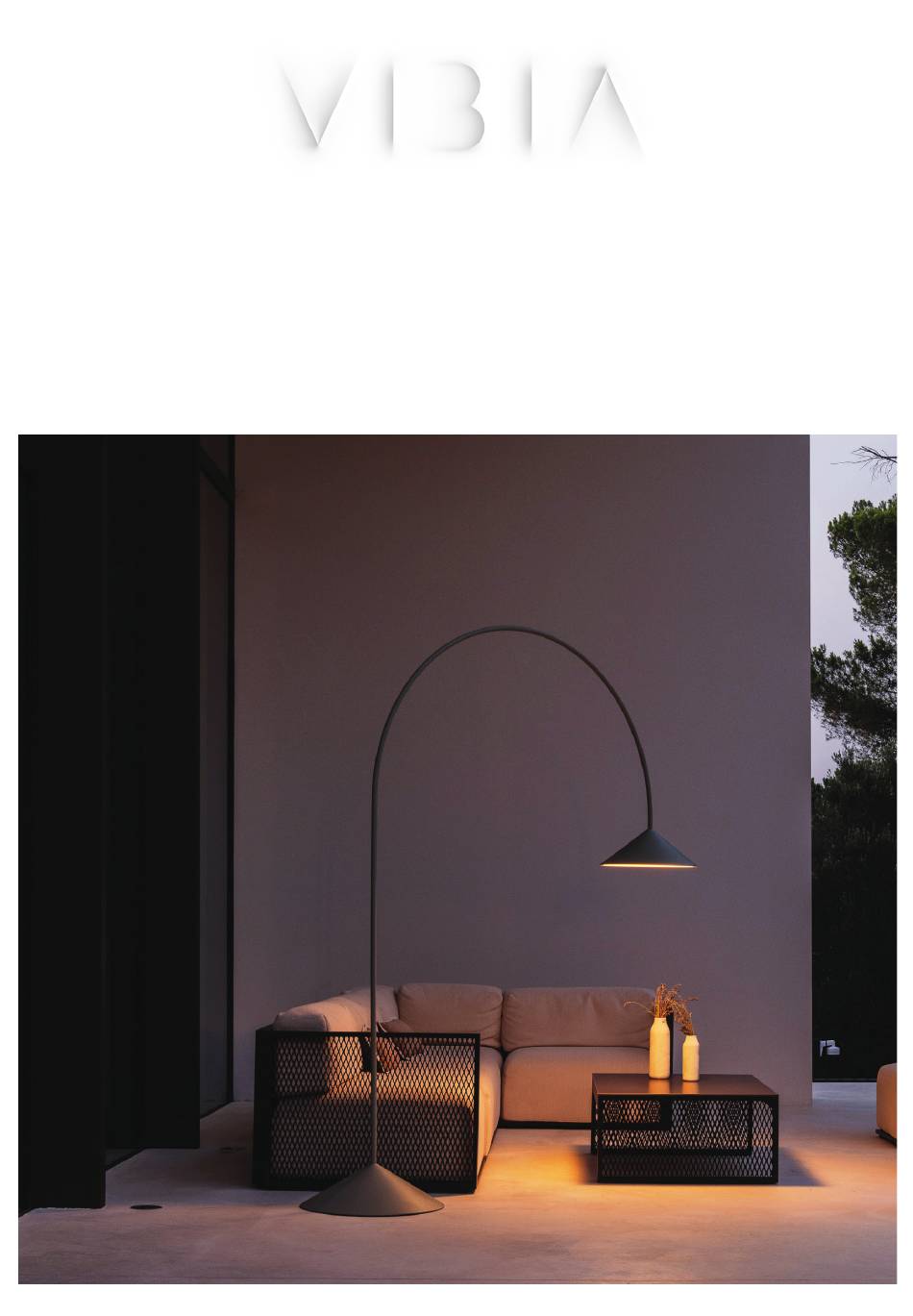

- Page 1 Assembly instructions / Instrucciones de montaje / Montageanleitung Istruzioni di montaggio / Instructions de montage Design by Victor Carrasco Version E01...
- Page 2 - Die Leuchte nicht get technical assistance para futuras consultas. il manuale prima di l'installation du auseinanderbauen, contact VIBIA. Any - No desmonte, iniziare l'installazione luminaire. Sauvegardez baulich ändern oder change or modification modifique, ni intente dell'apparecchio. Salva ces instructions pour reparieren.
- Page 3 Index / Índice / Index / Indice / Index Step 1 Product Spec Sheet Step 2 Supplied Materials Step 3 Installation Preparation Step 4 Electrical Connection Step 5 Product Assembly Step 6 Adjustments & Maintenance 3/20...
- Page 4 Step 1/6 Product Spec Sheet Technical specifications / Especificaciones técnicas / Technische Daten Specifiche tecniche / Caractéristiques techniques 4275 Net Weight / Peso Neto / Netto-Gewicht 48 kg 1 x LED 12,4W 700mA IP65 220-240V 50/60 Hz Peso netto / Poids net 4275 IP65 220-240V...
- Page 5 Step 2/6 Supplied Materials Supplied material / Material suministrado / Geliefertes Material Materiale incluso / Matériel fourni 4275 1. Tools / Herramientas / Werkzeug / Strumenti / Outils 3 un. 2. O-Ring / Junta tórica / O-Ring / O-Ring / Joint torique 3 un.
- Page 6 Step 3/6 Installation Preparation Dimensions / Dimensiones / Abmessungen / Dimensioni / Mesures 4270 4275 155 cm 155 cm 29 cm Máx. 400 cm Electric Point 6/20...
- Page 7 Step 3/6 Installation Preparation 29 cm 7/20...
- Page 8 Step 3/6 Installation Preparation ANCHOR BOLT OPTION - Leveling screws - Tornillos para nivelar - Nivellierschrauben - Viti di livellamento - Vis de mise à niveau - Nuts (not supplied) - Tuercas (no suministrados) - Mutter (nicht im Lieferumfang) - Dadi (non incluse) - Écrou (non fournies) CONCRETE SCREWS OPTION - Leveling screws...
- Page 9 Step 3/6 Installation Preparation 90º 9/20...
- Page 10 Step 3/6 Installation Preparation 10/20...
- Page 11 Step 4/6 Electrical Connection 4.2A DALI DIMMING SYSTEM CONNECTION 4.3A - Only for product references ending in 1 - Solo para los productos terminados en 1 - Nur für Produkte, die auf 1 enden - Solo per i prodotti che terminano con 1 - Uniquement pour les produits terminés en 1 POLES Refs.:...
- Page 12 Step 4/6 Electrical Connection CASAMBI CONNECTION WITH REMOTE WATERTIGHT BOX - Only for product references ending in Z - Solo para los productos terminados en Z - Nur für Produkte, die auf Z enden - Solo per i prodotti che terminano con Z - Uniquement pour les produits terminés en Z - Electric cable (not supplied) - Cable eléctrico (no suministrados)
- Page 13 Step 4/6 Electrical Connection 4.2B Max. 9 mts. of cable C A S A M Refs.: 4275__/1Z 4275__/1Z POLES 13/20...
- Page 14 Step 4/6 Electrical Connection 4.3B C A S A M - Only for product references ending in Z - Solo para los productos terminados en Z - Nur für Produkte, die auf Z enden - Solo per i prodotti che terminano con Z - Uniquement pour les produits terminés en Z 4.4B CLOSED...
- Page 15 Step 5/6 Product Assembly - O-Ring - Junta tórica - O-Ring - O-Ring - Joint torique 15/20...
- Page 16 Step 5/6 Product Assembly - O-Ring - Junta tórica - O-Ring - O-Ring - Joint torique Click , click click... 16/20...
- Page 17 Step 6/6 Adjustments & Maintentance - Leveling screws - Tornillos para nivelar - Nivellierschrauben - Viti di livellamento - Vis de mise à niveau 17/20...
- Page 18 cambio pantalla Step 6/6 Adjustments & Maintentance Lampshade replacement / Cambiabilidad de la pantalla / Austausch des schirms / Ricambio del shermo / Remplacement de l'abat-jour 18/20...
- Page 19 Step 6/6 Adjustments & Maintentance 19/20...
- Page 20 Verbindung stata acquistata. l’avez acheté. bei dem Sie die Leuchte bezogen haben. VASELINE - VASELINA - WAZELINE Vibia Lighting, S.L.U. 7 gr. Spain & Portugal T. +34 934 796 970 International T. +34 934 796 971 customer.service@vibia.com www.vibia.com...
