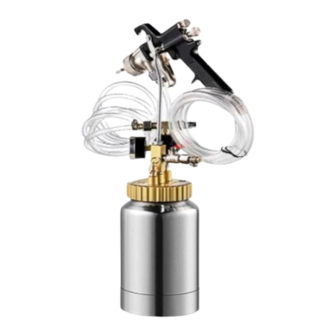

POWDER COATING MACHINE
USER MANUAL
We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price",
or any other similar expressions used by us only represent an estimate of savings you might
benefit from buying certain tools with us compared to the major top brands and do not
necessarily mean to cover all categories of tools offered by us. You are kindly reminded to
verify carefully when placing an order with us if you are saving half in comparison with the top
major brands.
Advertisement
Related Manuals for VEVOR JY-SS2L
Summary of Contents for VEVOR JY-SS2L

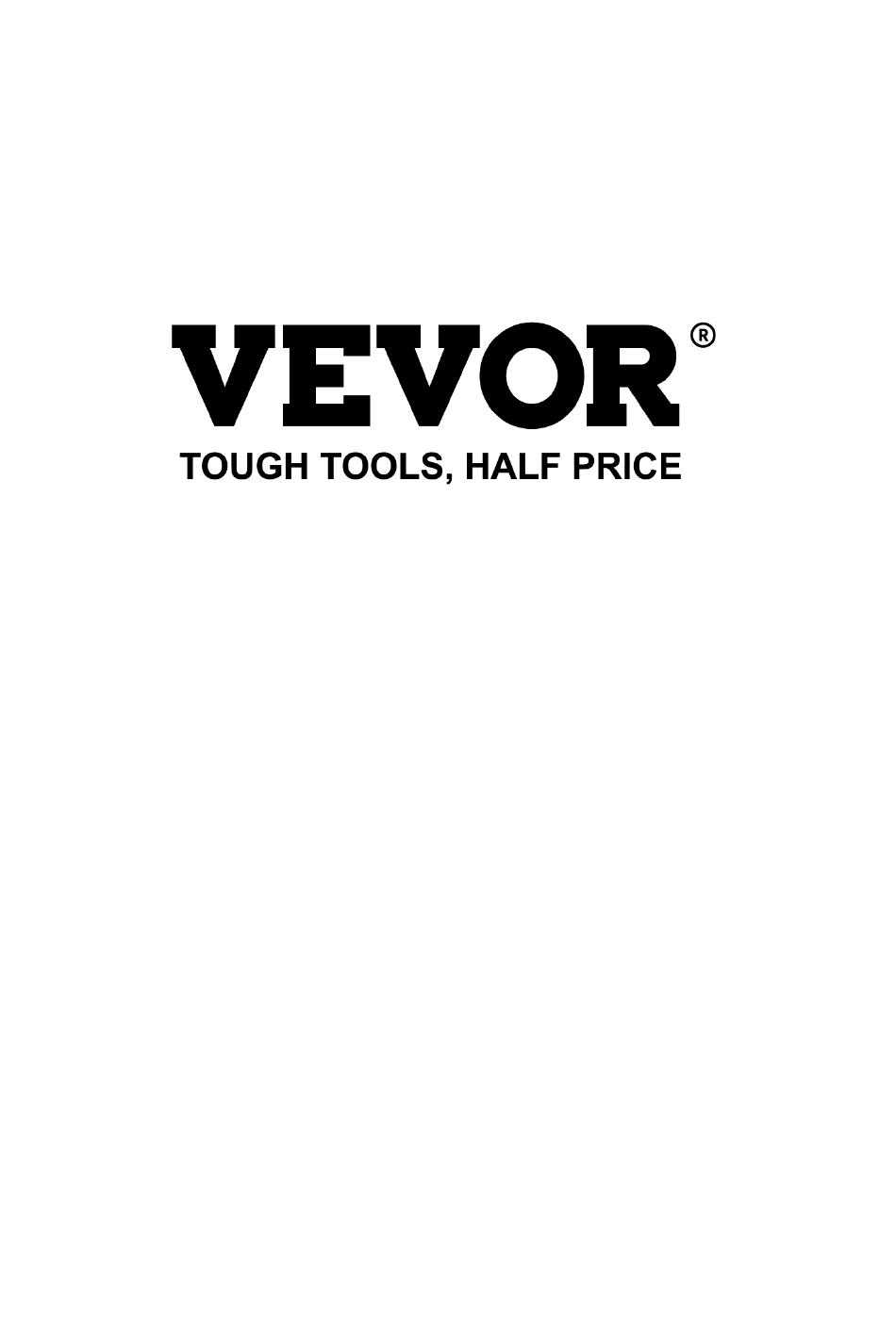

- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support POWDER COATING MACHINE USER MANUAL We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software...
-
Page 3: Assembly Precautions
SAFETY INSTRUCTION AND PRECAUTIONS WARNING: Read this material before using this product. Failure to do so can result in serious injury. Assembly precautions 1.Assemble only according to these instructions. Improper assembly can create hazards. 2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly. - Page 4 6. Inspect before every use; do not use if parts are loose or damaged. 7. Is strictly forbidden to pour strong acidic and alkaline liquid into this product to avoid corrosive tank and cause personal injury. 1. Schematic diagram of JY-SS2L 2L parts...
- Page 5 serial number name quantity 2L jug body 2L lid Gasket Suction tube relief valve Hexagonal paint export Air intake fittings Outlet valve handle Intake tee connector Pressure regulator Pressure gauge Connection header slipknot Discharge valve Sprayers Air supply transparent tube Transparent tube for feeding...
- Page 6 2. List of user thread specifications Serial number SKU name valve Thread specifications Air intakes American style 1/4" self-locking quick plug tubing fitting Air outlet (including American 1/4", threaded North American opening and closing NPS, 18 teeth Standards valve) Discharge port (with American 1/4", threaded opening and closing NPS, 18 teeth...
- Page 7 3. preface： This 2L paint pot is composed of air pressure regulating valve, kettle body, cap, safety valve and sprayer. All parts are made of good materials, and after strict quality control, the appearance of the pot body is polished, and the lid is painted by spray paint, so it can achieve the purpose of durability.
- Page 8 3. Cover the 2L lid (2), tighten the lid clockwise, there must be no loose phenomenon, to ensure safety. 4. The handle (9) is attached to the top of the hex paint outlet on the lid (6) while locking the nut on the handle. 5.
- Page 9 6. The sprayer (16) is connected to the transparent feeding pipe (18), and the other end of the transparent feeding pipe is connected to the discharge valve (15). 7. Adjust the intake regulator (11), rotate clockwise to adjust to the required working pressure, if you need to reduce the pressure in the pot, rotate in a counterclockwise direction.
- Page 10 adjust the feeding copper ball valve, close the air volume adjustment knob under the handle of the sprayer, close the spray amplitude adjustment knob above the sprayer, and pull the sprayer switch to observe the discharge of the sprayer head. 10.
- Page 11 Package Size 350x230x145mm G.W. 2.2KG Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: VEVOR STORE INC, 9448 RINCHMOND PL #E RANCHO CUCAMONGA, California, 91730 United States of America...
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
