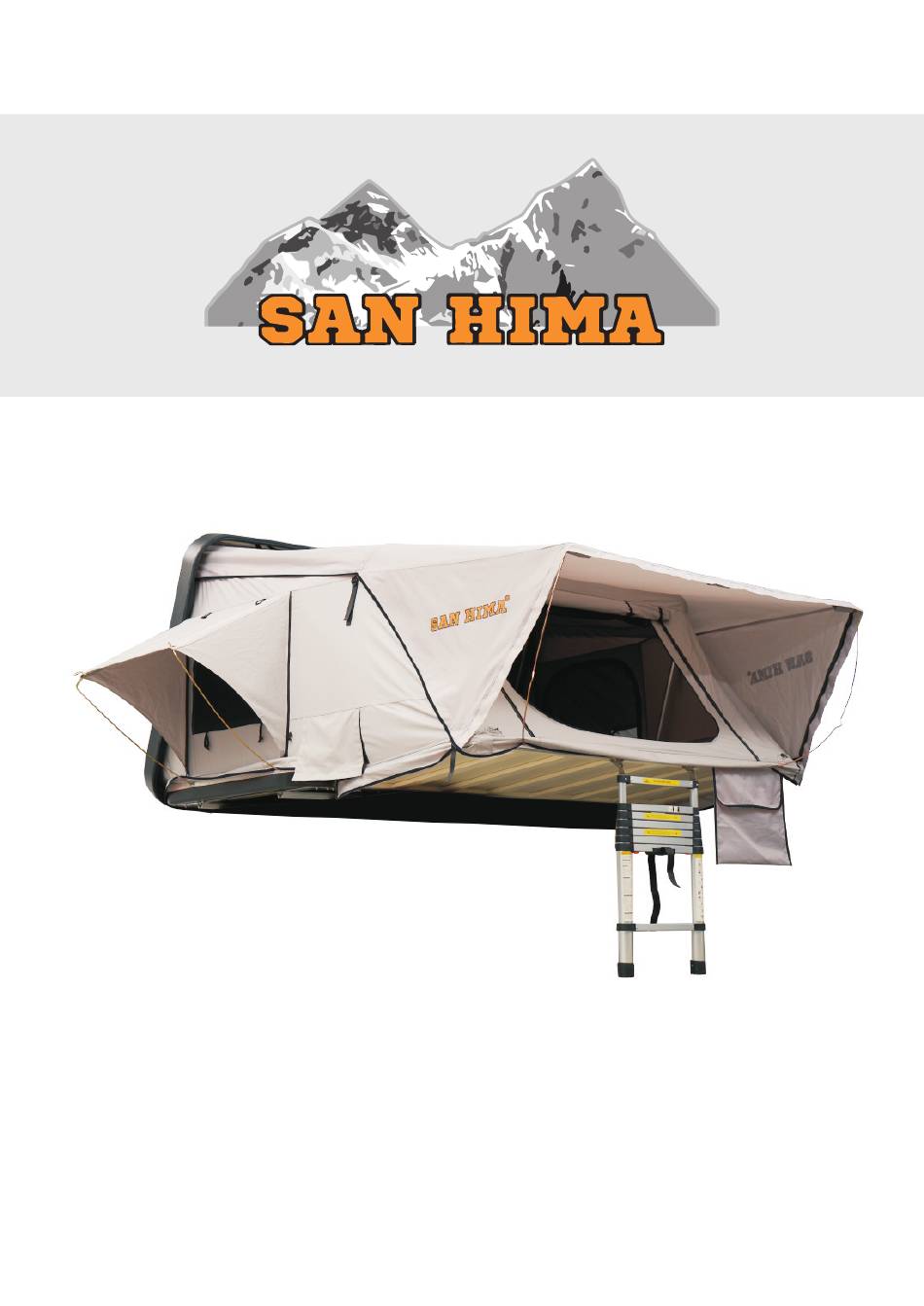

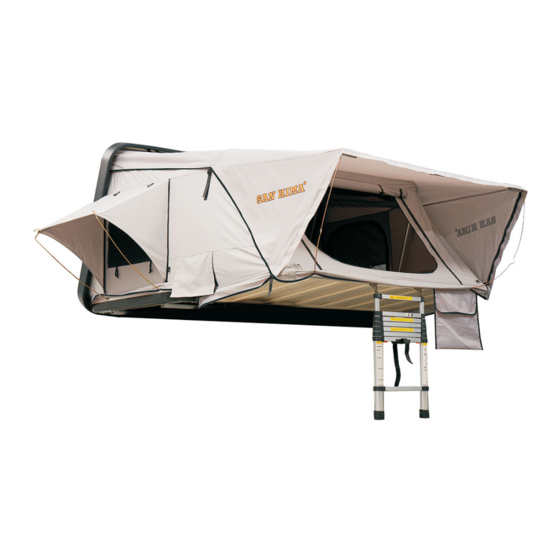

- Page 1 ROOFTOP TENT USER MANUAL SH-TENT-GRAY-HS03 Please read this manual carefully before installation, and retain it for future reference. V1.0...
-
Page 2: Table Of Contents
At San Hima, we have wild souls and we are committed to designing products that are tough enough to take on any adventures and at the same time, making them safe and easy to use. These values in our conviction are what drive us to make innovations. -
Page 3: Important Information
San Hima recommends that you should NOT transport your rooftop tent over 100km/h and that you adhere to speed limits. With the San Hima rooftop tent, you should measure the overall height of your vehicle with the tent fitted as you will need this information to decide if the vehicle can enter carparks, etc. - Page 4 NEVER leave the tent open for a long time where insects, rodents, or moisture could occur, and regularly inspect your tent for damage and check hardware for signs of rust. Keep children away from a stored tent, and ensure it can't be tipped over accidentally. Be aware of low entrances, low hanging branches, and other hazards that could damage your roof top tent or vehicle.
-
Page 5: Parts List
PARTS LIST 1 PC(s) San Hima Rooftop Tent 1 PC(s) Telescopic Ladder 4 PC(s) 4-Hole Mount Plates 8 PC(s) Sliders 8 PC(s) M8*55 Screws 2 PC(s) Wrenchers 4 PC(s) Channel End Caps 2 PC(s) Bungees 2 PC(s) Fiberglass Rods 6 PC(s) Window Rods... -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS FITTING TO THE ROOF RACK OR CROSSBAR 1. With assistance, carefully lift your rooftop tent and place it onto the top of the roof racks or crossbars of your vehicle and ensure that the mounting channels are perpendicular to the racks or bars they will be mounted to, and that the tent is centered on the roof rack. - Page 7 SET UP YOUR ROOFTOP TENT & LADDER OPERATION Unlock the fastening buckle and release the roof. With your hand push up the hard shell, just give the tent a light push, then the gas struts will open the rest of the tent on its own. Once the top has fully opened, reach up and grab the base of the ladder.
- Page 8 CLOSING THE HARD SHELL Remove rainfly rods from the canopy. Retract the ladder, starting with the bottom steps. Make sure to depress the buttons with your thumbs and be careful not to get your hand caught between rungs. Then secure the ladder with included strap. Using the ladder, push the tent base up and then push both the base and the ladder into the tent.
-
Page 9: Care And Maintenance
CARE AND MAINTENANCE The San Hima rooftop tent is designed to be a reliable companion on your adventures. In order to keep it performing at its best, San Hima recommends some care and maintenance steps that will help prolong its life. -
Page 10: Warranty
San Hima rooftop tent that is correctly installed on the vehicle for which it is intended. San Hima will either replace the product or provide you with a refund at our discretion provided that the fault is found to have been caused by a design or manufacturing defect that results in its failure to perform correctly as described.
